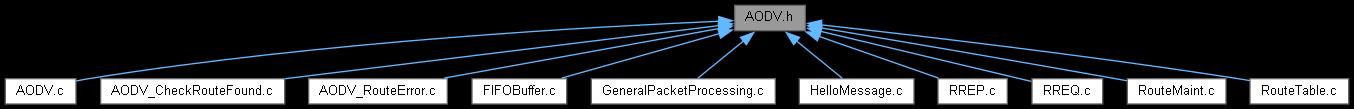

This graph shows which files directly or indirectly include this file:

Data Structures
struct	stru_NetSim_AODV_RREQ

struct	stru_NetSim_AODV_RREP

struct	stru_NetSim_AODV_RERR

struct	stru_NetSim_AODV_RREP_ACK

struct	stru_NetSim_AODV_PrecursorsList

struct	stru_NetSim_AODV_RouteTable

struct	stru_AODV_FIFO

struct	stru_AODV_RREQ_Seen_Table
	Structure of RREQ Seen Table in which entry is made of the RREQ received. More...

struct	stru_AODV_RREQ_Sent_Table
	Structure of RREQ sent Table in which entry of RREQ sent is made. More...

struct	stru_AODV_Metrics
	Stucture for AODV Metrics. More...

struct	stru_AODV_DeviceVariable

Macros
#define	AODV_ACTIVE_ROUTE_TIMEOUT 3000* MILLISECOND

#define	AODV_ALLOWED_HELLO_LOSS 2

#define	AODV_BLACKLIST_TIMEOUT AODV_RREQ_RETRIES * AODV_NET_TRAVERSAL_TIME

#define	AODV_DELETE_PERIOD K * max (AODV_ACTIVE_ROUTE_TIMEOUT, AODV_HELLO_INTERVAL)

#define	K 5

#define	AODV_HELLO_INTERVAL 1000* MILLISECOND

#define	AODV_LOCAL_ADD_TTL 2

#define	AODV_MAX_REPAIR_TTL 0.3 * AODV_NET_DIAMETER

#define	AODV_MIN_REPAIR_TTL

#define	AODV_MY_ROUTE_TIMEOUT (2 * AODV_ACTIVE_ROUTE_TIMEOUT)

#define	AODV_NET_DIAMETER 35

#define	AODV_NET_TRAVERSAL_TIME 2 * AODV_NODE_TRAVERSAL_TIME * AODV_NET_DIAMETER

#define	AODV_NEXT_HOP_WAIT AODV_NODE_TRAVERSAL_TIME + 10

#define	AODV_NODE_TRAVERSAL_TIME 40 * MILLISECOND

#define	AODV_PATH_DISCOVERY_TIME 2 * AODV_NET_TRAVERSAL_TIME

#define	AODV_RERR_RATELIMIT 10

#define	AODV_RING_TRAVERSAL_TIME(ttl) 2 * AODV_NODE_TRAVERSAL_TIME *(ttl + AODV_TIMEOUT_BUFFER)

#define	AODV_RREQ_RETRIES 2

#define	AODV_RREQ_RATELIMIT 10

#define	AODV_TIMEOUT_BUFFER 2

#define	AODV_TTL_START 1

#define	AODV_TTL_INCREMENT 2

#define	AODV_TTL_THRESHOLD 7

#define	AODV_RREQ_SIZE_IPV4 24
	AODV route request size in bytes. More...

#define	AODV_RREQ_SIZE_IPV6 72

#define	AODV_RREQ_SIZE(dev) DEVICE_NWPROTOCOL(dev,1) == NW_PROTOCOL_IPV4 ? AODV_RREQ_SIZE_IPV4:AODV_RREQ_SIZE_IPV6

#define	AODV_RREP_SIZE_IPV4 20
	AODV route reply size in bytes. More...

#define	AODV_RREP_SIZE_IPV6 56

#define	AODV_RREP_SIZE(dev) DEVICE_NWPROTOCOL(dev,1) == NW_PROTOCOL_IPV4 ? AODV_RREP_SIZE_IPV4:AODV_RREP_SIZE_IPV6

#define	AODV_RERR_SIZE_FIXED 4
	AODV route error size in bytes. More...

#define	AODV_PACKET_PROCESSING() fn_NetSim_AODV_GeneralPacketProcessing(pstruEventDetails)

#define	AODV_CHECK_ROUTE_FOUND(destIP) fn_NetSim_AODV_CheckRouteFound(destIP,pstruEventDetails)

#define	AODV_ADD_TO_FIFO(packet, fifoBuffer, time) fn_NetSim_AODV_AddToFIFOBuffer(packet,fifoBuffer,time)

#define	AODV_GEN_RREQ() fn_NetSim_AODV_GenerateRREQ(pstruEventDetails)

#define	AODV_RETRY_RREQ() fn_NetSim_AODV_RetryRREQ(pstruEventDetails)

#define	AODV_PROCESS_RREQ() fn_NetSim_AODV_ProcessRREQ(pstruEventDetails)

#define	AODV_INSERT_ROUTE_TABLE(ip, seq, hopcount, nexthop, lifeTime) fn_NetSim_AODV_InsertInRouteTable(ip,seq,hopcount,nexthop,lifeTime,pstruEventDetails)

#define	AODV_INSERT_PRECURSOR(ip) fn_NetSim_AODV_InsertInPrecursorsList(ip,pstruEventDetails)

#define	AODV_FORWARD_RREQ() fn_NetSim_AODV_ForwardRREQ(pstruEventDetails)

#define	AODV_GENERATE_RREP() fn_NetSim_AODV_GenerateRREP(pstruEventDetails)

#define	AODV_TRANSMIT_FIFO(devVar) fn_NetSim_AODV_TransmitFIFOBuffer(devVar,pstruEventDetails)

#define	AODV_PROCESS_RREP() fn_NetSim_AODV_ProcessRREP(pstruEventDetails)

#define	AODV_FORWARD_RREP() fn_NetSim_AODV_ForwardRREP(pstruEventDetails)

#define	AODV_FIND_NEXT_HOP(devVar, dest) fn_NetSim_AODV_FindNextHop(devVar,dest,pstruEventDetails)

#define	AODV_GENERATE_RREP_BY_IN() fn_NetSim_AODV_GenerateRREPByIntermediate(pstruEventDetails)

#define	AODV_TRANSMIT_HELLO() fn_NetSim_AODV_TransmitHelloMessage(pstruEventDetails)

#define	AODV_UPDATE_ROUTE_TABLE(ip, lifetime) fn_NetSim_AODV_UpdateRouteTable(ip,lifetime,pstruEventDetails)

#define	AODV_ACTIVE_ROUTE_TIMEOUT_EVENT() fn_NetSim_AODV_ActiveRouteTimeout(pstruEventDetails)

#define	AODV_GENERATE_RERR(DevId, UnreachableIP) fn_NetSim_AODV_GenerateRERR(DevId,UnreachableIP,pstruEventDetails)

#define	AODV_PROCESS_RERR() fn_NetSim_AODV_ProcessRERR(pstruEventDetails)

#define	AODV_DEV_VAR(devId) ((AODV_DEVICE_VAR*)NETWORK->ppstruDeviceList[devId-1]->pstruNetworkLayer->RoutingVar)

#define	AODV_METRICS_VAR(devId) (AODV_DEV_VAR(devId)->aodvMetrics)

#define	FIFO_ALLOC() (AODV_FIFO*)list_alloc(sizeof(AODV_FIFO),offsetof(AODV_FIFO,ele))

#define	RREQSEENTABLE_ALLOC() (AODV_RREQ_SEEN_TABLE*)list_alloc(sizeof(AODV_RREQ_SEEN_TABLE),offsetof(AODV_RREQ_SEEN_TABLE,ele))

#define	RREQSENTTABLE_ALLOC() (AODV_RREQ_SENT_TABLE*)list_alloc(sizeof(AODV_RREQ_SENT_TABLE),offsetof(AODV_RREQ_SENT_TABLE,ele))

#define	ROUTETABLE_ALLOC() (AODV_ROUTETABLE*)list_alloc(sizeof(AODV_ROUTETABLE),offsetof(AODV_ROUTETABLE,ele))

Typedefs
typedef enum enum_AODV_Ctrl_Packet	AODV_CONTROL_PACKET

typedef struct stru_AODV_Primitives	AODV_PRIMITIVES

typedef struct stru_NetSim_AODV_RouteTable	AODV_ROUTETABLE

typedef struct stru_AODV_FIFO	AODV_FIFO

typedef struct stru_AODV_DeviceVariable	AODV_DEVICE_VAR

typedef struct stru_AODV_RREQ_Seen_Table	AODV_RREQ_SEEN_TABLE

typedef struct stru_AODV_RREQ_Sent_Table	AODV_RREQ_SENT_TABLE

typedef struct stru_NetSim_AODV_PrecursorsList	AODV_PRECURSORS_LIST

typedef struct stru_AODV_Metrics	AODV_METRICS

typedef struct stru_NetSim_AODV_RREQ	AODV_RREQ

typedef struct stru_NetSim_AODV_RREP	AODV_RREP

typedef struct stru_NetSim_AODV_RERR	AODV_RERR

Enumerations
enum	enum_AODV_Ctrl_Packet { AODVctrlPacket_RREQ =NW_PROTOCOL_AODV*100+1 , AODVctrlPacket_RREP , AODVctrlPacket_RERR }

enum	AODV_SUB_EVENT { AODVsubevent_RREQ_TIMEOUT =NW_PROTOCOL_AODV*100+1 , AODVsubevent_TRANSMIT_HELLO , AODVsubevent_ACTIVE_ROUTE_TIMEOUT }

enum	AODV_RoutingFlag { AODV_RoutingFlag_Valid , AODV_RoutingFlag_InValid , AODV_RoutingFlag_Repairable , AODV_RoutingFlag_beingRepaired }

Functions

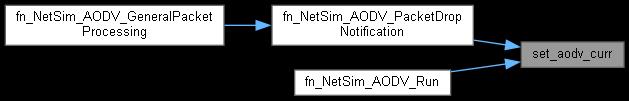

void	set_aodv_curr ()

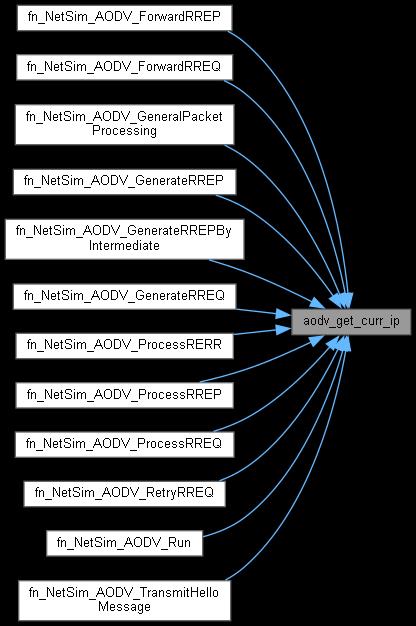

NETSIM_IPAddress	aodv_get_curr_ip ()

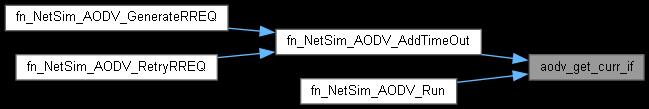

NETSIM_ID	aodv_get_curr_if ()

NETSIM_IPAddress	aodv_get_dev_ip (NETSIM_ID d)

bool	isAodvConfigured (NETSIM_ID d, NETSIM_ID in)

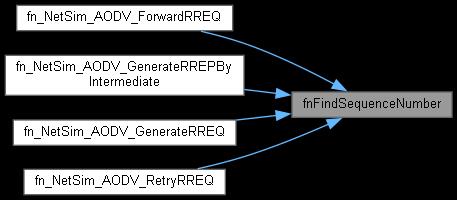

unsigned int	fnFindSequenceNumber (AODV_DEVICE_VAR *devVar, NETSIM_IPAddress ip)

int	fnEmptyFIFOBuffer (AODV_DEVICE_VAR *devVar, NETSIM_IPAddress dest)

AODV_ROUTETABLE *	fnFindRouteTable (AODV_ROUTETABLE *table, NETSIM_IPAddress dest)

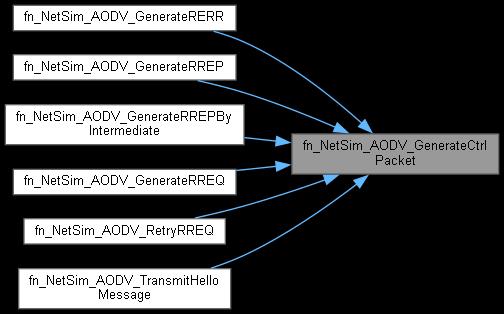

NetSim_PACKET *	fn_NetSim_AODV_GenerateCtrlPacket (NETSIM_ID src, NETSIM_ID dest, NETSIM_ID recv, double dTime, AODV_CONTROL_PACKET type)

int	fn_NetSim_AODV_InsertInRouteTable (NETSIM_IPAddress ip, unsigned int seqNumber, unsigned int hopCount, NETSIM_IPAddress nextHop, double lifeTime, NetSim_EVENTDETAILS *pstruEventDetails)

int	fn_NetSim_AODV_TransmitFIFOBuffer (AODV_DEVICE_VAR devVar, NetSim_EVENTDETAILS pstruEventDetails)

int	fn_NetSim_AODV_InsertInPrecursorsList (NETSIM_IPAddress ip, NetSim_EVENTDETAILS *pstruEventDetails)

int	fn_NetSim_AODV_UpdateRouteTable (NETSIM_IPAddress ip, double lifetime, NetSim_EVENTDETAILS *pstruEventDetails)

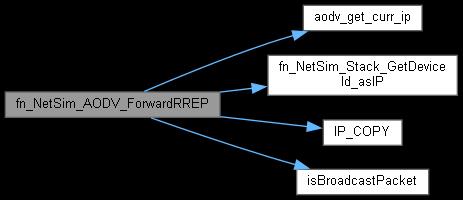

int	fn_NetSim_AODV_ForwardRREP (NetSim_EVENTDETAILS *pstruEventDetails)

bool	fn_NetSim_AODV_CheckRouteFound (NETSIM_IPAddress ip, NetSim_EVENTDETAILS *pstruEventDetails)

NETSIM_IPAddress	fn_NetSim_AODV_FindNextHop (AODV_DEVICE_VAR devVar, NETSIM_IPAddress dest, NetSim_EVENTDETAILS pstruEventDetails)

int	fn_NetSim_AODV_ForwardRREQ (NetSim_EVENTDETAILS *pstruEventDetails)

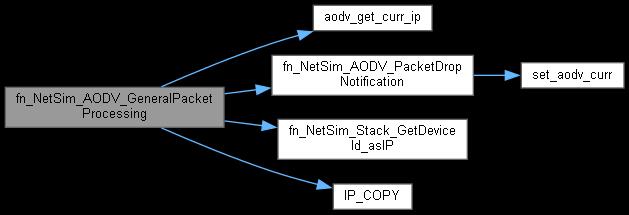

int	fn_NetSim_AODV_GeneralPacketProcessing (NetSim_EVENTDETAILS *pstruEventDetails)

bool	fn_NetSim_AODV_AddToFIFOBuffer (NetSim_PACKET packet, AODV_FIFO *fifoBuffer, double time)

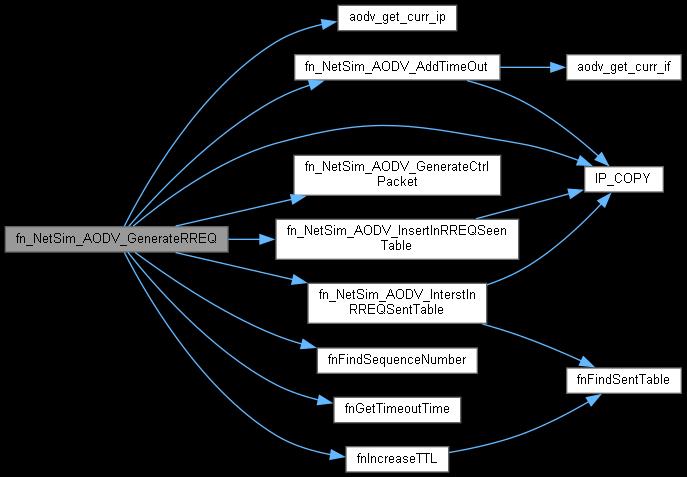

NetSim_PACKET *	fn_NetSim_AODV_GenerateRREQ (NetSim_EVENTDETAILS *pstruEventDetails)

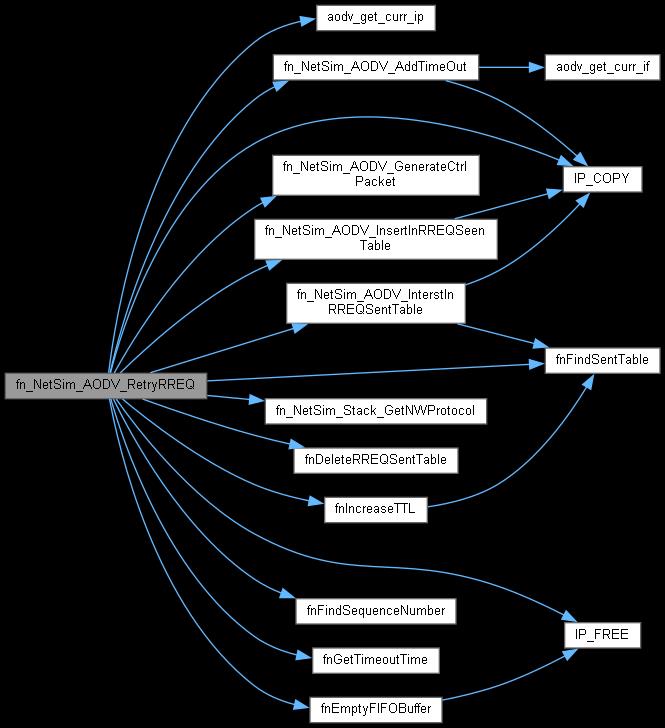

int	fn_NetSim_AODV_RetryRREQ (NetSim_EVENTDETAILS *pstruEventDetails)

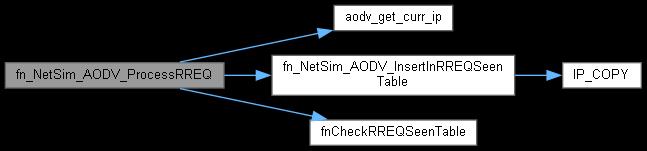

int	fn_NetSim_AODV_ProcessRREQ (NetSim_EVENTDETAILS *pstruEventDetails)

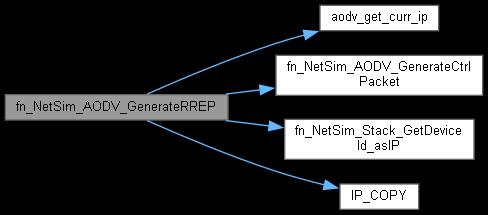

int	fn_NetSim_AODV_GenerateRREP (NetSim_EVENTDETAILS *pstruEventDetails)

int	fn_NetSim_AODV_ProcessRREP (NetSim_EVENTDETAILS *pstruEventDetails)

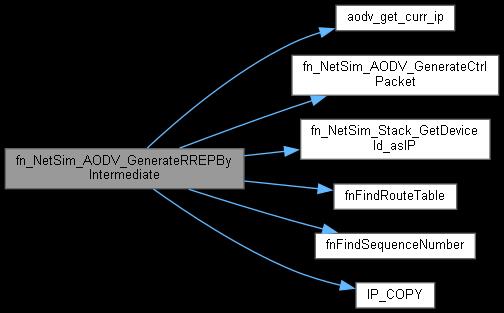

int	fn_NetSim_AODV_GenerateRREPByIntermediate (NetSim_EVENTDETAILS *pstruEventDetails)

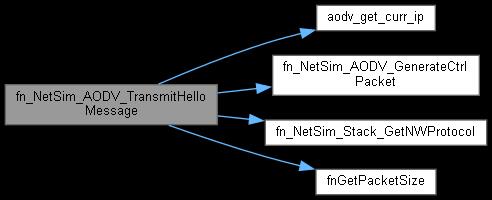

int	fn_NetSim_AODV_TransmitHelloMessage (NetSim_EVENTDETAILS *pstruEventDetails)

int	fn_NetSim_AODV_ReceiveHelloMessage (NetSim_EVENTDETAILS *pstruEventDetails)

int	fn_NetSim_AODV_ActiveRouteTimeout (NetSim_EVENTDETAILS *pstruEventDetails)

int	fn_NetSim_AODV_GenerateRERR (NETSIM_ID nDeviceId, NETSIM_IPAddress UnreachableIP, NetSim_EVENTDETAILS *pstruEventDetails)

int	fn_NetSim_AODV_ProcessRERR (NetSim_EVENTDETAILS *pstruEventDetails)

Macro Definition Documentation

◆ AODV_ACTIVE_ROUTE_TIMEOUT

#define AODV_ACTIVE_ROUTE_TIMEOUT 3000* MILLISECOND

Definition at line 26 of file AODV.h.

◆ AODV_ACTIVE_ROUTE_TIMEOUT_EVENT

#define AODV_ACTIVE_ROUTE_TIMEOUT_EVENT ( ) fn_NetSim_AODV_ActiveRouteTimeout(pstruEventDetails)

Definition at line 408 of file AODV.h.

◆ AODV_ADD_TO_FIFO

#define AODV_ADD_TO_FIFO	(	packet,
		fifoBuffer,
		time
	)	fn_NetSim_AODV_AddToFIFOBuffer(packet,fifoBuffer,time)

Definition at line 393 of file AODV.h.

◆ AODV_ALLOWED_HELLO_LOSS

#define AODV_ALLOWED_HELLO_LOSS 2

Definition at line 27 of file AODV.h.

◆ AODV_BLACKLIST_TIMEOUT

#define AODV_BLACKLIST_TIMEOUT AODV_RREQ_RETRIES * AODV_NET_TRAVERSAL_TIME

Definition at line 28 of file AODV.h.

◆ AODV_CHECK_ROUTE_FOUND

#define AODV_CHECK_ROUTE_FOUND ( destIP ) fn_NetSim_AODV_CheckRouteFound(destIP,pstruEventDetails)

Definition at line 392 of file AODV.h.

◆ AODV_DELETE_PERIOD

#define AODV_DELETE_PERIOD K * max (AODV_ACTIVE_ROUTE_TIMEOUT, AODV_HELLO_INTERVAL)

Definition at line 29 of file AODV.h.

◆ AODV_DEV_VAR

#define AODV_DEV_VAR ( devId ) ((AODV_DEVICE_VAR*)NETWORK->ppstruDeviceList[devId-1]->pstruNetworkLayer->RoutingVar)

Definition at line 413 of file AODV.h.

◆ AODV_FIND_NEXT_HOP

#define AODV_FIND_NEXT_HOP	(	devVar,
		dest
	)	fn_NetSim_AODV_FindNextHop(devVar,dest,pstruEventDetails)

Definition at line 404 of file AODV.h.

◆ AODV_FORWARD_RREP

#define AODV_FORWARD_RREP ( ) fn_NetSim_AODV_ForwardRREP(pstruEventDetails)

Definition at line 403 of file AODV.h.

◆ AODV_FORWARD_RREQ

#define AODV_FORWARD_RREQ ( ) fn_NetSim_AODV_ForwardRREQ(pstruEventDetails)

Definition at line 399 of file AODV.h.

◆ AODV_GEN_RREQ

#define AODV_GEN_RREQ ( ) fn_NetSim_AODV_GenerateRREQ(pstruEventDetails)

Definition at line 394 of file AODV.h.

◆ AODV_GENERATE_RERR

#define AODV_GENERATE_RERR	(	DevId,
		UnreachableIP
	)	fn_NetSim_AODV_GenerateRERR(DevId,UnreachableIP,pstruEventDetails)

Definition at line 409 of file AODV.h.

◆ AODV_GENERATE_RREP

#define AODV_GENERATE_RREP ( ) fn_NetSim_AODV_GenerateRREP(pstruEventDetails)

Definition at line 400 of file AODV.h.

◆ AODV_GENERATE_RREP_BY_IN

#define AODV_GENERATE_RREP_BY_IN ( ) fn_NetSim_AODV_GenerateRREPByIntermediate(pstruEventDetails)

Definition at line 405 of file AODV.h.

◆ AODV_HELLO_INTERVAL

#define AODV_HELLO_INTERVAL 1000* MILLISECOND

Definition at line 31 of file AODV.h.

◆ AODV_INSERT_PRECURSOR

#define AODV_INSERT_PRECURSOR ( ip ) fn_NetSim_AODV_InsertInPrecursorsList(ip,pstruEventDetails)

Definition at line 398 of file AODV.h.

◆ AODV_INSERT_ROUTE_TABLE

#define AODV_INSERT_ROUTE_TABLE	(	ip,
		seq,
		hopcount,
		nexthop,
		lifeTime
	)	fn_NetSim_AODV_InsertInRouteTable(ip,seq,hopcount,nexthop,lifeTime,pstruEventDetails)

Definition at line 397 of file AODV.h.

◆ AODV_LOCAL_ADD_TTL

#define AODV_LOCAL_ADD_TTL 2

Definition at line 32 of file AODV.h.

◆ AODV_MAX_REPAIR_TTL

#define AODV_MAX_REPAIR_TTL 0.3 * AODV_NET_DIAMETER

Definition at line 33 of file AODV.h.

◆ AODV_METRICS_VAR

#define AODV_METRICS_VAR ( devId ) (AODV_DEV_VAR(devId)->aodvMetrics)

Definition at line 414 of file AODV.h.

◆ AODV_MIN_REPAIR_TTL

#define AODV_MIN_REPAIR_TTL

Definition at line 34 of file AODV.h.

◆ AODV_MY_ROUTE_TIMEOUT

#define AODV_MY_ROUTE_TIMEOUT (2 * AODV_ACTIVE_ROUTE_TIMEOUT)

Definition at line 35 of file AODV.h.

◆ AODV_NET_DIAMETER

#define AODV_NET_DIAMETER 35

Definition at line 36 of file AODV.h.

◆ AODV_NET_TRAVERSAL_TIME

#define AODV_NET_TRAVERSAL_TIME 2 * AODV_NODE_TRAVERSAL_TIME * AODV_NET_DIAMETER

Definition at line 37 of file AODV.h.

◆ AODV_NEXT_HOP_WAIT

#define AODV_NEXT_HOP_WAIT AODV_NODE_TRAVERSAL_TIME + 10

Definition at line 38 of file AODV.h.

◆ AODV_NODE_TRAVERSAL_TIME

#define AODV_NODE_TRAVERSAL_TIME 40 * MILLISECOND

Definition at line 39 of file AODV.h.

◆ AODV_PACKET_PROCESSING

#define AODV_PACKET_PROCESSING ( ) fn_NetSim_AODV_GeneralPacketProcessing(pstruEventDetails)

Definition at line 391 of file AODV.h.

◆ AODV_PATH_DISCOVERY_TIME

#define AODV_PATH_DISCOVERY_TIME 2 * AODV_NET_TRAVERSAL_TIME

Definition at line 40 of file AODV.h.

◆ AODV_PROCESS_RERR

#define AODV_PROCESS_RERR ( ) fn_NetSim_AODV_ProcessRERR(pstruEventDetails)

Definition at line 410 of file AODV.h.

◆ AODV_PROCESS_RREP

#define AODV_PROCESS_RREP ( ) fn_NetSim_AODV_ProcessRREP(pstruEventDetails)

Definition at line 402 of file AODV.h.

◆ AODV_PROCESS_RREQ

#define AODV_PROCESS_RREQ ( ) fn_NetSim_AODV_ProcessRREQ(pstruEventDetails)

Definition at line 396 of file AODV.h.

◆ AODV_RERR_RATELIMIT

#define AODV_RERR_RATELIMIT 10

Definition at line 41 of file AODV.h.

◆ AODV_RERR_SIZE_FIXED

#define AODV_RERR_SIZE_FIXED 4

AODV route error size in bytes.

Definition at line 57 of file AODV.h.

◆ AODV_RETRY_RREQ

#define AODV_RETRY_RREQ ( ) fn_NetSim_AODV_RetryRREQ(pstruEventDetails)

Definition at line 395 of file AODV.h.

◆ AODV_RING_TRAVERSAL_TIME

#define AODV_RING_TRAVERSAL_TIME ( ttl ) 2 * AODV_NODE_TRAVERSAL_TIME *(ttl + AODV_TIMEOUT_BUFFER)

Definition at line 42 of file AODV.h.

◆ AODV_RREP_SIZE

#define AODV_RREP_SIZE ( dev ) DEVICE_NWPROTOCOL(dev,1) == NW_PROTOCOL_IPV4 ? AODV_RREP_SIZE_IPV4:AODV_RREP_SIZE_IPV6

Definition at line 56 of file AODV.h.

◆ AODV_RREP_SIZE_IPV4

#define AODV_RREP_SIZE_IPV4 20

AODV route reply size in bytes.

Definition at line 54 of file AODV.h.

◆ AODV_RREP_SIZE_IPV6

#define AODV_RREP_SIZE_IPV6 56

Definition at line 55 of file AODV.h.

◆ AODV_RREQ_RATELIMIT

#define AODV_RREQ_RATELIMIT 10

Definition at line 44 of file AODV.h.

◆ AODV_RREQ_RETRIES

#define AODV_RREQ_RETRIES 2

Definition at line 43 of file AODV.h.

◆ AODV_RREQ_SIZE

#define AODV_RREQ_SIZE ( dev ) DEVICE_NWPROTOCOL(dev,1) == NW_PROTOCOL_IPV4 ? AODV_RREQ_SIZE_IPV4:AODV_RREQ_SIZE_IPV6

Definition at line 53 of file AODV.h.

◆ AODV_RREQ_SIZE_IPV4

#define AODV_RREQ_SIZE_IPV4 24

AODV route request size in bytes.

Definition at line 51 of file AODV.h.

◆ AODV_RREQ_SIZE_IPV6

#define AODV_RREQ_SIZE_IPV6 72

Definition at line 52 of file AODV.h.

◆ AODV_TIMEOUT_BUFFER

#define AODV_TIMEOUT_BUFFER 2

Definition at line 45 of file AODV.h.

◆ AODV_TRANSMIT_FIFO

#define AODV_TRANSMIT_FIFO ( devVar ) fn_NetSim_AODV_TransmitFIFOBuffer(devVar,pstruEventDetails)

Definition at line 401 of file AODV.h.

◆ AODV_TRANSMIT_HELLO

#define AODV_TRANSMIT_HELLO ( ) fn_NetSim_AODV_TransmitHelloMessage(pstruEventDetails)

Definition at line 406 of file AODV.h.

◆ AODV_TTL_INCREMENT

#define AODV_TTL_INCREMENT 2

Definition at line 47 of file AODV.h.

◆ AODV_TTL_START

#define AODV_TTL_START 1

Definition at line 46 of file AODV.h.

◆ AODV_TTL_THRESHOLD

#define AODV_TTL_THRESHOLD 7

Definition at line 48 of file AODV.h.

◆ AODV_UPDATE_ROUTE_TABLE

#define AODV_UPDATE_ROUTE_TABLE	(	ip,
		lifetime
	)	fn_NetSim_AODV_UpdateRouteTable(ip,lifetime,pstruEventDetails)

Definition at line 407 of file AODV.h.

◆ FIFO_ALLOC

#define FIFO_ALLOC ( ) (AODV_FIFO*)list_alloc(sizeof(AODV_FIFO),offsetof(AODV_FIFO,ele))

Definition at line 415 of file AODV.h.

◆ K

#define K 5

Definition at line 30 of file AODV.h.

◆ ROUTETABLE_ALLOC

#define ROUTETABLE_ALLOC ( ) (AODV_ROUTETABLE*)list_alloc(sizeof(AODV_ROUTETABLE),offsetof(AODV_ROUTETABLE,ele))

Definition at line 418 of file AODV.h.

◆ RREQSEENTABLE_ALLOC

#define RREQSEENTABLE_ALLOC ( ) (AODV_RREQ_SEEN_TABLE*)list_alloc(sizeof(AODV_RREQ_SEEN_TABLE),offsetof(AODV_RREQ_SEEN_TABLE,ele))

Definition at line 416 of file AODV.h.

◆ RREQSENTTABLE_ALLOC

#define RREQSENTTABLE_ALLOC ( ) (AODV_RREQ_SENT_TABLE*)list_alloc(sizeof(AODV_RREQ_SENT_TABLE),offsetof(AODV_RREQ_SENT_TABLE,ele))

Definition at line 417 of file AODV.h.

Typedef Documentation

◆ AODV_CONTROL_PACKET

typedef enum enum_AODV_Ctrl_Packet AODV_CONTROL_PACKET

Definition at line 61 of file AODV.h.

◆ AODV_DEVICE_VAR

typedef struct stru_AODV_DeviceVariable AODV_DEVICE_VAR

Definition at line 65 of file AODV.h.

◆ AODV_FIFO

typedef struct stru_AODV_FIFO AODV_FIFO

Definition at line 64 of file AODV.h.

◆ AODV_METRICS

typedef struct stru_AODV_Metrics AODV_METRICS

Definition at line 69 of file AODV.h.

◆ AODV_PRECURSORS_LIST

typedef struct stru_NetSim_AODV_PrecursorsList AODV_PRECURSORS_LIST

Definition at line 68 of file AODV.h.

◆ AODV_PRIMITIVES

typedef struct stru_AODV_Primitives AODV_PRIMITIVES

Definition at line 62 of file AODV.h.

◆ AODV_RERR

typedef struct stru_NetSim_AODV_RERR AODV_RERR

Definition at line 74 of file AODV.h.

◆ AODV_ROUTETABLE

typedef struct stru_NetSim_AODV_RouteTable AODV_ROUTETABLE

Definition at line 63 of file AODV.h.

◆ AODV_RREP

typedef struct stru_NetSim_AODV_RREP AODV_RREP

Definition at line 73 of file AODV.h.

◆ AODV_RREQ

typedef struct stru_NetSim_AODV_RREQ AODV_RREQ

Definition at line 72 of file AODV.h.

◆ AODV_RREQ_SEEN_TABLE

typedef struct stru_AODV_RREQ_Seen_Table AODV_RREQ_SEEN_TABLE

Definition at line 66 of file AODV.h.

◆ AODV_RREQ_SENT_TABLE

typedef struct stru_AODV_RREQ_Sent_Table AODV_RREQ_SENT_TABLE

Definition at line 67 of file AODV.h.

Enumeration Type Documentation

◆ AODV_RoutingFlag

enum AODV_RoutingFlag

Enumerator
AODV_RoutingFlag_Valid
AODV_RoutingFlag_InValid
AODV_RoutingFlag_Repairable
AODV_RoutingFlag_beingRepaired

Definition at line 284 of file AODV.h.

◆ AODV_SUB_EVENT

enum AODV_SUB_EVENT

Enumeration for AODV sub events

Enumerator
AODVsubevent_RREQ_TIMEOUT
AODVsubevent_TRANSMIT_HELLO
AODVsubevent_ACTIVE_ROUTE_TIMEOUT

Definition at line 83 of file AODV.h.

◆ enum_AODV_Ctrl_Packet

enum enum_AODV_Ctrl_Packet

Enumeration for AODV control packets

Enumerator
AODVctrlPacket_RREQ
AODVctrlPacket_RREP
AODVctrlPacket_RERR

Definition at line 76 of file AODV.h.

Function Documentation

◆ aodv_get_curr_if()

NETSIM_ID aodv_get_curr_if ( )

Here is the caller graph for this function:

◆ aodv_get_curr_ip()

NETSIM_IPAddress aodv_get_curr_ip ( )

Here is the caller graph for this function:

◆ aodv_get_dev_ip()

NETSIM_IPAddress aodv_get_dev_ip ( NETSIM_ID d )

Here is the caller graph for this function:

◆ fn_NetSim_AODV_ActiveRouteTimeout()

int fn_NetSim_AODV_ActiveRouteTimeout ( NetSim_EVENTDETAILS * pstruEventDetails )

This function adds the timeout event of a Route Table which is equal to the table_LifeTime

Definition at line 165 of file RouteTable.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_AddToFIFOBuffer()

bool fn_NetSim_AODV_AddToFIFOBuffer	(	NetSim_PACKET *	packet,
		AODV_FIFO **	fifoBuffer,
		double	time
	)

This function adds a packet to the FIFO Buffer

Definition at line 21 of file FIFOBuffer.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_CheckRouteFound()

bool fn_NetSim_AODV_CheckRouteFound	(	NETSIM_IPAddress	ip,
		NetSim_EVENTDETAILS *	pstruEventDetails
	)

This function checks if the route to target is present in Route Table

Definition at line 21 of file AODV_CheckRouteFound.c.

◆ fn_NetSim_AODV_FindNextHop()

NETSIM_IPAddress fn_NetSim_AODV_FindNextHop	(	AODV_DEVICE_VAR *	devVar,
		NETSIM_IPAddress	dest,
		NetSim_EVENTDETAILS *	pstruEventDetails
	)

This function returns the next hop IP to the destination from the Route Table

Definition at line 115 of file RouteTable.c.

◆ fn_NetSim_AODV_ForwardRREP()

int fn_NetSim_AODV_ForwardRREP ( NetSim_EVENTDETAILS * pstruEventDetails )

This functiopn is used to forward the RREP packet to the previous hop, else the packet is freed.

Definition at line 109 of file RREP.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_ForwardRREQ()

int fn_NetSim_AODV_ForwardRREQ ( NetSim_EVENTDETAILS * pstruEventDetails )

This function forwards the RREQ. It creates, a control packet, adds the necessary header and adds the Network Out Event.

Definition at line 358 of file RREQ.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_GeneralPacketProcessing()

int fn_NetSim_AODV_GeneralPacketProcessing ( NetSim_EVENTDETAILS * pstruEventDetails )

This function is called in the Network Out Event for routing of the packet.

If the Device route table has a route to the target, then the packet is added to sent to the next hop ip

Whenever a packet is to be routed to a destination and the device route cache doesnt have a route to the target, the Packet is added to the FIFO and a Route Discovery is iitiated if not already.

Update the life time

Update the metrics

No route found but RREQ is already sent

No route found. generate RREQ

Definition at line 30 of file GeneralPacketProcessing.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_GenerateCtrlPacket()

NetSim_PACKET * fn_NetSim_AODV_GenerateCtrlPacket	(	NETSIM_ID	src,
		NETSIM_ID	dest,
		NETSIM_ID	recv,
		double	dTime,
		AODV_CONTROL_PACKET	type
	)

Here is the caller graph for this function:

◆ fn_NetSim_AODV_GenerateRERR()

int fn_NetSim_AODV_GenerateRERR	(	NETSIM_ID	nDeviceId,
		NETSIM_IPAddress	UnreachableIP,
		NetSim_EVENTDETAILS *	pstruEventDetails
	)

This function Generates a route error and sends it to the previous HOP.

Definition at line 20 of file AODV_RouteError.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_GenerateRREP()

int fn_NetSim_AODV_GenerateRREP ( NetSim_EVENTDETAILS * pstruEventDetails )

This function generates a route reply

Definition at line 22 of file RREP.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_GenerateRREPByIntermediate()

int fn_NetSim_AODV_GenerateRREPByIntermediate ( NetSim_EVENTDETAILS * pstruEventDetails )

This function generates a RREP by an intermediate node if the intermediate node has a route to the target entered in the route table.

Definition at line 140 of file RREP.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_GenerateRREQ()

NetSim_PACKET * fn_NetSim_AODV_GenerateRREQ ( NetSim_EVENTDETAILS * pstruEventDetails )

This function is used to genereate an AODV Route Request Packet. It Adds the RREQ entry in the RREQ sent table.

Definition at line 36 of file RREQ.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_InsertInPrecursorsList()

int fn_NetSim_AODV_InsertInPrecursorsList	(	NETSIM_IPAddress	ip,
		NetSim_EVENTDETAILS *	pstruEventDetails
	)

This function adds the given IP in the ADOV precursor list if not already present.

Definition at line 90 of file RouteTable.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_InsertInRouteTable()

int fn_NetSim_AODV_InsertInRouteTable	(	NETSIM_IPAddress	ip,
		unsigned int	seqNumber,
		unsigned int	hopCount,
		NETSIM_IPAddress	nextHop,
		double	lifeTime,
		NetSim_EVENTDETAILS *	pstruEventDetails
	)

This function adds the route in the Route table of the node. If the table is not there, it creates one with a certain timeout after which the entries are deleted.

Definition at line 22 of file RouteTable.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_ProcessRERR()

int fn_NetSim_AODV_ProcessRERR ( NetSim_EVENTDETAILS * pstruEventDetails )

This function Processess a route error. It deletes the entry to the target in the Route Table and forwards the REER packet to previous HOP if any.

Definition at line 109 of file AODV_RouteError.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_ProcessRREP()

int fn_NetSim_AODV_ProcessRREP ( NetSim_EVENTDETAILS * pstruEventDetails )

This function processes a route reply. It adds the entry of the next hop in Route Table, transmits the packets in FIFO Buffer and inserts precursor. Deletes the RREQ entry from sent table and forwards the rrep if the device is not the source node.

Definition at line 64 of file RREP.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_ProcessRREQ()

int fn_NetSim_AODV_ProcessRREQ ( NetSim_EVENTDETAILS * pstruEventDetails )

This function process the AODV RREQ. It checks for duplicate entry of the received RREQ packet. If the RREQ packet was received previously, it frees the packet. Else, it adds the RREQ in the AODV seen table, Inserts the reverse route in the Route table. If the device has the Route to the target, it generates a RREP. else it forwards the RREQ.

Definition at line 285 of file RREQ.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_ReceiveHelloMessage()

int fn_NetSim_AODV_ReceiveHelloMessage ( NetSim_EVENTDETAILS * pstruEventDetails )

◆ fn_NetSim_AODV_RetryRREQ()

int fn_NetSim_AODV_RetryRREQ ( NetSim_EVENTDETAILS * pstruEventDetails )

This function is used to retry an AODV route request. If the table is NULL or if the table timeout is greater than present time or if the number of RREQ exceeds the RREQ_RETRY_LIMIT, then RREQ is not sent again.

Else, a RREQ packet is generated and a NETWORK_OUT_EVENT is added.

Definition at line 179 of file RREQ.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_TransmitFIFOBuffer()

int fn_NetSim_AODV_TransmitFIFOBuffer	(	AODV_DEVICE_VAR *	devVar,
		NetSim_EVENTDETAILS *	pstruEventDetails
	)

This function Transmits the FIFO Buffer

Definition at line 81 of file FIFOBuffer.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_TransmitHelloMessage()

int fn_NetSim_AODV_TransmitHelloMessage ( NetSim_EVENTDETAILS * pstruEventDetails )

This function generate the Hello Message Packets and transmit them.

Definition at line 21 of file HelloMessage.c.

Here is the call graph for this function:

◆ fn_NetSim_AODV_UpdateRouteTable()

int fn_NetSim_AODV_UpdateRouteTable	(	NETSIM_IPAddress	ip,
		double	lifetime,
		NetSim_EVENTDETAILS *	pstruEventDetails
	)

This function updates the lifetime of the Route Table

Definition at line 147 of file RouteTable.c.

◆ fnEmptyFIFOBuffer()

int fnEmptyFIFOBuffer	(	AODV_DEVICE_VAR *	devVar,
		NETSIM_IPAddress	dest
	)

This function empties the FIFO buffer

Definition at line 54 of file FIFOBuffer.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fnFindRouteTable()

AODV_ROUTETABLE * fnFindRouteTable	(	AODV_ROUTETABLE *	table,
		NETSIM_IPAddress	dest
	)

This function returns the Route table with the mentioned destination IP

Definition at line 132 of file RouteTable.c.

Here is the caller graph for this function:

◆ fnFindSequenceNumber()

unsigned int fnFindSequenceNumber	(	AODV_DEVICE_VAR *	devVar,
		NETSIM_IPAddress	ip
	)

Here is the caller graph for this function:

◆ isAodvConfigured()

bool isAodvConfigured	(	NETSIM_ID	d,
		NETSIM_ID	in
	)

Here is the caller graph for this function:

◆ set_aodv_curr()

void set_aodv_curr ( )

Here is the caller graph for this function:

Data Structures

Macros

Typedefs

Enumerations

Functions

Macro Definition Documentation

◆ AODV_ACTIVE_ROUTE_TIMEOUT

◆ AODV_ACTIVE_ROUTE_TIMEOUT_EVENT

◆ AODV_ADD_TO_FIFO

◆ AODV_ALLOWED_HELLO_LOSS

◆ AODV_BLACKLIST_TIMEOUT

◆ AODV_CHECK_ROUTE_FOUND

◆ AODV_DELETE_PERIOD

◆ AODV_DEV_VAR

◆ AODV_FIND_NEXT_HOP

◆ AODV_FORWARD_RREP

◆ AODV_FORWARD_RREQ

◆ AODV_GEN_RREQ

◆ AODV_GENERATE_RERR

◆ AODV_GENERATE_RREP

◆ AODV_GENERATE_RREP_BY_IN

◆ AODV_HELLO_INTERVAL

◆ AODV_INSERT_PRECURSOR

◆ AODV_INSERT_ROUTE_TABLE

◆ AODV_LOCAL_ADD_TTL

◆ AODV_MAX_REPAIR_TTL

◆ AODV_METRICS_VAR

◆ AODV_MIN_REPAIR_TTL

◆ AODV_MY_ROUTE_TIMEOUT

◆ AODV_NET_DIAMETER

◆ AODV_NET_TRAVERSAL_TIME

◆ AODV_NEXT_HOP_WAIT

◆ AODV_NODE_TRAVERSAL_TIME

◆ AODV_PACKET_PROCESSING

◆ AODV_PATH_DISCOVERY_TIME

◆ AODV_PROCESS_RERR

◆ AODV_PROCESS_RREP

◆ AODV_PROCESS_RREQ

◆ AODV_RERR_RATELIMIT

◆ AODV_RERR_SIZE_FIXED

◆ AODV_RETRY_RREQ

◆ AODV_RING_TRAVERSAL_TIME

◆ AODV_RREP_SIZE

◆ AODV_RREP_SIZE_IPV4

◆ AODV_RREP_SIZE_IPV6

◆ AODV_RREQ_RATELIMIT

◆ AODV_RREQ_RETRIES

◆ AODV_RREQ_SIZE

◆ AODV_RREQ_SIZE_IPV4

◆ AODV_RREQ_SIZE_IPV6

◆ AODV_TIMEOUT_BUFFER

◆ AODV_TRANSMIT_FIFO

◆ AODV_TRANSMIT_HELLO

◆ AODV_TTL_INCREMENT

◆ AODV_TTL_START

◆ AODV_TTL_THRESHOLD

◆ AODV_UPDATE_ROUTE_TABLE

◆ FIFO_ALLOC

◆ K

◆ ROUTETABLE_ALLOC

◆ RREQSEENTABLE_ALLOC

◆ RREQSENTTABLE_ALLOC

Typedef Documentation

◆ AODV_CONTROL_PACKET

◆ AODV_DEVICE_VAR

◆ AODV_FIFO

◆ AODV_METRICS

◆ AODV_PRECURSORS_LIST

◆ AODV_PRIMITIVES

◆ AODV_RERR

◆ AODV_ROUTETABLE

◆ AODV_RREP

◆ AODV_RREQ

◆ AODV_RREQ_SEEN_TABLE

◆ AODV_RREQ_SENT_TABLE

Enumeration Type Documentation

◆ AODV_RoutingFlag

◆ AODV_SUB_EVENT

◆ enum_AODV_Ctrl_Packet

Function Documentation
