IP_Addressing.h File Reference

#include "Linux.h"

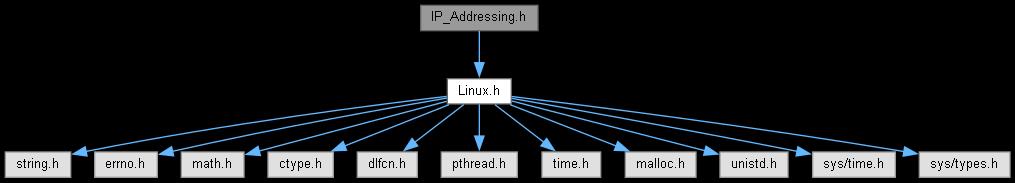

Include dependency graph for IP_Addressing.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	stru_ip

Macros
#define	_NETSIM_IP_LEN   50
#define	_NETSIM_BIN_IP_LEN   130
#define	MAX_TTL   255
#define	IP_COMPARE6(ip1, ip2)
#define	IP_COMPARE4(ip1, ip2)   (ip1->int_ip[0]==ip2->int_ip[0]?0:1)
#define	IP_COMPARE(ip1, ip2)
#define	IP_TO_STR(ip, ipstr)   ((ip)?(strcpy((ipstr),((ip)->str_ip))):strcpy(ipstr,"0.0.0.0"))
#define	STR_TO_IP4(ipstr)   STR_TO_IP(ipstr,4)
#define	STR_TO_IP6(ipstr)   STR_TO_IP(ipstr,6)
#define	IP_IS_IN_SAME_NETWORK_IPV4(ip1, ip2, subnet)   IP_IS_IN_SAME_NETWORK(ip1,ip2,subnet,0)
#define	IP_IS_IN_SAME_NETWORK_IPV6(ip1, ip2, prefix)   IP_IS_IN_SAME_NETWORK(ip1,ip2,NULL,prefix)
#define	IP_NETWORK_ADDRESS_IPV4(ip, subnet)   IP_NETWORK_ADDRESS(ip,subnet,0)
#define	IP_NETWORK_ADDRESS_IPV6(ip, prefix)   IP_NETWORK_ADDRESS(ip,NULL,prefix)

Typedefs
typedef struct stru_ip *	NETSIM_IPAddress

Functions
NETSIM_IPAddress	STR_TO_IP (char *ipStr, int type)
NETSIM_IPAddress	IP_COPY (NETSIM_IPAddress ip)
void	IP_FREE (NETSIM_IPAddress ip)
NETSIM_IPAddress	IP_COPY_FORCE (NETSIM_IPAddress ip)
void	IP_FREE_FORCE (NETSIM_IPAddress ip)
void	IP_TO_BINARY (NETSIM_IPAddress ip, char *binary)
unsigned int	IP_ADD_TO_LIST (NETSIM_IPAddress **pipList, unsigned int *count, const NETSIM_IPAddress ip)
unsigned int	IP_REMOVE_FROM_LIST (NETSIM_IPAddress *pipList, unsigned int *count, const NETSIM_IPAddress ip)
int	IP_CHECK_IN_LIST (const NETSIM_IPAddress *ipList, unsigned int count, const NETSIM_IPAddress ip)
int	IP_IS_IN_SAME_NETWORK (NETSIM_IPAddress ip1, NETSIM_IPAddress ip2, NETSIM_IPAddress subnet, unsigned int prefix_len)
NETSIM_IPAddress	IP_NETWORK_ADDRESS (NETSIM_IPAddress ip, NETSIM_IPAddress subnet, unsigned int prefix_len)
NETSIM_IPAddress	GET_BROADCAST_IP (int type)
int	IP_FREE_ALL ()
int	IP_VALIDATE_ALL_IP ()
int	STR_GET_IP_TYPE (char *ip)
bool	isBroadcastIP (NETSIM_IPAddress ip)
bool	isMulticastIP (NETSIM_IPAddress ip)
bool	isValidIPAddress (char *ip)
int	IP_find_match_length (NETSIM_IPAddress ip1, NETSIM_IPAddress ip2)

Macro Definition Documentation

_NETSIM_BIN_IP_LEN

#define _NETSIM_BIN_IP_LEN   130

Definition at line 30 of file IP_Addressing.h.

_NETSIM_IP_LEN

#define _NETSIM_IP_LEN   50

Definition at line 29 of file IP_Addressing.h.

IP_COMPARE

#define IP_COMPARE	(		ip1,
			ip2
	)

Value:

        ((ip1)->type==(ip2)->type \
        ? ((ip1)->type==4?IP_COMPARE4((ip1),(ip2)):IP_COMPARE6((ip1),(ip2))) \
        :1)

Definition at line 67 of file IP_Addressing.h.

IP_COMPARE4

#define IP_COMPARE4	(		ip1,
			ip2
	)		(ip1->int_ip[0]==ip2->int_ip[0]?0:1)

Definition at line 65 of file IP_Addressing.h.

IP_COMPARE6

#define IP_COMPARE6	(		ip1,
			ip2
	)

Value:

    (ip1->int_ip[0]==ip2->int_ip[0] \
    ?(ip1->int_ip[1]==ip2->int_ip[1] \
    ?(ip1->int_ip[2]==ip2->int_ip[2] \
    ?(ip1->int_ip[3]==ip2->int_ip[3]?0:1) :1) :1) :1)

Definition at line 60 of file IP_Addressing.h.

IP_IS_IN_SAME_NETWORK_IPV4

#define IP_IS_IN_SAME_NETWORK_IPV4	(		ip1,
			ip2,
			subnet
	)		IP_IS_IN_SAME_NETWORK(ip1,ip2,subnet,0)

Definition at line 97 of file IP_Addressing.h.

IP_IS_IN_SAME_NETWORK_IPV6

#define IP_IS_IN_SAME_NETWORK_IPV6	(		ip1,
			ip2,
			prefix
	)		IP_IS_IN_SAME_NETWORK(ip1,ip2,NULL,prefix)

Definition at line 98 of file IP_Addressing.h.

IP_NETWORK_ADDRESS_IPV4

#define IP_NETWORK_ADDRESS_IPV4	(		ip,
			subnet
	)		IP_NETWORK_ADDRESS(ip,subnet,0)

Definition at line 100 of file IP_Addressing.h.

IP_NETWORK_ADDRESS_IPV6

#define IP_NETWORK_ADDRESS_IPV6	(		ip,
			prefix
	)		IP_NETWORK_ADDRESS(ip,NULL,prefix)

Definition at line 101 of file IP_Addressing.h.

IP_TO_STR

#define IP_TO_STR	(		ip,
			ipstr
	)		((ip)?(strcpy((ipstr),((ip)->str_ip))):strcpy(ipstr,"0.0.0.0"))

Definition at line 71 of file IP_Addressing.h.

MAX_TTL

#define MAX_TTL   255

Definition at line 31 of file IP_Addressing.h.

STR_TO_IP4

#define STR_TO_IP4

(

ipstr

)

STR_TO_IP(ipstr,4)

Definition at line 94 of file IP_Addressing.h.

STR_TO_IP6

#define STR_TO_IP6

(

ipstr

)

STR_TO_IP(ipstr,6)

Definition at line 95 of file IP_Addressing.h.

Typedef Documentation

NETSIM_IPAddress

typedef struct stru_ip* NETSIM_IPAddress

Definition at line 32 of file IP_Addressing.h.

Function Documentation

GET_BROADCAST_IP()

NETSIM_IPAddress GET_BROADCAST_IP

(

int

type

)

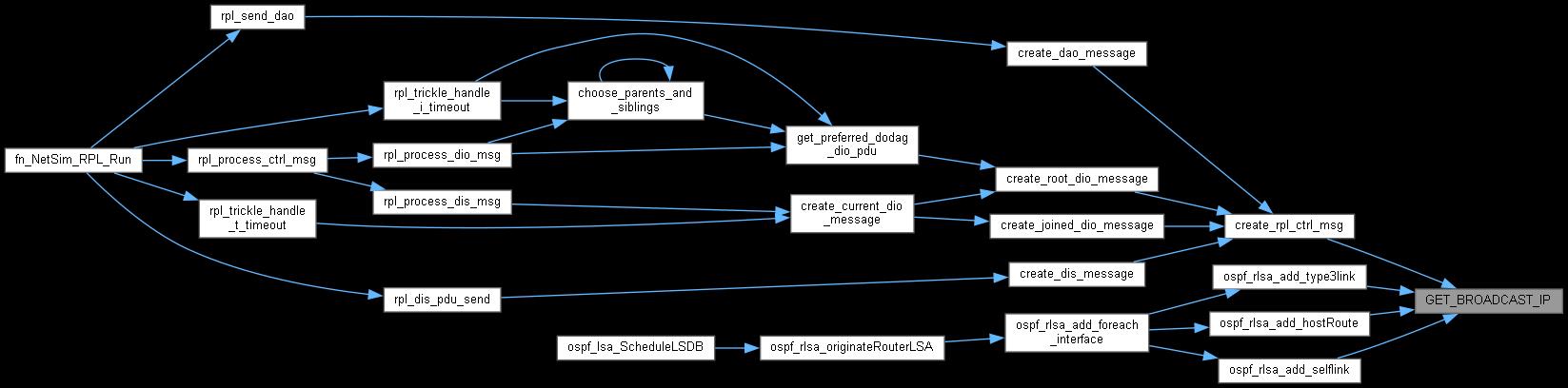

Here is the caller graph for this function:

IP_ADD_TO_LIST()

unsigned int IP_ADD_TO_LIST	(	NETSIM_IPAddress **	pipList,
		unsigned int *	count,
		const NETSIM_IPAddress	ip
	)

IP_CHECK_IN_LIST()

int IP_CHECK_IN_LIST	(	const NETSIM_IPAddress *	ipList,
		unsigned int	count,
		const NETSIM_IPAddress	ip
	)

IP_COPY()

NETSIM_IPAddress IP_COPY

(

NETSIM_IPAddress

ip

)

Here is the caller graph for this function:

IP_COPY_FORCE()

NETSIM_IPAddress IP_COPY_FORCE

(

NETSIM_IPAddress

ip

)

Here is the caller graph for this function:

IP_find_match_length()

int IP_find_match_length	(	NETSIM_IPAddress	ip1,
		NETSIM_IPAddress	ip2
	)

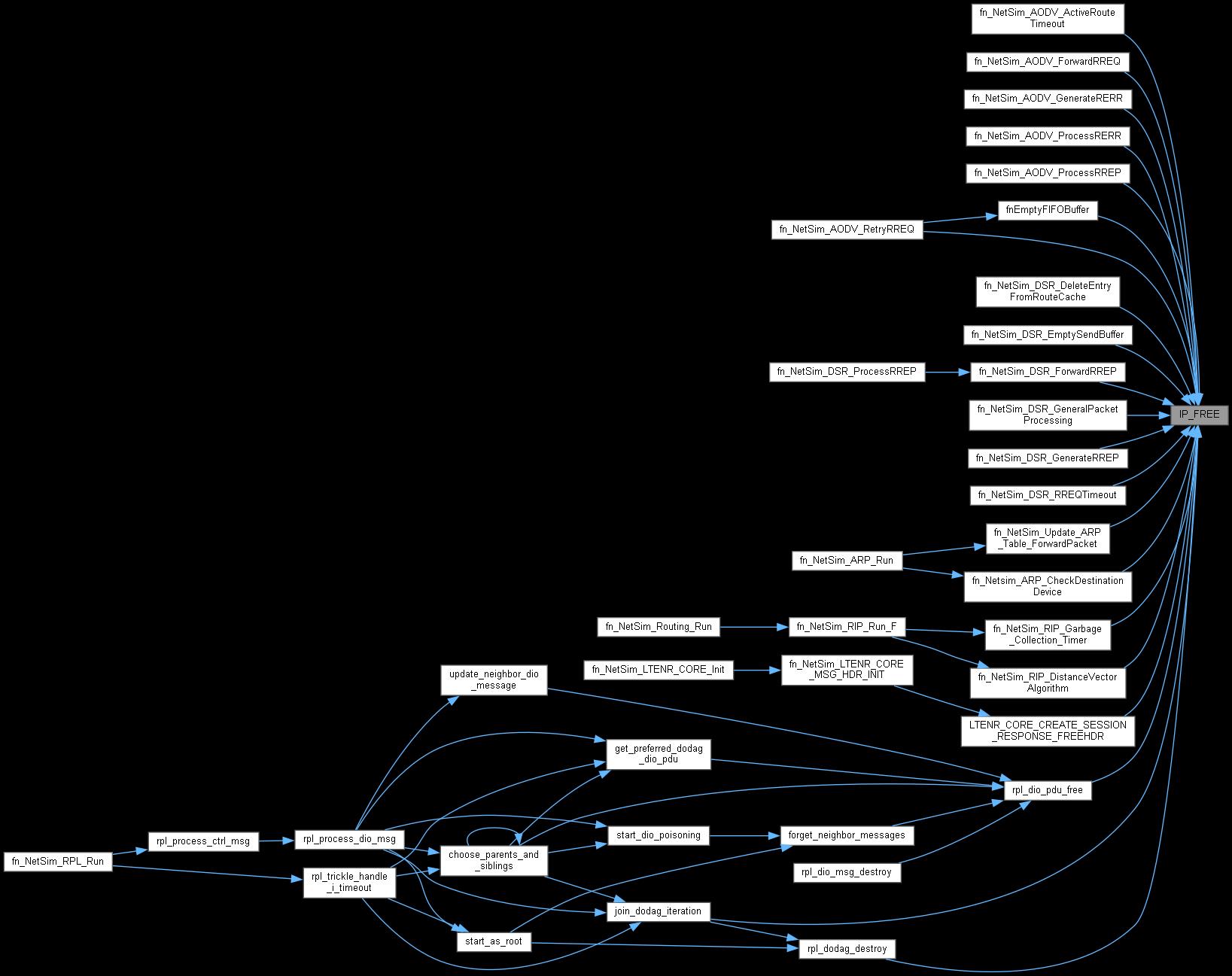

IP_FREE()

void IP_FREE

(

NETSIM_IPAddress

ip

)

Here is the caller graph for this function:

IP_FREE_ALL()

int IP_FREE_ALL

(

)

IP_FREE_FORCE()

void IP_FREE_FORCE

(

NETSIM_IPAddress

ip

)

IP_IS_IN_SAME_NETWORK()

int IP_IS_IN_SAME_NETWORK	(	NETSIM_IPAddress	ip1,
		NETSIM_IPAddress	ip2,
		NETSIM_IPAddress	subnet,
		unsigned int	prefix_len
	)

Here is the caller graph for this function:

IP_NETWORK_ADDRESS()

NETSIM_IPAddress IP_NETWORK_ADDRESS	(	NETSIM_IPAddress	ip,
		NETSIM_IPAddress	subnet,
		unsigned int	prefix_len
	)

Here is the caller graph for this function:

IP_REMOVE_FROM_LIST()

unsigned int IP_REMOVE_FROM_LIST	(	NETSIM_IPAddress *	pipList,
		unsigned int *	count,
		const NETSIM_IPAddress	ip
	)

IP_TO_BINARY()

void IP_TO_BINARY	(	NETSIM_IPAddress	ip,
		char *	binary
	)

Here is the caller graph for this function:

IP_VALIDATE_ALL_IP()

int IP_VALIDATE_ALL_IP

(

)

Very costly function. Use only for debugging

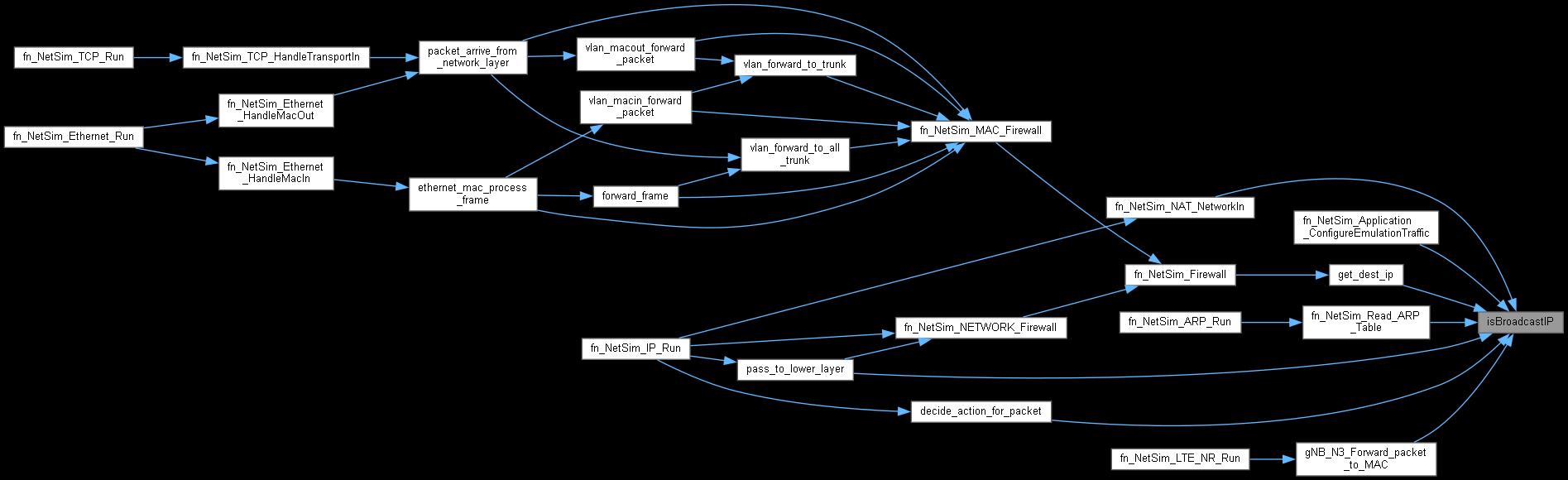

isBroadcastIP()

bool isBroadcastIP

(

NETSIM_IPAddress

ip

)

Here is the caller graph for this function:

isMulticastIP()

bool isMulticastIP

(

NETSIM_IPAddress

ip

)

Here is the caller graph for this function:

isValidIPAddress()

bool isValidIPAddress

(

char *

ip

)

Here is the caller graph for this function:

STR_GET_IP_TYPE()

int STR_GET_IP_TYPE

(

char *

ip

)

Here is the caller graph for this function:

STR_TO_IP()

NETSIM_IPAddress STR_TO_IP	(	char *	ipStr,
		int	type
	)

Here is the caller graph for this function:
