RTO.c File Reference

#include "main.h"
#include "TCP.h"
#include "TCP_Enum.h"
#include "TCP_Header.h"

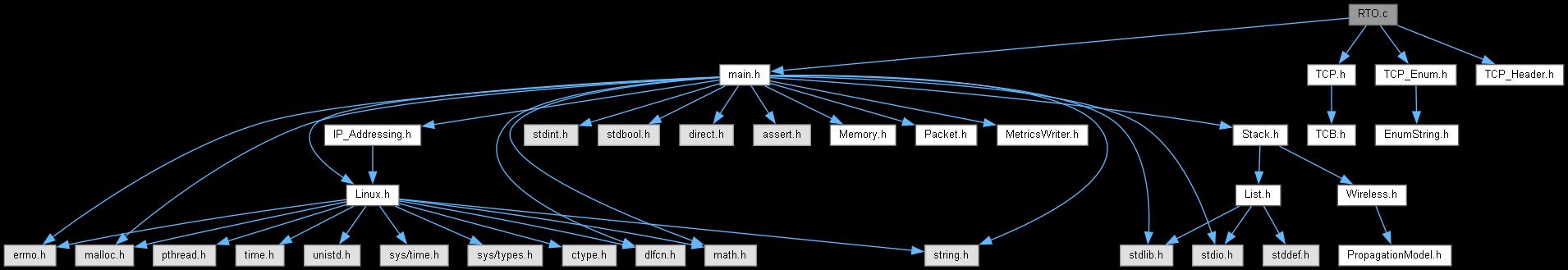

Include dependency graph for RTO.c:

Go to the source code of this file.

Macros
#define	alpha   (1/8.0)
#define	beta   (1/4.0)
#define	G
#define	K   (4)

Functions
double	calculate_RTO (double R, double *srtt, double *rtt_var)
static void	Backoff_RTO (double *rto)
void	add_timeout_event (PNETSIM_SOCKET s, NetSim_PACKET *packet)
static void	handle_rto_timer_for_ctrl (PNETSIM_SOCKET s)
void	handle_rto_timer ()
void	restart_rto_timer (PNETSIM_SOCKET s)

Macro Definition Documentation

alpha

#define alpha   (1/8.0)

Definition at line 30 of file RTO.c.

beta

#define beta   (1/4.0)

Definition at line 31 of file RTO.c.

G

#define G

Value:

                              (0.5*SECOND) /* Min RTO value is set to 0.5 s.
                              * The RFC states this should be 1 s
                              * Linux seems to be currently using 200 ms.
                              */

Definition at line 32 of file RTO.c.

K

#define K   (4)

Definition at line 33 of file RTO.c.

Function Documentation

add_timeout_event()

void add_timeout_event	(	PNETSIM_SOCKET	s,
		NetSim_PACKET *	packet
	)

Definition at line 63 of file RTO.c.

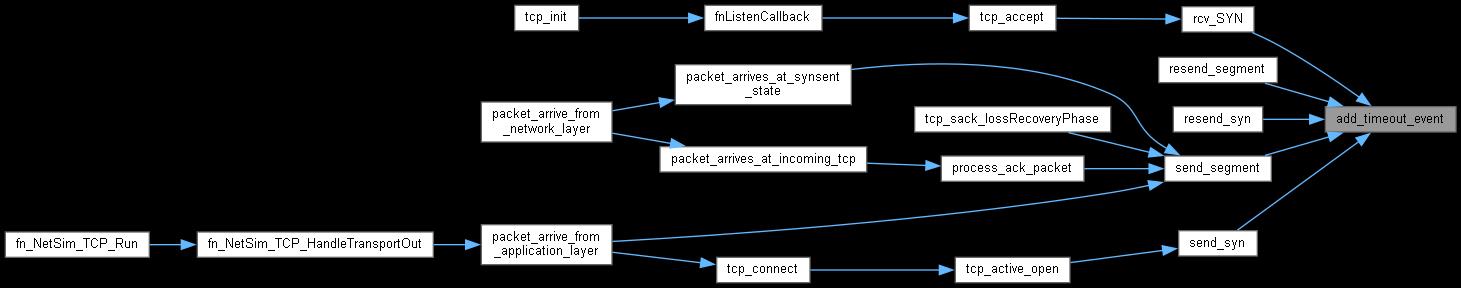

Here is the caller graph for this function:

Backoff_RTO()

static void Backoff_RTO ( double *  rto )

static

Definition at line 57 of file RTO.c.

calculate_RTO()

double calculate_RTO	(	double	R,
		double *	srtt,
		double *	rtt_var
	)

Definition at line 35 of file RTO.c.

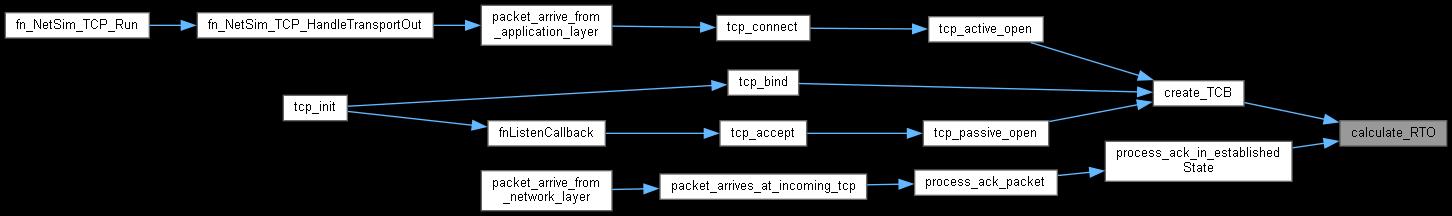

Here is the caller graph for this function:

handle_rto_timer()

void handle_rto_timer

(

)

Definition at line 101 of file RTO.c.

Here is the caller graph for this function:

handle_rto_timer_for_ctrl()

static void handle_rto_timer_for_ctrl ( PNETSIM_SOCKET  s )

static

Definition at line 92 of file RTO.c.

restart_rto_timer()

void restart_rto_timer

(

PNETSIM_SOCKET

s

)

Definition at line 152 of file RTO.c.

Here is the caller graph for this function:
