stru_NetSim_AODV_RouteTable Struct Reference

#include <AODV.h>

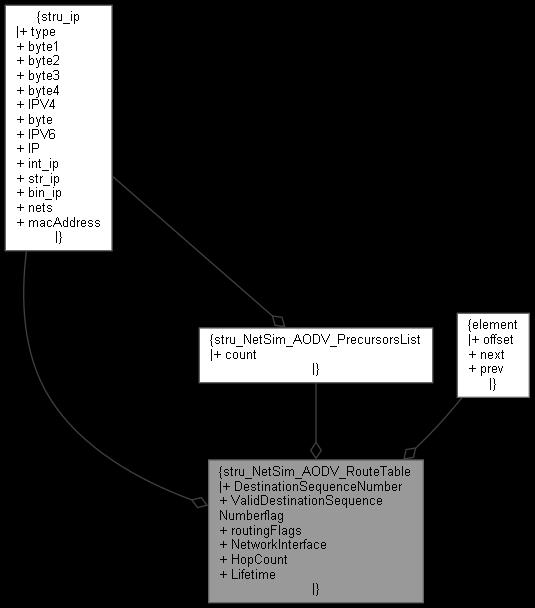

Collaboration diagram for stru_NetSim_AODV_RouteTable:

Data Fields
NETSIM_IPAddress	DestinationIPAddress
unsigned int	DestinationSequenceNumber
bool	ValidDestinationSequenceNumberflag
AODV_RoutingFlag	routingFlags
NETSIM_ID	NetworkInterface
unsigned int	HopCount
NETSIM_IPAddress	NextHop
AODV_PRECURSORS_LIST *	ListofPrecursors
double	Lifetime
struct element *	ele

Detailed Description

AODV is a routing protocol, and it deals with route table management.
Route table information must be kept even for short-lived routes,
such as are created to temporarily store reverse paths towards nodes
originating RREQs.  AODV uses the following fields with each route
table entry:

-  Destination IP Address
-  Destination Sequence Number
-  Valid Destination Sequence Number flag
-  Other state and routing flags (e.g., valid, invalid, repairable,
being repaired)
-  Network Interface
-  Hop Count (number of hops needed to reach destination)
-  Next Hop
-  List of Precursors (described in Section 6.2)
-  Lifetime (expiration or deletion time of the route)

Definition at line 316 of file AODV.h.

Field Documentation

DestinationIPAddress

NETSIM_IPAddress stru_NetSim_AODV_RouteTable::DestinationIPAddress

Definition at line 318 of file AODV.h.

DestinationSequenceNumber

unsigned int stru_NetSim_AODV_RouteTable::DestinationSequenceNumber

Definition at line 319 of file AODV.h.

ele

struct element* stru_NetSim_AODV_RouteTable::ele

Definition at line 327 of file AODV.h.

HopCount

unsigned int stru_NetSim_AODV_RouteTable::HopCount

Definition at line 323 of file AODV.h.

Lifetime

double stru_NetSim_AODV_RouteTable::Lifetime

Definition at line 326 of file AODV.h.

ListofPrecursors

AODV_PRECURSORS_LIST* stru_NetSim_AODV_RouteTable::ListofPrecursors

Definition at line 325 of file AODV.h.

NetworkInterface

NETSIM_ID stru_NetSim_AODV_RouteTable::NetworkInterface

Definition at line 322 of file AODV.h.

NextHop

NETSIM_IPAddress stru_NetSim_AODV_RouteTable::NextHop

Definition at line 324 of file AODV.h.

routingFlags

AODV_RoutingFlag stru_NetSim_AODV_RouteTable::routingFlags

Definition at line 321 of file AODV.h.

ValidDestinationSequenceNumberflag

bool stru_NetSim_AODV_RouteTable::ValidDestinationSequenceNumberflag

Definition at line 320 of file AODV.h.

---

The documentation for this struct was generated from the following file:

• AODV.h
