stru_AODV_FIFO Struct Reference

#include <AODV.h>

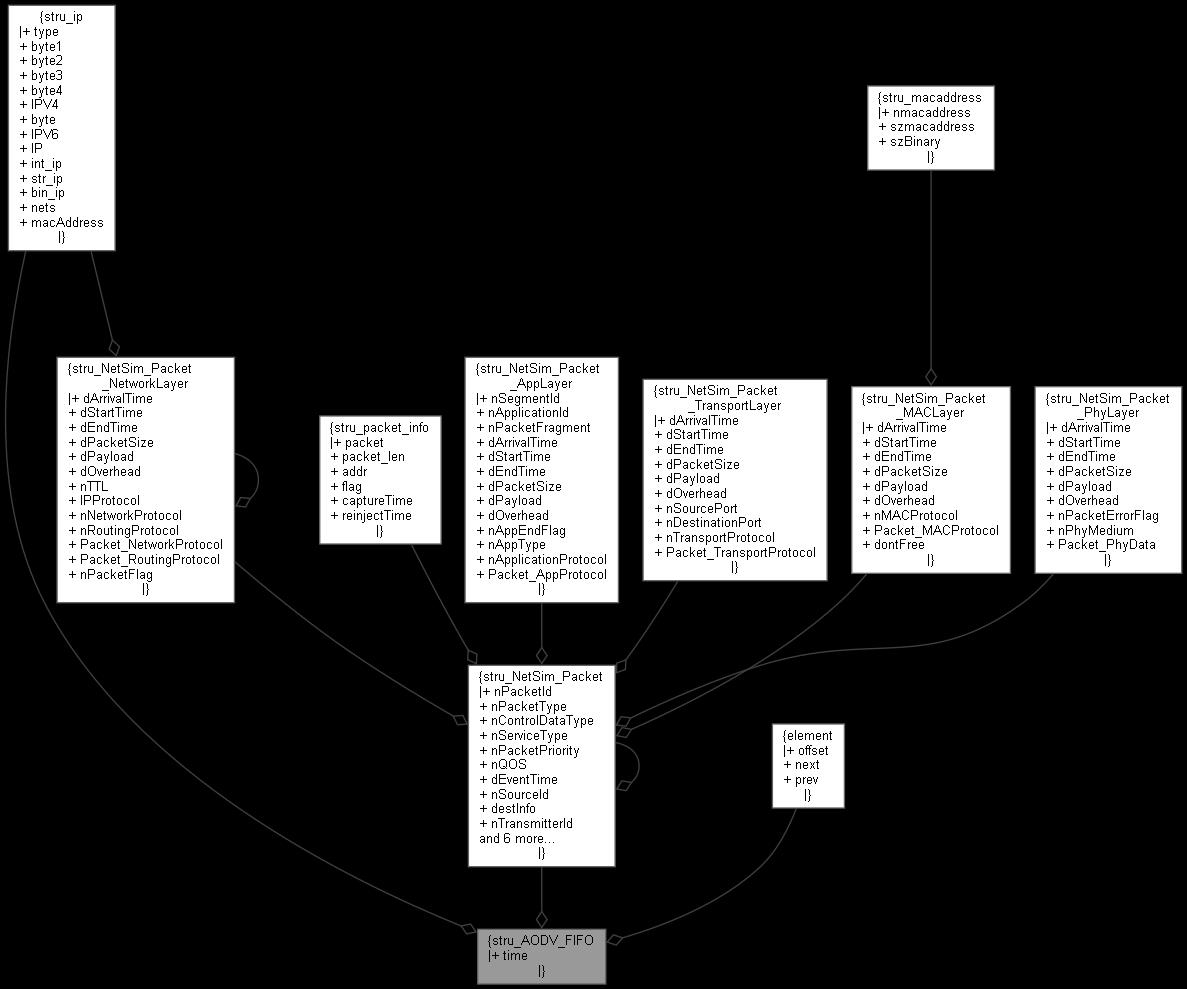

Collaboration diagram for stru_AODV_FIFO:

Data Fields
NETSIM_IPAddress	destination
	Destination - destination ip address. More...
NetSim_PACKET *	packetList
	PacketList - List of packets added to the FIFO buffer. More...
double	time
struct element *	ele
	ele - next buffer More...

Detailed Description

This is a buffer to which packets are added after if no route is present to the target.

Definition at line 332 of file AODV.h.

Field Documentation

destination

NETSIM_IPAddress stru_AODV_FIFO::destination

Destination - destination ip address.

Definition at line 334 of file AODV.h.

ele

struct element* stru_AODV_FIFO::ele

ele - next buffer

Definition at line 337 of file AODV.h.

packetList

NetSim_PACKET* stru_AODV_FIFO::packetList

PacketList - List of packets added to the FIFO buffer.

Definition at line 335 of file AODV.h.

time

double stru_AODV_FIFO::time

Definition at line 336 of file AODV.h.

---

The documentation for this struct was generated from the following file:

• AODV.h
