#include <RPL_Message.h>

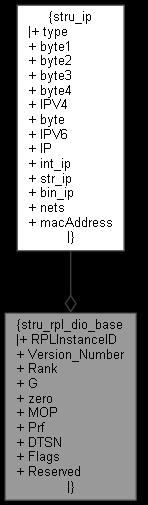

Collaboration diagram for stru_rpl_dio_base:

Data Fields
UINT8	RPLInstanceID

UINT8	Version_Number

UINT16	Rank

UINT	G: 1

UINT	zero: 1

UINT	MOP: 3

UINT	Prf: 3

UINT8	DTSN

UINT8	Flags

UINT8	Reserved

NETSIM_IPAddress	DODAGID

Detailed Description

Definition at line 131 of file RPL_Message.h.

Field Documentation

◆ DODAGID

NETSIM_IPAddress stru_rpl_dio_base::DODAGID

Definition at line 143 of file RPL_Message.h.

◆ DTSN

UINT8 stru_rpl_dio_base::DTSN

Definition at line 140 of file RPL_Message.h.

◆ Flags

UINT8 stru_rpl_dio_base::Flags

Definition at line 141 of file RPL_Message.h.

◆ G

UINT stru_rpl_dio_base::G

Definition at line 136 of file RPL_Message.h.

◆ MOP

UINT stru_rpl_dio_base::MOP

Definition at line 138 of file RPL_Message.h.

◆ Prf

UINT stru_rpl_dio_base::Prf

Definition at line 139 of file RPL_Message.h.

◆ Rank

UINT16 stru_rpl_dio_base::Rank

Definition at line 135 of file RPL_Message.h.

◆ Reserved

UINT8 stru_rpl_dio_base::Reserved

Definition at line 142 of file RPL_Message.h.

◆ RPLInstanceID

UINT8 stru_rpl_dio_base::RPLInstanceID

Definition at line 133 of file RPL_Message.h.

◆ Version_Number

UINT8 stru_rpl_dio_base::Version_Number

Definition at line 134 of file RPL_Message.h.

◆ zero

UINT stru_rpl_dio_base::zero

Definition at line 137 of file RPL_Message.h.

The documentation for this struct was generated from the following file:

RPL_Message.h
