UDP.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	stru_UDP_Metrics
struct	stru_UserDatagram_Header

Macros
#define	_CRT_SECURE_NO_DEPRECATE
#define	_UDP_H_
#define	TRANSPORT_UDP_OVERHEADS   8
	UDP Over heads in bytes. More...
#define	isUDPConfigured(d)   (DEVICE_TRXLayer(d) && DEVICE_TRXLayer(d)->isUDP)

Typedefs
typedef struct stru_UserDatagram_Header	DATAGRAM_HEADER_UDP
typedef struct stru_UDP_Metrics	UDP_METRICS

Functions
int	fn_NetSim_UDP_Create_ApplicationMetrics (NETSIM_ID, unsigned short, unsigned short, NETSIM_IPAddress, NETSIM_IPAddress, UDP_METRICS **)
int	fn_NetSim_UDP_Check_ApplicationMetrics (NETSIM_ID, NETSIM_ID, NETSIM_ID, NETSIM_IPAddress, NETSIM_IPAddress, UDP_METRICS **)
int	fn_NetSim_UDP_Configure (void **var)
int	fn_NetSim_UDP_Configure_F (void **var)
int	fn_NetSim_UDP_Init ()
int	fn_NetSim_UDP_Init_F ()
int	fn_NetSim_UDP_Run ()
int	fn_NetSim_UDP_Finish ()
	Function to free the UDP protocol variable and Unload the primitives. More...
int	fn_NetSim_UDP_Finish_F ()
char *	fn_NetSim_UDP_Trace (int nSubEvent)
	Return the subevent name with respect to the subevent number for writting event trace. More...
char *	fn_NetSim_UDP_Trace_F (int nSubEvent)
int	fn_NetSim_UDP_FreePacket (NetSim_PACKET *)
	Function to free the allocated memory for the UDP packet. More...
int	fn_NetSim_UDP_FreePacket_F (NetSim_PACKET *)
int	fn_NetSim_UDP_CopyPacket (NetSim_PACKET *, NetSim_PACKET *)
	Function to copy the UDP packet from source to destination. More...
int	fn_NetSim_UDP_CopyPacket_F (NetSim_PACKET *, NetSim_PACKET *)
int	fn_NetSim_UDP_Metrics (PMETRICSWRITER metricsWriter)
	Function to write UDP Metrics into Metrics.txt. More...
int	fn_NetSim_UDP_Metrics_F (PMETRICSWRITER metricsWriter)
int	fn_NetSim_UDP_Send_User_Datagram ()
int	fn_NetSim_UDP_Receive_User_Datagram ()

Macro Definition Documentation

_CRT_SECURE_NO_DEPRECATE

#define _CRT_SECURE_NO_DEPRECATE

Definition at line 33 of file UDP.h.

_UDP_H_

#define _UDP_H_

Definition at line 35 of file UDP.h.

isUDPConfigured

#define isUDPConfigured

(

d

)

(DEVICE_TRXLayer(d) && DEVICE_TRXLayer(d)->isUDP)

Definition at line 38 of file UDP.h.

TRANSPORT_UDP_OVERHEADS

#define TRANSPORT_UDP_OVERHEADS   8

UDP Over heads in bytes.

Definition at line 37 of file UDP.h.

Typedef Documentation

DATAGRAM_HEADER_UDP

typedef struct stru_UserDatagram_Header DATAGRAM_HEADER_UDP

Typedef declaration of structures

Definition at line 41 of file UDP.h.

UDP_METRICS

typedef struct stru_UDP_Metrics UDP_METRICS

Definition at line 42 of file UDP.h.

Function Documentation

fn_NetSim_UDP_Check_ApplicationMetrics()

int fn_NetSim_UDP_Check_ApplicationMetrics	(	NETSIM_ID	,
		NETSIM_ID	,
		NETSIM_ID	,
		NETSIM_IPAddress	,
		NETSIM_IPAddress	,
		UDP_METRICS **
	)

Here is the caller graph for this function:

fn_NetSim_UDP_Configure()

int fn_NetSim_UDP_Configure

(

void **

var

)

Function for configuring UDP parameters

This function is called by NetworkStack.dll, while configuring the device TRANSPORT layer for UDP protocol.

Definition at line 63 of file UDP.c.

Here is the call graph for this function:

fn_NetSim_UDP_Configure_F()

int fn_NetSim_UDP_Configure_F

(

void **

var

)

Here is the caller graph for this function:

fn_NetSim_UDP_CopyPacket()

int fn_NetSim_UDP_CopyPacket	(	NetSim_PACKET *	pstruDestPacket,
		NetSim_PACKET *	pstruSrcPacket
	)

Function to copy the UDP packet from source to destination.

This function is called by NetworkStack.dll, to free the packet of UDP protocol

Definition at line 121 of file UDP.c.

Here is the call graph for this function:

fn_NetSim_UDP_CopyPacket_F()

int fn_NetSim_UDP_CopyPacket_F	(	NetSim_PACKET *	,
		NetSim_PACKET *
	)

Here is the caller graph for this function:

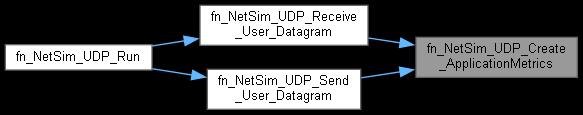

fn_NetSim_UDP_Create_ApplicationMetrics()

int fn_NetSim_UDP_Create_ApplicationMetrics	(	NETSIM_ID	,
		unsigned short	,
		unsigned short	,
		NETSIM_IPAddress	,
		NETSIM_IPAddress	,
		UDP_METRICS **
	)

Here is the caller graph for this function:

fn_NetSim_UDP_Finish()

int fn_NetSim_UDP_Finish

(

)

Function to free the UDP protocol variable and Unload the primitives.

This function is called by NetworkStack.dll, once simulation end to free the allocated memory for the network.

Definition at line 79 of file UDP.c.

Here is the call graph for this function:

fn_NetSim_UDP_Finish_F()

int fn_NetSim_UDP_Finish_F

(

)

Here is the caller graph for this function:

fn_NetSim_UDP_FreePacket()

int fn_NetSim_UDP_FreePacket

(

NetSim_PACKET *

pstruPacket

)

Function to free the allocated memory for the UDP packet.

Definition at line 114 of file UDP.c.

Here is the call graph for this function:

fn_NetSim_UDP_FreePacket_F()

int fn_NetSim_UDP_FreePacket_F

(

NetSim_PACKET *

)

Here is the caller graph for this function:

fn_NetSim_UDP_Init()

int fn_NetSim_UDP_Init

(

)

Function for Intializing UDP protocol

This functon initializes the UDP parameters.

Definition at line 71 of file UDP.c.

Here is the call graph for this function:

fn_NetSim_UDP_Init_F()

int fn_NetSim_UDP_Init_F

(

)

Here is the caller graph for this function:

fn_NetSim_UDP_Metrics()

int fn_NetSim_UDP_Metrics

(

PMETRICSWRITER

metricsWriter

)

Function to write UDP Metrics into Metrics.txt.

This function write the Metrics in Metrics.txt

Definition at line 126 of file UDP.c.

Here is the call graph for this function:

fn_NetSim_UDP_Metrics_F()

int fn_NetSim_UDP_Metrics_F

(

PMETRICSWRITER

metricsWriter

)

Here is the caller graph for this function:

fn_NetSim_UDP_Receive_User_Datagram()

int fn_NetSim_UDP_Receive_User_Datagram

(

)

This function is used to receive the user datagram

Definition at line 29 of file Receive_User_Datagram.c.

Here is the call graph for this function:

Here is the caller graph for this function:

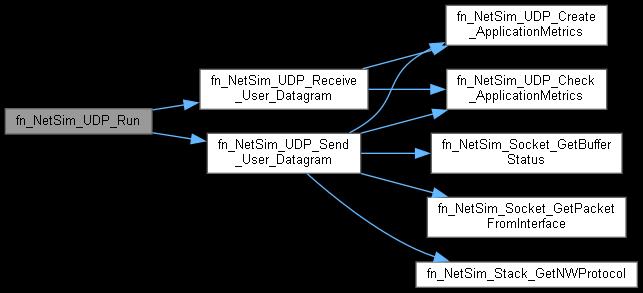

fn_NetSim_UDP_Run()

int fn_NetSim_UDP_Run

(

)

Function to run UDP protocol

This function is called by NetworkStack.dll, whenever the event gets triggered
inside the NetworkStack.dll for the Transport layer UDP protocol

Definition at line 32 of file UDP.c.

Here is the call graph for this function:

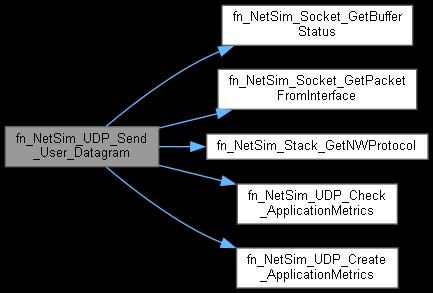

fn_NetSim_UDP_Send_User_Datagram()

int fn_NetSim_UDP_Send_User_Datagram

(

)

This function is used to send the user datagram

Definition at line 29 of file Send_User_Datagram.c.

Here is the call graph for this function:

Here is the caller graph for this function:

fn_NetSim_UDP_Trace()

char * fn_NetSim_UDP_Trace

(

int

nSubEvent

)

Return the subevent name with respect to the subevent number for writting event trace.

This function is called by NetworkStack.dll, while writing the evnt trace to get the sub event as a string.

Definition at line 109 of file UDP.c.

Here is the call graph for this function:

fn_NetSim_UDP_Trace_F()

char * fn_NetSim_UDP_Trace_F

(

int

nSubEvent

)

Here is the caller graph for this function:
