RouteRequest.c File Reference

#include "main.h"
#include "List.h"
#include "DSR.h"

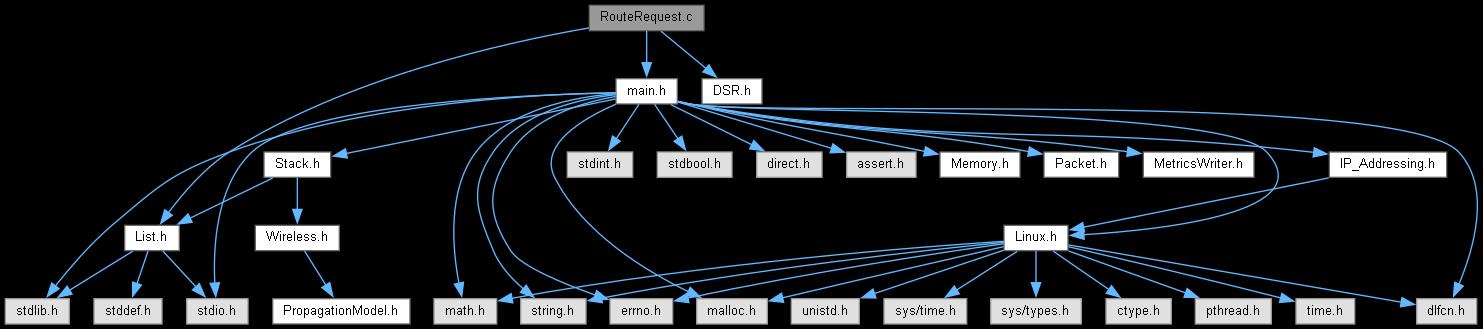

Include dependency graph for RouteRequest.c:

Go to the source code of this file.

Functions
int	fn_NetSim_DSR_DeleteRREQTable (NETSIM_IPAddress targetAddress, NETSIM_ID nDeviceId)
double	getRREQBackoff (DSR_RREQ_TABLE *table)
bool	fn_NetSim_DSR_CheckIPinIPList (NETSIM_IPAddress *ipList, int length, NETSIM_IPAddress ip)
bool	fn_NetSim_DSR_CheckEntryInRREQTable (DSR_RREQ_OPTION *rreq, DSR_RREQ_TABLE *table)
NetSim_PACKET *	fn_NetSim_DSR_InitRouteRequest (NETSIM_IPAddress target, DSR_RREQ_TABLE **rreqTable, NETSIM_ID nDeviceId, double dTime, NetSim_EVENTDETAILS *pstruEventDetails)
int	fn_NetSim_DSR_RREQTimeout (NetSim_EVENTDETAILS *pstruEventDetails)
NetSim_PACKET *	fn_NetSim_DSR_RetryRREQ (NETSIM_IPAddress targetAddress, NETSIM_ID nDeviceId, double dTime, NetSim_EVENTDETAILS *pstruEventDetails)
DSR_RREQ_TABLE *	getRREQTable (NETSIM_IPAddress target, DSR_RREQ_TABLE *table)
int	fn_NetSim_DSR_ProcessRREQ (NetSim_EVENTDETAILS *pstruEventDetails)

Function Documentation

fn_NetSim_DSR_CheckEntryInRREQTable()

bool fn_NetSim_DSR_CheckEntryInRREQTable	(	DSR_RREQ_OPTION *	rreq,
		DSR_RREQ_TABLE *	table
	)

This function checks if the RREQ table has an entry of the target IP address. This indicates that the particular device has already initiated a RREQ to the target.

Definition at line 339 of file RouteRequest.c.

Here is the caller graph for this function:

fn_NetSim_DSR_CheckIPinIPList()

bool fn_NetSim_DSR_CheckIPinIPList	(	NETSIM_IPAddress *	ipList,
		int	length,
		NETSIM_IPAddress	ip
	)

This functions checks if the IP is in the IP_List. It returns true if IP is there or else it returns false.

Definition at line 325 of file RouteRequest.c.

Here is the caller graph for this function:

fn_NetSim_DSR_DeleteRREQTable()

int fn_NetSim_DSR_DeleteRREQTable	(	NETSIM_IPAddress	targetAddress,
		NETSIM_ID	nDeviceId
	)

This function deletes the entry from the Route Request table

Definition at line 214 of file RouteRequest.c.

Here is the caller graph for this function:

fn_NetSim_DSR_InitRouteRequest()

NetSim_PACKET * fn_NetSim_DSR_InitRouteRequest	(	NETSIM_IPAddress	target,
		DSR_RREQ_TABLE **	rreqTable,
		NETSIM_ID	nDeviceId,
		double	dTime,
		NetSim_EVENTDETAILS *	pstruEventDetails
	)

This function initiates a route request to the target.

Definition at line 24 of file RouteRequest.c.

Here is the call graph for this function:

fn_NetSim_DSR_ProcessRREQ()

int fn_NetSim_DSR_ProcessRREQ

(

NetSim_EVENTDETAILS *

pstruEventDetails

)

This function process the RREQ that a device gets. If the target address is the device, it generates a RREP. If the RREQ packet contains the device IP in its address list, it drops the packet. If the Device cache contains the route to the target, then the device replies via the route cache. If no route is present, then the device forwards the RREQ.

Definition at line 237 of file RouteRequest.c.

Here is the call graph for this function:

fn_NetSim_DSR_RetryRREQ()

NetSim_PACKET * fn_NetSim_DSR_RetryRREQ	(	NETSIM_IPAddress	targetAddress,
		NETSIM_ID	nDeviceId,
		double	dTime,
		NetSim_EVENTDETAILS *	pstruEventDetails
	)

This function retransmits the RREQ packet.

Definition at line 126 of file RouteRequest.c.

Here is the call graph for this function:

fn_NetSim_DSR_RREQTimeout()

int fn_NetSim_DSR_RREQTimeout

(

NetSim_EVENTDETAILS *

pstruEventDetails

)

This function checks if a route is present in the route cache. If not, then it retransmits the route request packet if the route request count is less than the DSR Max Retransmit limit. If the RREQ count is > Max Retransmit Limit, it Empties the Send Buffer and deletes the RREQ entry from the RREQ table.

Definition at line 87 of file RouteRequest.c.

Here is the call graph for this function:

getRREQBackoff()

double getRREQBackoff

(

DSR_RREQ_TABLE *

table

)

This gets the Backoff time of the RREQ table. The backoff time is time until when if the RREQ is not received, it retransmits the RREQ.

Definition at line 199 of file RouteRequest.c.

Here is the caller graph for this function:

getRREQTable()

DSR_RREQ_TABLE * getRREQTable	(	NETSIM_IPAddress	target,
		DSR_RREQ_TABLE *	table
	)

If a RREQ to a target is before hand generated, this entry is made in the RREQ Table. This function gets the RREQ table of the target IP if the RREQ was beforehand sent.

Definition at line 184 of file RouteRequest.c.

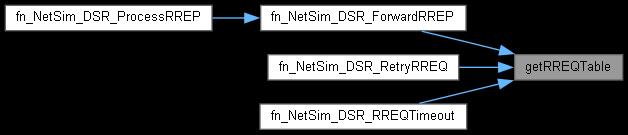

Here is the caller graph for this function:
