#include "RPL_Message.h"

Include dependency graph for RPL.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	seq_num_mapping_t

struct	stru_rpl_neighbor

struct	stru_rpl_root

struct	stru_rpl_dodag

struct	stru_rpl_node

struct	stru_rpl_node::stru_trickle

Macros
#define	_NETSIM_RPL_H_

#define	DEFAULT_DIO_INTERVAL_DOUBLINGS 20

#define	DEFAULT_DIO_INTERVAL_MIN 3

#define	DEFAULT_DIO_REDUNDANCY_CONSTANT 10

#define	DEFAULT_MIN_HOP_RANK_INCREASE 256

#define	DEFAULT_DAO_DELAY 1

#define	RPL_NODE_TYPE_DEFAULT _strdup("ROUTER")

#define	RPL_INSTANCE_ID_DEFAULT 15

#define	RPL_DIOIntervalDoublings_DEFAULT DEFAULT_DIO_INTERVAL_DOUBLINGS

#define	RPL_DIOIntervalMin_DEFAULT DEFAULT_DIO_INTERVAL_MIN

#define	RPL_DIORedundancyConstant_DEFAULT DEFAULT_DIO_REDUNDANCY_CONSTANT

#define	RPL_MinHopRankIncrease_DEFAULT DEFAULT_MIN_HOP_RANK_INCREASE

#define	RPL_DODAGPreference_DEFAULT 0

#define	RPL_DAO_DELAY_DEFAULT DEFAULT_DAO_DELAY

#define	RPL_DIS_INITIAL_DELAY_DEFAULT 200

#define	RPL_DIS_INTERVAL_DEFAULT 100

#define	INFINITE_RANK 0xFFFF

#define	RPL_RANK_ROOT 1

#define	RPL_MINIMUM_RANK_INCREMENT 1

#define	RPL_MAXIMUM_RANK_INCREMENT 16

#define	RPL_DEFAULT_DAG_PREF 0 /* least preferred */

#define	RPL_DEFAULT_MOP 2 /Storing Mode of Operation with no Multicast support/

#define	RPL_DEFAULT_POISON_COUNT 4

#define	RPL_DEFAULT_DAO_REMOVE_TIMEOUT (2500*MILLISECOND)

#define	is_rpl_control_packet(packet) ((packet)->nControlDataType/100==NW_PROTOCOL_RPL)

#define	is_rpl_configured(d) (DEVICE_NWLAYER((d)) && DEVICE_NWLAYER((d))->nRoutingProtocolId==NW_PROTOCOL_RPL)

#define	GET_RPL_NODE(d) ((PRPL_NODE)DEVICE_NWROUTINGVAR(d))

#define	rpl_node_has_parent(node, parent) (rpl_node_find_parent(node, parent) != NULL)

#define	rpl_node_has_sibling(node, sibling) (rpl_node_find_sibling(node, sibling) != NULL)

#define	RPL_IP_TO_STR(ip) ((ip)->str_ip)

Typedefs
typedef UINT16	RPL_RANK

typedef NETSIM_IPAddress	DODAGID

typedef struct seq_num_mapping_t	seq_num_mapping_t

typedef struct stru_rpl_neighbor	RPL_NEIGHBOR

typedef struct stru_rpl_neighbor *	PRPL_NEIGHBOR

typedef struct stru_rpl_root	RPL_ROOT

typedef struct stru_rpl_root *	PRPL_ROOT

typedef struct stru_rpl_dodag	RPL_DODAG

typedef struct stru_rpl_dodag *	PRPL_DODAG

typedef struct stru_rpl_node	RPL_NODE

typedef struct stru_rpl_node *	PRPL_NODE

Enumerations
enum	RPLNODETYPE { RPLNODETYPE_ROOT , RPLNODETYPE_ROUTER , RPLNODETYPE_LEAF }

Functions
void	print_rpl_log (char *format,...)

void	rpl_node_init (NETSIM_ID d)

void	start_as_root (NETSIM_ID d)

PRPL_ROOT	get_global_root_info ()

bool	rpl_node_is_root (PRPL_NODE r)

bool	rpl_node_is_joined (PRPL_NODE r)

bool	rpl_node_is_poisoning (PRPL_NODE r)

bool	rpl_node_is_isolated (PRPL_NODE rpl)

void	rpl_trickle_reset (NETSIM_ID nDevId)

void	rpl_trickle_handle_t_timeout ()

void	rpl_trickle_handle_i_timeout ()

PRPL_DODAG	rpl_dodag_create (PRPL_CTRL_MSG dio_pdu)

void	rpl_dodag_destroy (PRPL_DODAG dodag)

void	join_dodag_iteration (NETSIM_ID d, PRPL_CTRL_MSG dio_pdu)

void	update_dodag_config (NETSIM_ID node, PRPL_CTRL_MSG dio_pdu)

void *	get_option_from_msg (PRPL_CTRL_MSG msg, RPL_OPTION_TYPE type)

void **	get_all_option_from_msg (PRPL_CTRL_MSG msg, RPL_OPTION_TYPE type, UINT *count)

NetSim_PACKET *	create_current_dio_message (NETSIM_ID ndevId, double time, bool include_dodag_config)

void	rpl_option_destroy (PRPL_OPTION option)

PRPL_OPTION	rpl_option_copy (PRPL_OPTION option)

void	rpl_process_ctrl_msg ()

PRPL_CTRL_MSG	rpl_dio_pdu_duplicate (PRPL_CTRL_MSG dio)

void	rpl_node_send_msg (NETSIM_ID ndevid, NetSim_PACKET *packet)

PRPL_CTRL_MSG	get_preferred_dodag_dio_pdu (NETSIM_ID d, bool *same, double time)

NetSim_PACKET *	create_root_dio_message (NETSIM_ID ndevId, double time, bool include_dodag_config, bool include_seq_num)

void	rpl_process_dio_msg ()

void	rpl_dio_pdu_free (PRPL_CTRL_MSG dio)

void	start_dio_poisoning (NETSIM_ID d)

void	rpl_dio_msg_copy (const NetSim_PACKET destPacket, const NetSim_PACKET srcPacket)

void	rpl_dio_msg_destroy (NetSim_PACKET *packet)

NetSim_PACKET *	create_dao_message (NETSIM_ID ndevid, double time, NETSIM_ID parent)

void	create_and_add_rpl_target_option (NetSim_PACKET *dao_pdu, UINT8 prefix_len, NETSIM_IPAddress dest)

void	rpl_send_dao ()

void	rpl_process_dao_msg ()

void	rpl_dao_msg_destroy (NetSim_PACKET *packet)

void	rpl_dao_msg_copy (const NetSim_PACKET destPacket, const NetSim_PACKET srcPacket)

void	rpl_dao_route_timeout ()

void	rpl_process_dis_msg ()

void	rpl_dis_pdu_send ()

NetSim_PACKET *	create_dis_message (NETSIM_ID ndevid, double time)

void	rpl_dis_msg_destroy (NetSim_PACKET *packet)

void	rpl_dis_msg_copy (const NetSim_PACKET destPacket, const NetSim_PACKET srcPacket)

void	seq_num_mapping_cleanup ()

seq_num_mapping_t *	seq_num_mapping_get (NETSIM_IPAddress dodag_id)

void	rpl_add_to_neighbor_list ()

PRPL_NEIGHBOR	rpl_find_neighbor (NETSIM_ID d, NETSIM_ID r)

void	update_neighbor_dio_message (PRPL_NEIGHBOR neighbor, PRPL_CTRL_MSG dio_pdu)

void	forget_neighbor_messages (PRPL_NODE rpl)

void	free_all_neighbor (PRPL_NODE rpl)

void	rpl_node_add_parent (NETSIM_ID d, PRPL_NEIGHBOR parent)

void	rpl_node_remove_all_parents (NETSIM_ID d)

PRPL_NEIGHBOR	rpl_node_find_parent (NETSIM_ID d, NETSIM_ID parent)

void	rpl_node_add_sibling (NETSIM_ID d, PRPL_NEIGHBOR sibling)

PRPL_NEIGHBOR	rpl_node_find_sibling (NETSIM_ID d, NETSIM_ID sibling)

void	rpl_node_remove_all_siblings (NETSIM_ID d)

void	choose_parents_and_siblings (NETSIM_ID d)

void	rpl_delete_all_route (NETSIM_ID d)

void	rpl_add_route_to_parent (NETSIM_ID d, NETSIM_ID parent)

Macro Definition Documentation

◆ _NETSIM_RPL_H_

#define _NETSIM_RPL_H_

Definition at line 21 of file RPL.h.

◆ DEFAULT_DAO_DELAY

#define DEFAULT_DAO_DELAY 1

Definition at line 67 of file RPL.h.

◆ DEFAULT_DIO_INTERVAL_DOUBLINGS

#define DEFAULT_DIO_INTERVAL_DOUBLINGS 20

Definition at line 47 of file RPL.h.

◆ DEFAULT_DIO_INTERVAL_MIN

#define DEFAULT_DIO_INTERVAL_MIN 3

Definition at line 55 of file RPL.h.

◆ DEFAULT_DIO_REDUNDANCY_CONSTANT

#define DEFAULT_DIO_REDUNDANCY_CONSTANT 10

Definition at line 61 of file RPL.h.

◆ DEFAULT_MIN_HOP_RANK_INCREASE

#define DEFAULT_MIN_HOP_RANK_INCREASE 256

Definition at line 66 of file RPL.h.

◆ GET_RPL_NODE

#define GET_RPL_NODE ( d ) ((PRPL_NODE)DEVICE_NWROUTINGVAR(d))

Definition at line 212 of file RPL.h.

◆ INFINITE_RANK

#define INFINITE_RANK 0xFFFF

Definition at line 81 of file RPL.h.

◆ is_rpl_configured

#define is_rpl_configured ( d ) (DEVICE_NWLAYER((d)) && DEVICE_NWLAYER((d))->nRoutingProtocolId==NW_PROTOCOL_RPL)

Definition at line 95 of file RPL.h.

◆ is_rpl_control_packet

#define is_rpl_control_packet ( packet ) ((packet)->nControlDataType/100==NW_PROTOCOL_RPL)

Definition at line 94 of file RPL.h.

◆ RPL_DAO_DELAY_DEFAULT

#define RPL_DAO_DELAY_DEFAULT DEFAULT_DAO_DELAY

Definition at line 77 of file RPL.h.

◆ RPL_DEFAULT_DAG_PREF

#define RPL_DEFAULT_DAG_PREF 0 /* least preferred */

Definition at line 85 of file RPL.h.

◆ RPL_DEFAULT_DAO_REMOVE_TIMEOUT

#define RPL_DEFAULT_DAO_REMOVE_TIMEOUT (2500*MILLISECOND)

Definition at line 88 of file RPL.h.

◆ RPL_DEFAULT_MOP

#define RPL_DEFAULT_MOP 2 /*Storing Mode of Operation with no Multicast support*/

Definition at line 86 of file RPL.h.

◆ RPL_DEFAULT_POISON_COUNT

#define RPL_DEFAULT_POISON_COUNT 4

Definition at line 87 of file RPL.h.

◆ RPL_DIOIntervalDoublings_DEFAULT

#define RPL_DIOIntervalDoublings_DEFAULT DEFAULT_DIO_INTERVAL_DOUBLINGS

Definition at line 72 of file RPL.h.

◆ RPL_DIOIntervalMin_DEFAULT

#define RPL_DIOIntervalMin_DEFAULT DEFAULT_DIO_INTERVAL_MIN

Definition at line 73 of file RPL.h.

◆ RPL_DIORedundancyConstant_DEFAULT

#define RPL_DIORedundancyConstant_DEFAULT DEFAULT_DIO_REDUNDANCY_CONSTANT

Definition at line 74 of file RPL.h.

◆ RPL_DIS_INITIAL_DELAY_DEFAULT

#define RPL_DIS_INITIAL_DELAY_DEFAULT 200

Definition at line 78 of file RPL.h.

◆ RPL_DIS_INTERVAL_DEFAULT

#define RPL_DIS_INTERVAL_DEFAULT 100

Definition at line 79 of file RPL.h.

◆ RPL_DODAGPreference_DEFAULT

#define RPL_DODAGPreference_DEFAULT 0

Definition at line 76 of file RPL.h.

◆ RPL_INSTANCE_ID_DEFAULT

#define RPL_INSTANCE_ID_DEFAULT 15

Definition at line 71 of file RPL.h.

◆ RPL_IP_TO_STR

#define RPL_IP_TO_STR ( ip ) ((ip)->str_ip)

Definition at line 316 of file RPL.h.

◆ RPL_MAXIMUM_RANK_INCREMENT

#define RPL_MAXIMUM_RANK_INCREMENT 16

Definition at line 84 of file RPL.h.

◆ RPL_MinHopRankIncrease_DEFAULT

#define RPL_MinHopRankIncrease_DEFAULT DEFAULT_MIN_HOP_RANK_INCREASE

Definition at line 75 of file RPL.h.

◆ RPL_MINIMUM_RANK_INCREMENT

#define RPL_MINIMUM_RANK_INCREMENT 1

Definition at line 83 of file RPL.h.

◆ rpl_node_has_parent

#define rpl_node_has_parent	(	node,
		parent
	)	(rpl_node_find_parent(node, parent) != NULL)

Definition at line 300 of file RPL.h.

◆ rpl_node_has_sibling

#define rpl_node_has_sibling	(	node,
		sibling
	)	(rpl_node_find_sibling(node, sibling) != NULL)

Definition at line 306 of file RPL.h.

◆ RPL_NODE_TYPE_DEFAULT

#define RPL_NODE_TYPE_DEFAULT _strdup("ROUTER")

Definition at line 70 of file RPL.h.

◆ RPL_RANK_ROOT

#define RPL_RANK_ROOT 1

Definition at line 82 of file RPL.h.

Typedef Documentation

◆ DODAGID

typedef NETSIM_IPAddress DODAGID

Definition at line 91 of file RPL.h.

◆ PRPL_DODAG

typedef struct stru_rpl_dodag* PRPL_DODAG

◆ PRPL_NEIGHBOR

typedef struct stru_rpl_neighbor * PRPL_NEIGHBOR

◆ PRPL_NODE

typedef struct stru_rpl_node* PRPL_NODE

◆ PRPL_ROOT

typedef struct stru_rpl_root* PRPL_ROOT

◆ RPL_DODAG

typedef struct stru_rpl_dodag RPL_DODAG

◆ RPL_NEIGHBOR

typedef struct stru_rpl_neighbor RPL_NEIGHBOR

◆ RPL_NODE

typedef struct stru_rpl_node RPL_NODE

◆ RPL_RANK

typedef UINT16 RPL_RANK

Definition at line 90 of file RPL.h.

◆ RPL_ROOT

typedef struct stru_rpl_root RPL_ROOT

◆ seq_num_mapping_t

typedef struct seq_num_mapping_t seq_num_mapping_t

Enumeration Type Documentation

◆ RPLNODETYPE

enum RPLNODETYPE

Enumerator
RPLNODETYPE_ROOT
RPLNODETYPE_ROUTER
RPLNODETYPE_LEAF

Definition at line 98 of file RPL.h.

Function Documentation

◆ choose_parents_and_siblings()

void choose_parents_and_siblings ( NETSIM_ID d )

Definition at line 189 of file Neighbor.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create_and_add_rpl_target_option()

void create_and_add_rpl_target_option	(	NetSim_PACKET *	dao_pdu,
		UINT8	prefix_len,
		NETSIM_IPAddress	dest
	)

Definition at line 379 of file RPL_Message.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create_current_dio_message()

NetSim_PACKET * create_current_dio_message	(	NETSIM_ID	ndevId,
		double	time,
		bool	include_dodag_config
	)

Definition at line 293 of file RPL_Message.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create_dao_message()

NetSim_PACKET * create_dao_message	(	NETSIM_ID	ndevid,
		double	time,
		NETSIM_ID	parent
	)

Definition at line 370 of file RPL_Message.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create_dis_message()

NetSim_PACKET * create_dis_message	(	NETSIM_ID	ndevid,
		double	time
	)

Definition at line 408 of file RPL_Message.c.

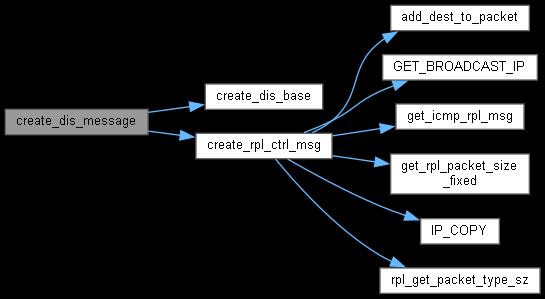

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create_root_dio_message()

NetSim_PACKET * create_root_dio_message	(	NETSIM_ID	ndevId,
		double	time,
		bool	include_dodag_config,
		bool	include_seq_num
	)

Definition at line 225 of file RPL_Message.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ forget_neighbor_messages()

void forget_neighbor_messages ( PRPL_NODE rpl )

Definition at line 107 of file Neighbor.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ free_all_neighbor()

void free_all_neighbor ( PRPL_NODE rpl )

Definition at line 407 of file Neighbor.c.

◆ get_all_option_from_msg()

void ** get_all_option_from_msg	(	PRPL_CTRL_MSG	msg,
		RPL_OPTION_TYPE	type,
		UINT *	count
	)

Definition at line 73 of file RPL_Message.c.

Here is the caller graph for this function:

◆ get_global_root_info()

PRPL_ROOT get_global_root_info ( )

Here is the caller graph for this function:

◆ get_option_from_msg()

void * get_option_from_msg	(	PRPL_CTRL_MSG	msg,
		RPL_OPTION_TYPE	type
	)

Definition at line 60 of file RPL_Message.c.

Here is the caller graph for this function:

◆ get_preferred_dodag_dio_pdu()

PRPL_CTRL_MSG get_preferred_dodag_dio_pdu	(	NETSIM_ID	d,
		bool *	same,
		double	time
	)

Definition at line 78 of file DIO.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ join_dodag_iteration()

void join_dodag_iteration	(	NETSIM_ID	d,
		PRPL_CTRL_MSG	dio_pdu
	)

Definition at line 73 of file DODAG.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ print_rpl_log()

void print_rpl_log	(	char *	format,
			...
	)

Here is the caller graph for this function:

◆ rpl_add_route_to_parent()

void rpl_add_route_to_parent	(	NETSIM_ID	d,
		NETSIM_ID	parent
	)

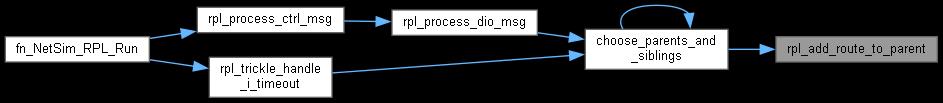

Here is the caller graph for this function:

◆ rpl_add_to_neighbor_list()

void rpl_add_to_neighbor_list ( )

Definition at line 44 of file Neighbor.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_dao_msg_copy()

void rpl_dao_msg_copy	(	const NetSim_PACKET *	destPacket,
		const NetSim_PACKET *	srcPacket
	)

Definition at line 232 of file DAO.c.

Here is the call graph for this function:

◆ rpl_dao_msg_destroy()

void rpl_dao_msg_destroy ( NetSim_PACKET * packet )

Definition at line 218 of file DAO.c.

Here is the call graph for this function:

◆ rpl_dao_route_timeout()

void rpl_dao_route_timeout ( )

Definition at line 183 of file DAO.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_delete_all_route()

void rpl_delete_all_route ( NETSIM_ID d )

Here is the caller graph for this function:

◆ rpl_dio_msg_copy()

void rpl_dio_msg_copy	(	const NetSim_PACKET *	destPacket,
		const NetSim_PACKET *	srcPacket
	)

Definition at line 339 of file DIO.c.

Here is the call graph for this function:

◆ rpl_dio_msg_destroy()

void rpl_dio_msg_destroy ( NetSim_PACKET * packet )

Definition at line 346 of file DIO.c.

Here is the call graph for this function:

◆ rpl_dio_pdu_duplicate()

PRPL_CTRL_MSG rpl_dio_pdu_duplicate ( PRPL_CTRL_MSG dio )

Definition at line 314 of file RPL_Message.c.

Here is the caller graph for this function:

◆ rpl_dio_pdu_free()

void rpl_dio_pdu_free ( PRPL_CTRL_MSG dio )

Definition at line 343 of file RPL_Message.c.

Here is the call graph for this function:

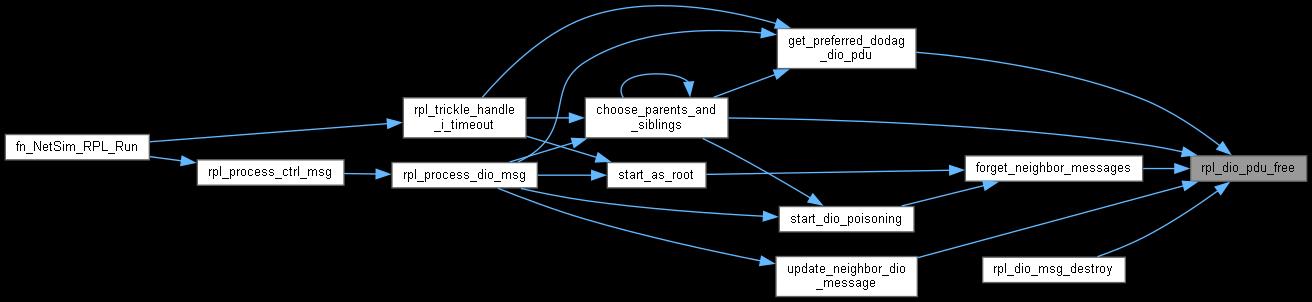

Here is the caller graph for this function:

◆ rpl_dis_msg_copy()

void rpl_dis_msg_copy	(	const NetSim_PACKET *	destPacket,
		const NetSim_PACKET *	srcPacket
	)

Definition at line 62 of file DIS.c.

Here is the call graph for this function:

◆ rpl_dis_msg_destroy()

void rpl_dis_msg_destroy ( NetSim_PACKET * packet )

Definition at line 51 of file DIS.c.

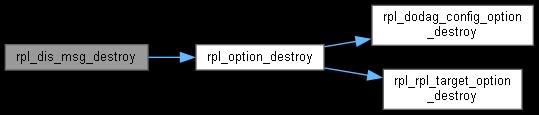

Here is the call graph for this function:

◆ rpl_dis_pdu_send()

void rpl_dis_pdu_send ( )

Definition at line 20 of file DIS.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_dodag_create()

PRPL_DODAG rpl_dodag_create ( PRPL_CTRL_MSG dio_pdu )

Definition at line 18 of file DODAG.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_dodag_destroy()

void rpl_dodag_destroy ( PRPL_DODAG dodag )

Definition at line 53 of file DODAG.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_find_neighbor()

PRPL_NEIGHBOR rpl_find_neighbor	(	NETSIM_ID	d,
		NETSIM_ID	r
	)

Definition at line 19 of file Neighbor.c.

Here is the caller graph for this function:

◆ rpl_node_add_parent()

void rpl_node_add_parent	(	NETSIM_ID	d,
		PRPL_NEIGHBOR	parent
	)

Definition at line 64 of file Neighbor.c.

Here is the caller graph for this function:

◆ rpl_node_add_sibling()

void rpl_node_add_sibling	(	NETSIM_ID	d,
		PRPL_NEIGHBOR	sibling
	)

Definition at line 122 of file Neighbor.c.

Here is the caller graph for this function:

◆ rpl_node_find_parent()

PRPL_NEIGHBOR rpl_node_find_parent	(	NETSIM_ID	d,
		NETSIM_ID	parent
	)

Definition at line 76 of file Neighbor.c.

◆ rpl_node_find_sibling()

PRPL_NEIGHBOR rpl_node_find_sibling	(	NETSIM_ID	d,
		NETSIM_ID	sibling
	)

Definition at line 135 of file Neighbor.c.

◆ rpl_node_init()

void rpl_node_init ( NETSIM_ID d )

Definition at line 181 of file RPL.c.

Here is the call graph for this function:

◆ rpl_node_is_isolated()

bool rpl_node_is_isolated ( PRPL_NODE rpl )

Here is the caller graph for this function:

◆ rpl_node_is_joined()

bool rpl_node_is_joined ( PRPL_NODE r )

Here is the caller graph for this function:

◆ rpl_node_is_poisoning()

bool rpl_node_is_poisoning ( PRPL_NODE r )

Here is the caller graph for this function:

◆ rpl_node_is_root()

bool rpl_node_is_root ( PRPL_NODE r )

Here is the caller graph for this function:

◆ rpl_node_remove_all_parents()

void rpl_node_remove_all_parents ( NETSIM_ID d )

Definition at line 94 of file Neighbor.c.

Here is the caller graph for this function:

◆ rpl_node_remove_all_siblings()

void rpl_node_remove_all_siblings ( NETSIM_ID d )

Definition at line 153 of file Neighbor.c.

Here is the caller graph for this function:

◆ rpl_node_send_msg()

void rpl_node_send_msg	(	NETSIM_ID	ndevid,
		NetSim_PACKET *	packet
	)

Definition at line 418 of file RPL_Message.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_option_copy()

PRPL_OPTION rpl_option_copy ( PRPL_OPTION option )

Definition at line 114 of file RPL_Message.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_option_destroy()

void rpl_option_destroy ( PRPL_OPTION option )

Definition at line 96 of file RPL_Message.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_process_ctrl_msg()

void rpl_process_ctrl_msg ( )

Definition at line 433 of file RPL_Message.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_process_dao_msg()

void rpl_process_dao_msg ( )

Definition at line 104 of file DAO.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_process_dio_msg()

void rpl_process_dio_msg ( )

Definition at line 191 of file DIO.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_process_dis_msg()

void rpl_process_dis_msg ( )

Definition at line 40 of file DIS.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_send_dao()

void rpl_send_dao ( )

Definition at line 43 of file DAO.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_trickle_handle_i_timeout()

void rpl_trickle_handle_i_timeout ( )

Definition at line 86 of file Trickle.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_trickle_handle_t_timeout()

void rpl_trickle_handle_t_timeout ( )

Definition at line 76 of file Trickle.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rpl_trickle_reset()

void rpl_trickle_reset ( NETSIM_ID nDevId )

Definition at line 23 of file Trickle.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ seq_num_mapping_cleanup()

void seq_num_mapping_cleanup ( )

Definition at line 20 of file SequenceNumber.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ seq_num_mapping_get()

seq_num_mapping_t * seq_num_mapping_get ( NETSIM_IPAddress dodag_id )

Definition at line 65 of file SequenceNumber.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ start_as_root()

void start_as_root ( NETSIM_ID d )

Definition at line 197 of file RPL.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ start_dio_poisoning()

void start_dio_poisoning ( NETSIM_ID d )

Definition at line 60 of file DIO.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ update_dodag_config()

void update_dodag_config	(	NETSIM_ID	node,
		PRPL_CTRL_MSG	dio_pdu
	)

Definition at line 112 of file DODAG.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ update_neighbor_dio_message()

void update_neighbor_dio_message	(	PRPL_NEIGHBOR	neighbor,
		PRPL_CTRL_MSG	dio_pdu
	)

Definition at line 58 of file Neighbor.c.

Here is the call graph for this function:

Here is the caller graph for this function:

Data Structures

Macros

Typedefs

Enumerations

Functions

Macro Definition Documentation

◆ _NETSIM_RPL_H_

◆ DEFAULT_DAO_DELAY

◆ DEFAULT_DIO_INTERVAL_DOUBLINGS

◆ DEFAULT_DIO_INTERVAL_MIN

◆ DEFAULT_DIO_REDUNDANCY_CONSTANT

◆ DEFAULT_MIN_HOP_RANK_INCREASE

◆ GET_RPL_NODE

◆ INFINITE_RANK

◆ is_rpl_configured

◆ is_rpl_control_packet

◆ RPL_DAO_DELAY_DEFAULT

◆ RPL_DEFAULT_DAG_PREF

◆ RPL_DEFAULT_DAO_REMOVE_TIMEOUT

◆ RPL_DEFAULT_MOP

◆ RPL_DEFAULT_POISON_COUNT

◆ RPL_DIOIntervalDoublings_DEFAULT

◆ RPL_DIOIntervalMin_DEFAULT

◆ RPL_DIORedundancyConstant_DEFAULT

◆ RPL_DIS_INITIAL_DELAY_DEFAULT

◆ RPL_DIS_INTERVAL_DEFAULT

◆ RPL_DODAGPreference_DEFAULT

◆ RPL_INSTANCE_ID_DEFAULT

◆ RPL_IP_TO_STR

◆ RPL_MAXIMUM_RANK_INCREMENT

◆ RPL_MinHopRankIncrease_DEFAULT

◆ RPL_MINIMUM_RANK_INCREMENT

◆ rpl_node_has_parent

◆ rpl_node_has_sibling

◆ RPL_NODE_TYPE_DEFAULT

◆ RPL_RANK_ROOT

Typedef Documentation

◆ DODAGID

◆ PRPL_DODAG

◆ PRPL_NEIGHBOR

◆ PRPL_NODE

◆ PRPL_ROOT

◆ RPL_DODAG

◆ RPL_NEIGHBOR

◆ RPL_NODE

◆ RPL_RANK

◆ RPL_ROOT

◆ seq_num_mapping_t

Enumeration Type Documentation

◆ RPLNODETYPE

Function Documentation

◆ choose_parents_and_siblings()

◆ create_and_add_rpl_target_option()

◆ create_current_dio_message()

◆ create_dao_message()

◆ create_dis_message()

◆ create_root_dio_message()

◆ forget_neighbor_messages()

◆ free_all_neighbor()

◆ get_all_option_from_msg()

◆ get_global_root_info()

◆ get_option_from_msg()

◆ get_preferred_dodag_dio_pdu()

◆ join_dodag_iteration()

◆ print_rpl_log()

◆ rpl_add_route_to_parent()

◆ rpl_add_to_neighbor_list()

◆ rpl_dao_msg_copy()

◆ rpl_dao_msg_destroy()

◆ rpl_dao_route_timeout()

◆ rpl_delete_all_route()

◆ rpl_dio_msg_copy()

◆ rpl_dio_msg_destroy()

◆ rpl_dio_pdu_duplicate()

◆ rpl_dio_pdu_free()

◆ rpl_dis_msg_copy()

◆ rpl_dis_msg_destroy()

◆ rpl_dis_pdu_send()

◆ rpl_dodag_create()

◆ rpl_dodag_destroy()
