firewall.c File Reference

#include "main.h"
#include "List.h"
#include "../IP/IP.h"
#include "NetSim_utility.h"
#include "Firewall.h"

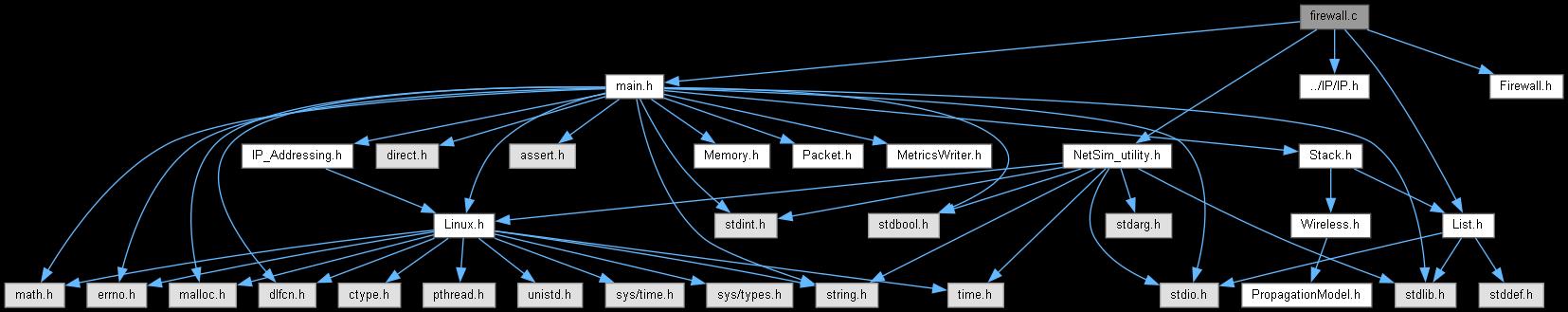

Include dependency graph for firewall.c:

Go to the source code of this file.

Data Structures
struct	stru_IP_ACL

Macros
#define	_NETSIM_FIREWALL_CODE_
#define	ACL_ALLOC()   (ptrACL)list_alloc(sizeof(NETSIM_ACL),offsetof(NETSIM_ACL,ele))
#define	ACL_NEXT(acl)   acl=(ptrACL)LIST_NEXT(acl)
#define	ACL_ADD(lacl, acl)   LIST_ADD_LAST((void**)lacl,acl)
#define	ACL_GET(d)   ((ptrACL)(GET_IP_DEVVAR(d)->ACL))
#define	ACL_SET(d, acl)   (GET_IP_DEVVAR(d)->ACL = (void*)acl)

Typedefs
typedef struct stru_IP_ACL	NETSIM_ACL
typedef struct stru_IP_ACL *	ptrACL

Functions
static ACL_ACTION	action_from_str (char *s)
static NETSIM_IPAddress	num_to_subnet (int num)
static int	perfix_from_mask (NETSIM_IPAddress mask)
static void	ip_from_str (char *s, NETSIM_IPAddress *ip, NETSIM_IPAddress *subnet)
static IP_PROTOCOL_NUMBER	ipprotocol_from_str (char *pro)
static char *	str_from_proto (IP_PROTOCOL_NUMBER num)
static ACL_TYPE	type_from_str (char *str)
static bool	check_mac_block (NETSIM_ID d, NETSIM_ID in)
void	acl_add_new_line (NETSIM_ID d, char *s)
static NETSIM_IPAddress	get_dest_ip (NetSim_PACKET *packet)
int	fn_NetSim_FirewallConfig (NETSIM_ID nDeviceId)
static ACL_ACTION	fn_NetSim_Firewall (NETSIM_ID nDeviceId, NETSIM_ID interfaceId, NetSim_PACKET *packet, ACL_TYPE type, bool isMAC)
ACL_ACTION	fn_NetSim_MAC_Firewall (NETSIM_ID nDeviceId, NETSIM_ID interfaceId, NetSim_PACKET *packet, ACL_TYPE type)
ACL_ACTION	fn_NetSim_NETWORK_Firewall (NETSIM_ID nDeviceId, NETSIM_ID interfaceId, NetSim_PACKET *packet, ACL_TYPE type)
void	fn_NetSim_Firewall_Free (NETSIM_ID d)
char *	acl_print (NETSIM_ID d)

Macro Definition Documentation

_NETSIM_FIREWALL_CODE_

#define _NETSIM_FIREWALL_CODE_

Definition at line 15 of file firewall.c.

ACL_ADD

#define ACL_ADD	(		lacl,
			acl
	)		LIST_ADD_LAST((void**)lacl,acl)

Definition at line 42 of file firewall.c.

ACL_ALLOC

#define ACL_ALLOC

(

)

(ptrACL)list_alloc(sizeof(NETSIM_ACL),offsetof(NETSIM_ACL,ele))

Definition at line 40 of file firewall.c.

ACL_GET

#define ACL_GET

(

d

)

((ptrACL)(GET_IP_DEVVAR(d)->ACL))

Definition at line 43 of file firewall.c.

ACL_NEXT

#define ACL_NEXT

(

acl

)

acl=(ptrACL)LIST_NEXT(acl)

Definition at line 41 of file firewall.c.

ACL_SET

#define ACL_SET	(		d,
			acl
	)		(GET_IP_DEVVAR(d)->ACL = (void*)acl)

Definition at line 44 of file firewall.c.

Typedef Documentation

NETSIM_ACL

typedef struct stru_IP_ACL NETSIM_ACL

ptrACL

typedef struct stru_IP_ACL* ptrACL

Function Documentation

acl_add_new_line()

void acl_add_new_line	(	NETSIM_ID	d,
		char *	s
	)

Definition at line 185 of file firewall.c.

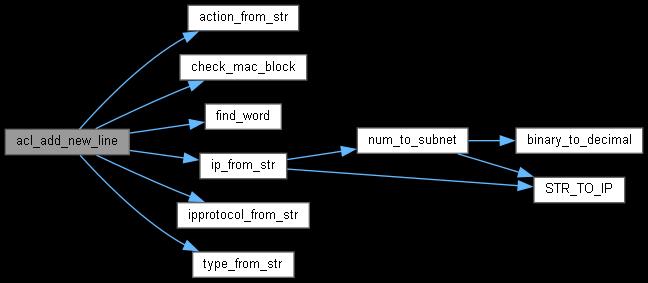

Here is the call graph for this function:

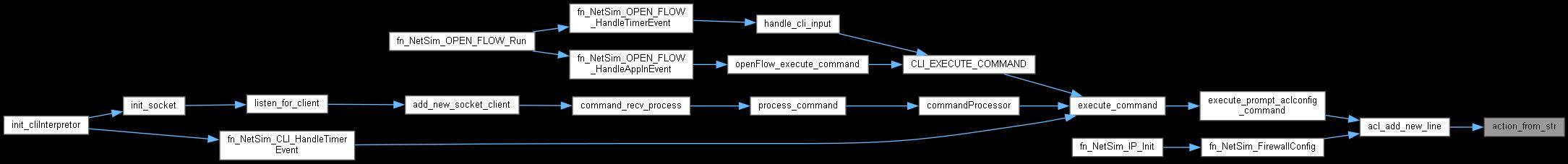

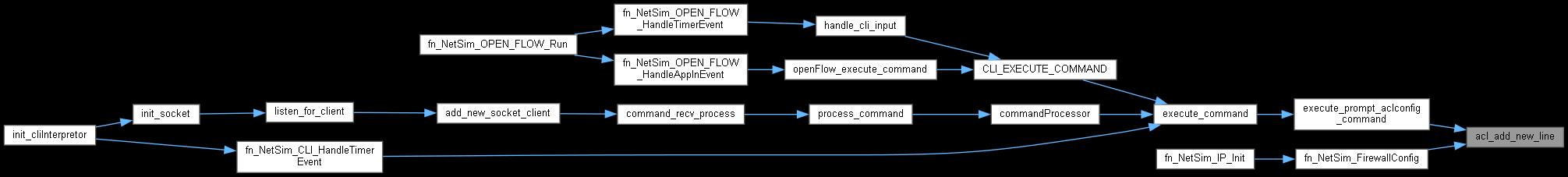

Here is the caller graph for this function:

acl_print()

char * acl_print

(

NETSIM_ID

d

)

Definition at line 346 of file firewall.c.

Here is the call graph for this function:

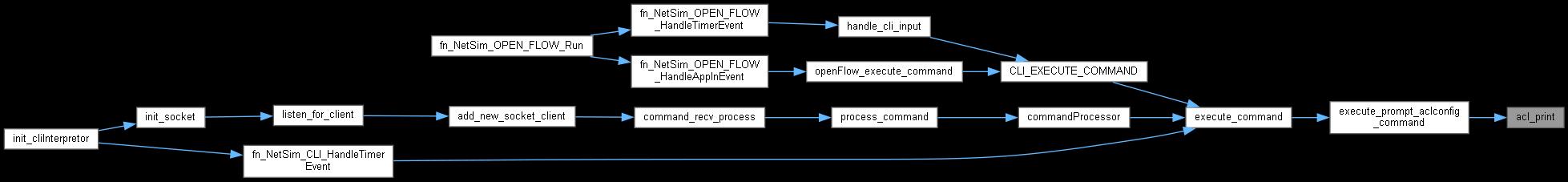

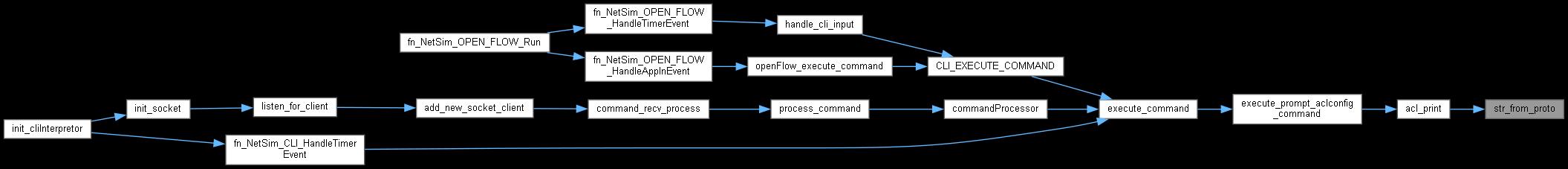

Here is the caller graph for this function:

action_from_str()

static ACL_ACTION action_from_str ( char *  s )

static

Definition at line 46 of file firewall.c.

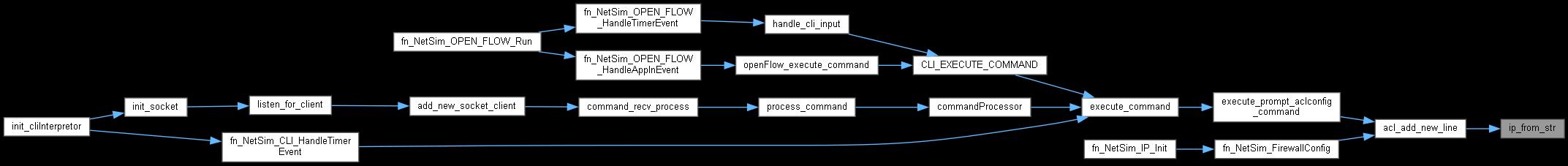

Here is the caller graph for this function:

check_mac_block()

static bool check_mac_block ( NETSIM_ID  d, NETSIM_ID  in  )

static

Definition at line 171 of file firewall.c.

Here is the caller graph for this function:

fn_NetSim_Firewall()

static ACL_ACTION fn_NetSim_Firewall ( NETSIM_ID  nDeviceId, NETSIM_ID  interfaceId, NetSim_PACKET *  packet, ACL_TYPE  type, bool  isMAC  )

static

This function is to check whether the particular packet is blocked or allowed by firewall

Definition at line 267 of file firewall.c.

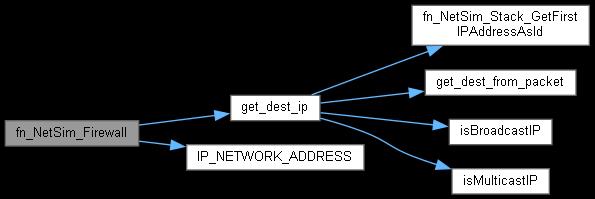

Here is the call graph for this function:

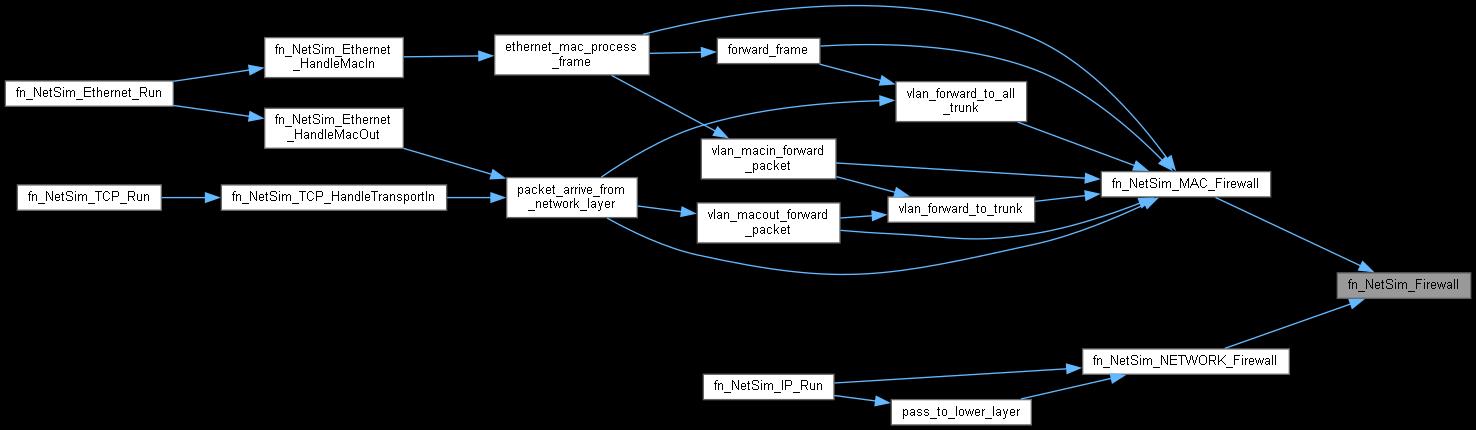

Here is the caller graph for this function:

fn_NetSim_Firewall_Free()

void fn_NetSim_Firewall_Free

(

NETSIM_ID

d

)

Definition at line 338 of file firewall.c.

Here is the caller graph for this function:

fn_NetSim_FirewallConfig()

int fn_NetSim_FirewallConfig

(

NETSIM_ID

nDeviceId

)

This function is to configure the firewall.

Definition at line 235 of file firewall.c.

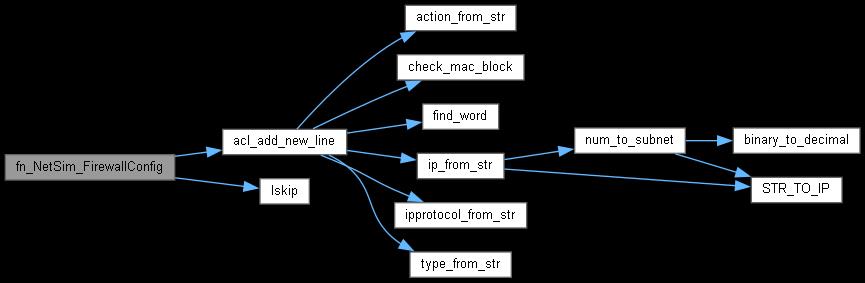

Here is the call graph for this function:

Here is the caller graph for this function:

fn_NetSim_MAC_Firewall()

ACL_ACTION fn_NetSim_MAC_Firewall	(	NETSIM_ID	nDeviceId,
		NETSIM_ID	interfaceId,
		NetSim_PACKET *	packet,
		ACL_TYPE	type
	)

Definition at line 328 of file firewall.c.

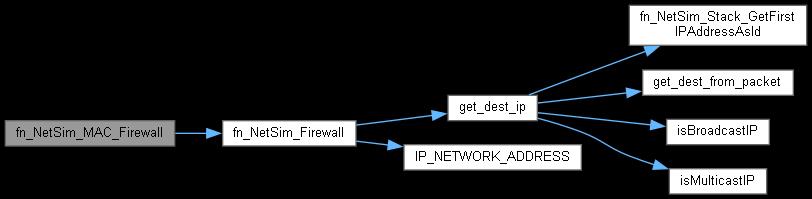

Here is the call graph for this function:

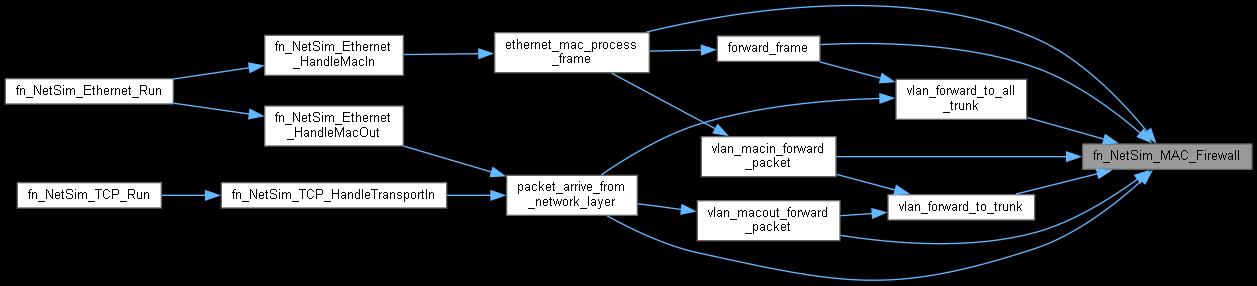

Here is the caller graph for this function:

fn_NetSim_NETWORK_Firewall()

ACL_ACTION fn_NetSim_NETWORK_Firewall	(	NETSIM_ID	nDeviceId,
		NETSIM_ID	interfaceId,
		NetSim_PACKET *	packet,
		ACL_TYPE	type
	)

Definition at line 333 of file firewall.c.

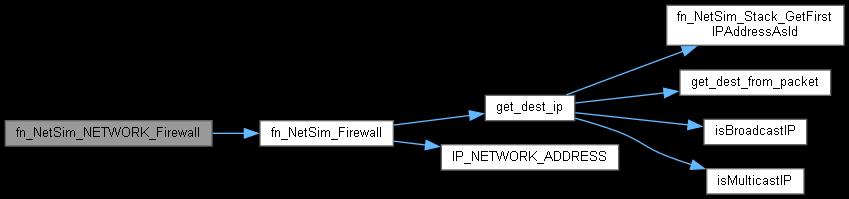

Here is the call graph for this function:

Here is the caller graph for this function:

get_dest_ip()

static NETSIM_IPAddress get_dest_ip ( NetSim_PACKET *  packet )

static

Definition at line 217 of file firewall.c.

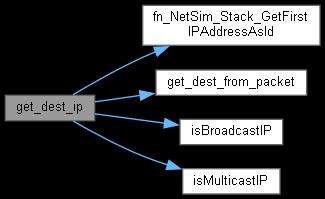

Here is the call graph for this function:

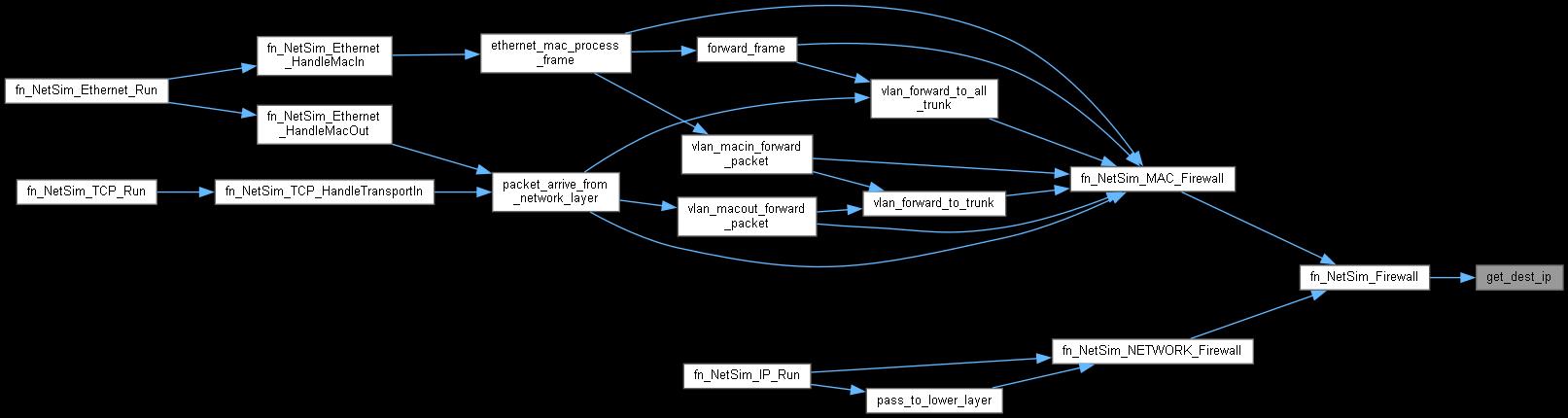

Here is the caller graph for this function:

ip_from_str()

static void ip_from_str ( char *  s, NETSIM_IPAddress *  ip, NETSIM_IPAddress *  subnet  )

static

Definition at line 103 of file firewall.c.

Here is the call graph for this function:

Here is the caller graph for this function:

ipprotocol_from_str()

static IP_PROTOCOL_NUMBER ipprotocol_from_str ( char *  pro )

static

Definition at line 129 of file firewall.c.

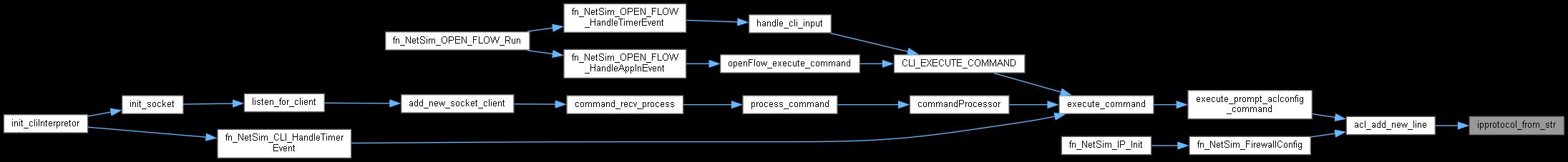

Here is the caller graph for this function:

num_to_subnet()

static NETSIM_IPAddress num_to_subnet ( int  num )

static

Definition at line 57 of file firewall.c.

Here is the call graph for this function:

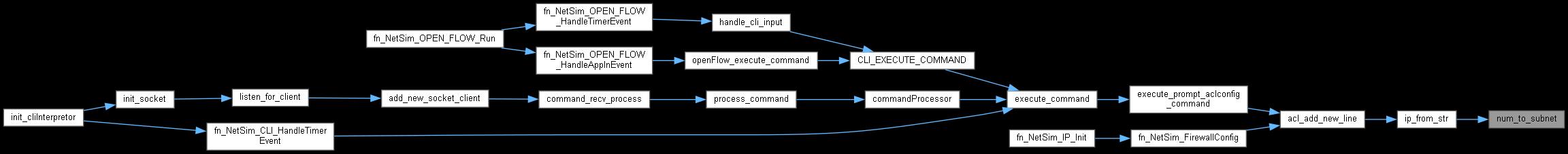

Here is the caller graph for this function:

perfix_from_mask()

static int perfix_from_mask ( NETSIM_IPAddress  mask )

static

Definition at line 95 of file firewall.c.

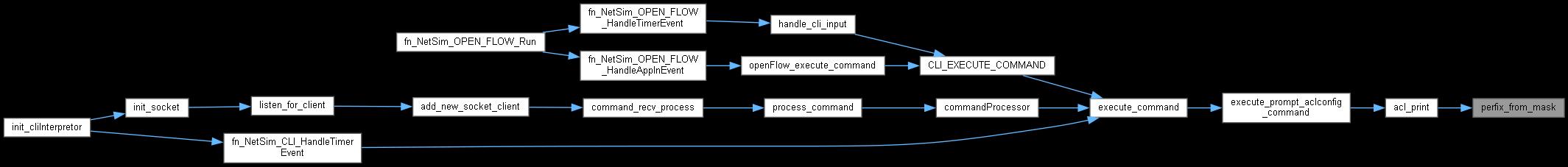

Here is the caller graph for this function:

str_from_proto()

static char * str_from_proto ( IP_PROTOCOL_NUMBER  num )

static

Definition at line 148 of file firewall.c.

Here is the caller graph for this function:

type_from_str()

static ACL_TYPE type_from_str ( char *  str )

static

Definition at line 161 of file firewall.c.

Here is the caller graph for this function:
