Arp.c File Reference

#include "main.h"
#include "ARP.h"

Include dependency graph for Arp.c:

Go to the source code of this file.

Macros
#define	_CRT_SECURE_NO_DEPRECATE

Functions
int	fn_NetSim_ARP_Run ()
	Function to run ARP protocol. More...
int	fn_NetSim_ARP_Init (struct stru_NetSim_Network *NETWORK_Formal, NetSim_EVENTDETAILS *pstruEventDetails_Formal, char *pszAppPath_Formal, char *pszWritePath_Formal, int nVersion_Type, void **fnPointer)
	Function for Intializing ARP protocol. More...
int	fn_NetSim_ARP_Finish ()
	Function to free the ARP protocol variable and Unload the primitives. More...
char *	fn_NetSim_ARP_Trace (int nSubEvent)
	Return the subevent name with respect to the subevent number for writting event trace. More...
int	fn_NetSim_ARP_Configure (void **var)
	Function for configuring ARP parameters. More...
int	fn_NetSim_ARP_FreePacket (NetSim_PACKET *pstruPacket)
	Function to free the allocated memory for the ARP packet. More...
int	fn_NetSim_ARP_CopyPacket (NetSim_PACKET *pstruDestPacket, NetSim_PACKET *pstruSrcPacket)
	Function to copy the ARP packet from source to destination. More...
int	fn_NetSim_ARP_Metrics (PMETRICSWRITER writer)
char *	fn_NetSim_ARP_ConfigPacketTrace ()
char *	fn_NetSim_ARP_WritePacketTrace (NetSim_PACKET *pstruPacket, char **ppszTrace)
int	fn_Netsim_ARP_CheckDestinationDevice (NetSim_EVENTDETAILS *pstruEventDetails, struct stru_NetSim_Network *NETWORK)

Macro Definition Documentation

_CRT_SECURE_NO_DEPRECATE

#define _CRT_SECURE_NO_DEPRECATE

Definition at line 15 of file Arp.c.

Function Documentation

fn_Netsim_ARP_CheckDestinationDevice()

int fn_Netsim_ARP_CheckDestinationDevice	(	NetSim_EVENTDETAILS *	pstruEventDetails,
		struct stru_NetSim_Network *	NETWORK
	)

This function is called for NETWORK_IN_EVENT with packet type = REQUEST_PACKET. Check the request packet received device is the destination. If so it add the GENERATE ARP REPLY sub event, else update the table and drop the request packet.

Definition at line 176 of file Arp.c.

Here is the call graph for this function:

Here is the caller graph for this function:

fn_NetSim_ARP_ConfigPacketTrace()

char * fn_NetSim_ARP_ConfigPacketTrace

(

)

This function will return the string to write packet trace heading.

Definition at line 157 of file Arp.c.

fn_NetSim_ARP_Configure()

int fn_NetSim_ARP_Configure

(

void **

var

)

Function for configuring ARP parameters.

This function is called by NetworkStack.dll, while configuring the device for ARP protocol.

Definition at line 128 of file Arp.c.

Here is the call graph for this function:

fn_NetSim_ARP_CopyPacket()

int fn_NetSim_ARP_CopyPacket	(	NetSim_PACKET *	pstruDestPacket,
		NetSim_PACKET *	pstruSrcPacket
	)

Function to copy the ARP packet from source to destination.

This function is called by NetworkStack.dll, to copy the ARP protocol details from source packet to destination.

Definition at line 143 of file Arp.c.

Here is the call graph for this function:

fn_NetSim_ARP_Finish()

int fn_NetSim_ARP_Finish

(

)

Function to free the ARP protocol variable and Unload the primitives.

This function is called by NetworkStack.dll, once simulation end to free the allocated memory for the network.

Definition at line 111 of file Arp.c.

Here is the call graph for this function:

fn_NetSim_ARP_FreePacket()

int fn_NetSim_ARP_FreePacket

(

NetSim_PACKET *

pstruPacket

)

Function to free the allocated memory for the ARP packet.

This function is called by NetworkStack.dll, to free the ARP protocol.

Definition at line 135 of file Arp.c.

Here is the call graph for this function:

fn_NetSim_ARP_Init()

int fn_NetSim_ARP_Init	(	struct stru_NetSim_Network *	NETWORK_Formal,
		NetSim_EVENTDETAILS *	pstruEventDetails_Formal,
		char *	pszAppPath_Formal,
		char *	pszWritePath_Formal,
		int	nVersion_Type,
		void **	fnPointer
	)

Function for Intializing ARP protocol.

The Following functions are present in the Arp.lib.
so NetworkStack.dll can not call Arp.lib. It is calling Arp.dll.
From Arp.dll, Arp.lib functions are called.

Definition at line 99 of file Arp.c.

Here is the call graph for this function:

fn_NetSim_ARP_Metrics()

int fn_NetSim_ARP_Metrics

(

PMETRICSWRITER

writer

)

This function write the Metrics

Definition at line 150 of file Arp.c.

fn_NetSim_ARP_Run()

int fn_NetSim_ARP_Run

(

)

Function to run ARP protocol.

This function is called by NetworkStack.dll, whenever the event gets triggered
inside the NetworkStack.dll for the ARP protocol

Definition at line 22 of file Arp.c.

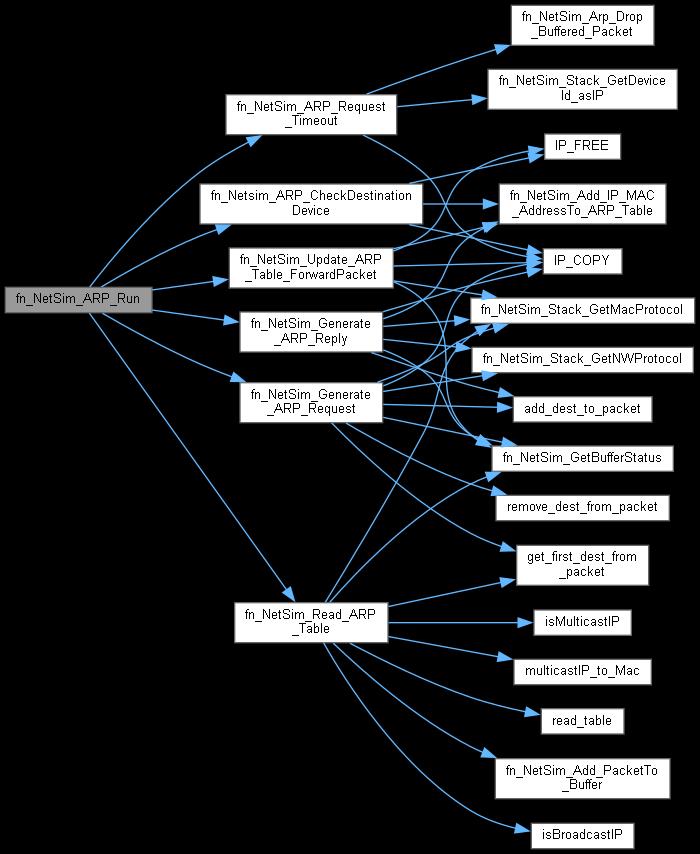

Here is the call graph for this function:

fn_NetSim_ARP_Trace()

char * fn_NetSim_ARP_Trace

(

int

nSubEvent

)

Return the subevent name with respect to the subevent number for writting event trace.

This function is called by NetworkStack.dll, while writing the evnt trace to get the sub event as a string.

Definition at line 120 of file Arp.c.

Here is the call graph for this function:

fn_NetSim_ARP_WritePacketTrace()

char * fn_NetSim_ARP_WritePacketTrace	(	NetSim_PACKET *	pstruPacket,
		char **	ppszTrace
	)

This function will return the string to write packet trace.

Definition at line 164 of file Arp.c.
