RIP.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	stru_Router_RIP_Routing_database
	Routing database structure Reference : RFC 2453, November 1998, Page 8. More...
struct	stru_NetSim_RIP_Packet
struct	stru_RIPEntry
struct	stru_RIP

Macros
#define	RIP_PACKET_SIZE_WITH_HEADER   512
#define	RIP_PORT   520
#define	EXPIRED_ROUTE   16
#define	_RIP_Trace

Typedefs
typedef struct stru_NetSim_Router	DEVICE_ROUTER
typedef struct stru_Router_Buffer	BUFFER_ROUTER
typedef struct stru_NetSim_RIP_Packet	RIP_PACKET
typedef struct stru_Router_RIP_Routing_database	RIP_ROUTING_DATABASE
typedef struct stru_RIP_TempRouting_database	RIP_TEMPROUTING_DATABASE
typedef struct stru_RIPEntry	RIP_ENTRY
typedef enum enum_RIP_command	RIP_COMMAND
typedef enum enum_RIP_Subevent_Type	SUB_EVENT

Enumerations
enum	enum_RIP_Subevent_Type { SEND_RIP_UPDATE_PKT =APP_PROTOCOL_RIP*100+1 , RIP_TIMEOUT , RIP_GARBAGE_COLLECTION , ROUTING_TABLE_UPDATION }
enum	enum_RIP_command { REQUEST =1 , RESPONSE }
	This enumeration is to denote the command field in RIP packet. More...
enum	enum_RIP_ControlPacketType { RIP_Packet = APP_PROTOCOL_RIP*100+1 }

Functions
int	fn_NetSim_RIP_InitialTable_Creation (NETSIM_ID nDeviceId)
	This function is for forming the initial table for each router More...
int	fn_NetSim_RIP_UpdatingEntriesinRoutingDatabase (struct stru_NetSim_Network *, int, NETSIM_IPAddress, NETSIM_IPAddress, NETSIM_IPAddress, NETSIM_ID, double, unsigned int)
	This function is used to update the database of router. More...
	_declspec (dllexport) int fn_NetSim_RIP_ReceivingOf_RIP_Message(struct stru_NetSim_Network *
	This function is used receive the updates from neighbor routers. More...
NetSim_EVENTDETAILS NetSim_EVENTDETAILS *int	fn_NetSim_RIP_Run_F ()
int	fn_NetSim_RIPTrace (struct stru_NetSim_Network *, NETSIM_ID, int)
int	fn_NetSim_RIP_Init_F (struct stru_NetSim_Network *, NetSim_EVENTDETAILS *, char *, char *, int, void **fnPointer)
int	fn_NetSim_RIP_Finish_F ()
char *	fn_NetSim_RIP_Trace_F (int nSubEvent)
int	fn_NetSim_RIP_FreePacket_F (NetSim_PACKET *)
NetSim_PACKET *int	fn_NetSim_RIP_CopyPacket_F (NetSim_PACKET *, NetSim_PACKET *)
int	fn_NetSim_RIP_Metrics_F (PMETRICSWRITER metricsWriter)
int	fn_NetSim_RIP_DistanceVectorAlgorithm (struct stru_NetSim_Network *NETWORK, NetSim_EVENTDETAILS *pstruEventDetails)
int	fn_NetSim_RIP_Update_Timer (struct stru_NetSim_Network *pstruNETWORK, NetSim_EVENTDETAILS *pstruEventDetails)
int	fn_NetSim_RIP_Timeout_Timer (struct stru_NetSim_Network *pstruNETWORK, NetSim_EVENTDETAILS *pstruEventDetails)
int	fn_NetSim_RIP_Garbage_Collection_Timer (struct stru_NetSim_Network *pstruNETWORK, NetSim_EVENTDETAILS *pstruEventDetails)
bool	isRIPConfigured (NETSIM_ID d)
DEVICE_ROUTER *	get_RIP_var (NETSIM_ID d)
void	set_RIP_var (NETSIM_ID d, DEVICE_ROUTER *rip)

Variables
FILE *	fpRIPTrace
NetSim_EVENTDETAILS *	pstruEventDetails_Formal
NetSim_EVENTDETAILS char *	pszAppPath_Formal
NetSim_EVENTDETAILS char char *	pszWritePath_Formal
NetSim_EVENTDETAILS char char int	nVersion_Type
NetSim_EVENTDETAILS char char int void **	fnPointer

Macro Definition Documentation

_RIP_Trace

#define _RIP_Trace

Definition at line 32 of file RIP.h.

EXPIRED_ROUTE

#define EXPIRED_ROUTE   16

Definition at line 31 of file RIP.h.

RIP_PACKET_SIZE_WITH_HEADER

#define RIP_PACKET_SIZE_WITH_HEADER   512

Definition at line 28 of file RIP.h.

RIP_PORT

#define RIP_PORT   520

Definition at line 29 of file RIP.h.

Typedef Documentation

BUFFER_ROUTER

typedef struct stru_Router_Buffer BUFFER_ROUTER

Definition at line 37 of file RIP.h.

DEVICE_ROUTER

typedef struct stru_NetSim_Router DEVICE_ROUTER

Definition at line 36 of file RIP.h.

RIP_COMMAND

typedef enum enum_RIP_command RIP_COMMAND

Definition at line 42 of file RIP.h.

RIP_ENTRY

typedef struct stru_RIPEntry RIP_ENTRY

Definition at line 41 of file RIP.h.

RIP_PACKET

typedef struct stru_NetSim_RIP_Packet RIP_PACKET

Definition at line 38 of file RIP.h.

RIP_ROUTING_DATABASE

typedef struct stru_Router_RIP_Routing_database RIP_ROUTING_DATABASE

Definition at line 39 of file RIP.h.

RIP_TEMPROUTING_DATABASE

typedef struct stru_RIP_TempRouting_database RIP_TEMPROUTING_DATABASE

Definition at line 40 of file RIP.h.

SUB_EVENT

typedef enum enum_RIP_Subevent_Type SUB_EVENT

Definition at line 43 of file RIP.h.

Enumeration Type Documentation

enum_RIP_command

enum enum_RIP_command

This enumeration is to denote the command field in RIP packet.

Enumerator
REQUEST
RESPONSE

Definition at line 58 of file RIP.h.

enum_RIP_ControlPacketType

enum enum_RIP_ControlPacketType

Enumeration for App Layer Packet Type

Enumerator
RIP_Packet

Definition at line 66 of file RIP.h.

enum_RIP_Subevent_Type

enum enum_RIP_Subevent_Type

Enumeration for RIP Sub event Types

Enumerator
SEND_RIP_UPDATE_PKT
RIP_TIMEOUT
RIP_GARBAGE_COLLECTION
ROUTING_TABLE_UPDATION

Definition at line 48 of file RIP.h.

Function Documentation

_declspec()

_declspec

(

dllexport

)

This function is used receive the updates from neighbor routers.

Function to copy the RIP packet from source to destination.

Function to free the allocated memory for the RIP packet.

Return the subevent name with respect to the subevent number for writting event trace.

Function to free the RIP protocol variable and Unload the primitives.

This function is used to trigger the update.

Function for configuring RIP parameters

Function for Intializing RIP protocol

Function to run RIP protocol

fn_NetSim_RIP_CopyPacket_F()

NetSim_PACKET *int fn_NetSim_RIP_CopyPacket_F	(	NetSim_PACKET *	,
		NetSim_PACKET *
	)

Here is the caller graph for this function:

fn_NetSim_RIP_DistanceVectorAlgorithm()

int fn_NetSim_RIP_DistanceVectorAlgorithm	(	struct stru_NetSim_Network *	NETWORK,
		NetSim_EVENTDETAILS *	pstruEventDetails
	)

This function runs the distance vector routing algorithm for optimized routing of packets from
source to destination. The optimization is done per a particular metric, i.e the shortest distance.
This algorithm runs inside a single Autonomous System

Definition at line 27 of file DistanceVectorAlgorithm.c.

Here is the call graph for this function:

Here is the caller graph for this function:

fn_NetSim_RIP_Finish_F()

int fn_NetSim_RIP_Finish_F

(

)

Here is the caller graph for this function:

fn_NetSim_RIP_FreePacket_F()

int fn_NetSim_RIP_FreePacket_F

(

NetSim_PACKET *

)

Here is the caller graph for this function:

fn_NetSim_RIP_Garbage_Collection_Timer()

int fn_NetSim_RIP_Garbage_Collection_Timer	(	struct stru_NetSim_Network *	pstruNETWORK,
		NetSim_EVENTDETAILS *	pstruEventDetails
	)

Until the garbage-collection timer expires, the route is included in all
updates sent by the router. When the garbage collection timer expires, the route is deleted
from the routing table

Definition at line 27 of file GarbageCollectionTimer.c.

Here is the call graph for this function:

Here is the caller graph for this function:

fn_NetSim_RIP_Init_F()

int fn_NetSim_RIP_Init_F	(	struct stru_NetSim_Network *	,
		NetSim_EVENTDETAILS *	,
		char *	,
		char *	,
		int	,
		void **	fnPointer
	)

Here is the caller graph for this function:

fn_NetSim_RIP_InitialTable_Creation()

int fn_NetSim_RIP_InitialTable_Creation

(

NETSIM_ID

nDeviceId

)

This function is for forming the initial table for each router

fn_NetSim_RIP_Metrics_F()

int fn_NetSim_RIP_Metrics_F

(

PMETRICSWRITER

metricsWriter

)

Here is the caller graph for this function:

fn_NetSim_RIP_Run_F()

NetSim_EVENTDETAILS NetSim_EVENTDETAILS *int fn_NetSim_RIP_Run_F

(

)

This function is used to execute the RIP functionalities.

Definition at line 223 of file RIP.c.

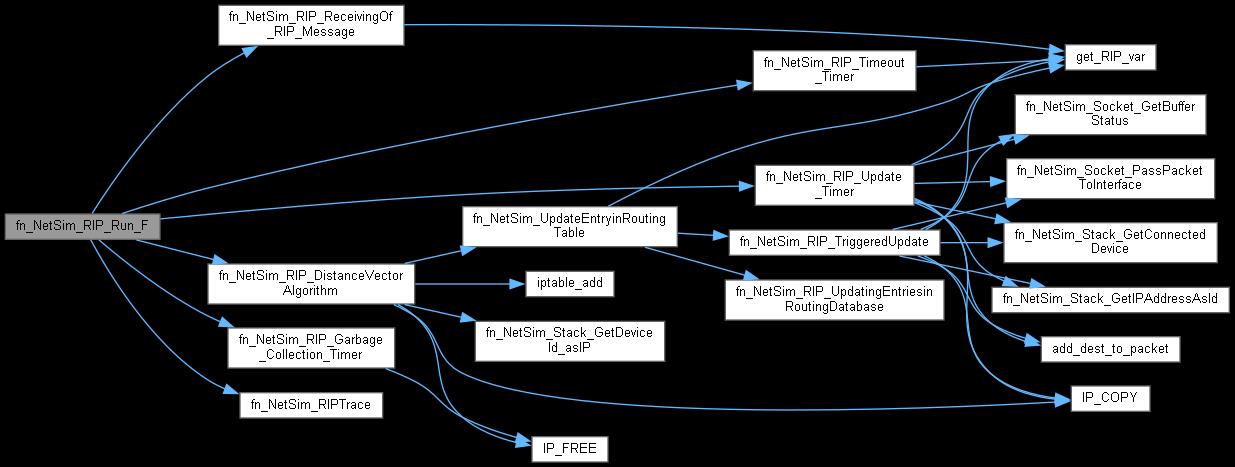

Here is the call graph for this function:

Here is the caller graph for this function:

fn_NetSim_RIP_Timeout_Timer()

int fn_NetSim_RIP_Timeout_Timer	(	struct stru_NetSim_Network *	pstruNETWORK,
		NetSim_EVENTDETAILS *	pstruEventDetails
	)

The timeout is initialized when a route is established, and any time
an update message is received for the route. If 180 seconds elapse from
the last time the timeout was initialized, the route is considered to
have expired

Definition at line 25 of file TimeoutTimer.c.

Here is the call graph for this function:

Here is the caller graph for this function:

fn_NetSim_RIP_Trace_F()

char * fn_NetSim_RIP_Trace_F

(

int

nSubEvent

)

Here is the caller graph for this function:

fn_NetSim_RIP_Update_Timer()

int fn_NetSim_RIP_Update_Timer	(	struct stru_NetSim_Network *	pstruNETWORK,
		NetSim_EVENTDETAILS *	pstruEventDetails
	)

Every 30 seconds, the RIP process is awakened to send an unsolicited response message
containing the complete routing table to every neighboring router.

    1. Create the RIP packet
    2. Add the RIP packets in the WAN ports of the current router
    3. Add the packet in the socket buffer for transmitting the RIP packet

Definition at line 26 of file UpdateTimer.c.

Here is the call graph for this function:

Here is the caller graph for this function:

fn_NetSim_RIP_UpdatingEntriesinRoutingDatabase()

int fn_NetSim_RIP_UpdatingEntriesinRoutingDatabase	(	struct stru_NetSim_Network *	,
		int	,
		NETSIM_IPAddress	,
		NETSIM_IPAddress	,
		NETSIM_IPAddress	,
		NETSIM_ID	,
		double	,
		unsigned int
	)

This function is used to update the database of router.

Here is the caller graph for this function:

fn_NetSim_RIPTrace()

int fn_NetSim_RIPTrace	(	struct stru_NetSim_Network *	,
		NETSIM_ID	,
		int
	)

Here is the caller graph for this function:

get_RIP_var()

DEVICE_ROUTER * get_RIP_var

(

NETSIM_ID

d

)

Here is the caller graph for this function:

isRIPConfigured()

bool isRIPConfigured

(

NETSIM_ID

d

)

set_RIP_var()

void set_RIP_var	(	NETSIM_ID	d,
		DEVICE_ROUTER *	rip
	)

Variable Documentation

fnPointer

NetSim_EVENTDETAILS char char int void** fnPointer

Definition at line 178 of file RIP.h.

fpRIPTrace

FILE* fpRIPTrace

Definition at line 33 of file RIP.h.

nVersion_Type

NetSim_EVENTDETAILS char char int nVersion_Type

Definition at line 178 of file RIP.h.

pstruEventDetails_Formal

NetSim_EVENTDETAILS* pstruEventDetails_Formal

Definition at line 178 of file RIP.h.

pszAppPath_Formal

NetSim_EVENTDETAILS char* pszAppPath_Formal

Definition at line 178 of file RIP.h.

pszWritePath_Formal

NetSim_EVENTDETAILS char char* pszWritePath_Formal

Definition at line 178 of file RIP.h.
