CUBIC.c File Reference

#include "main.h"
#include "TCP.h"
#include <intrin.h>

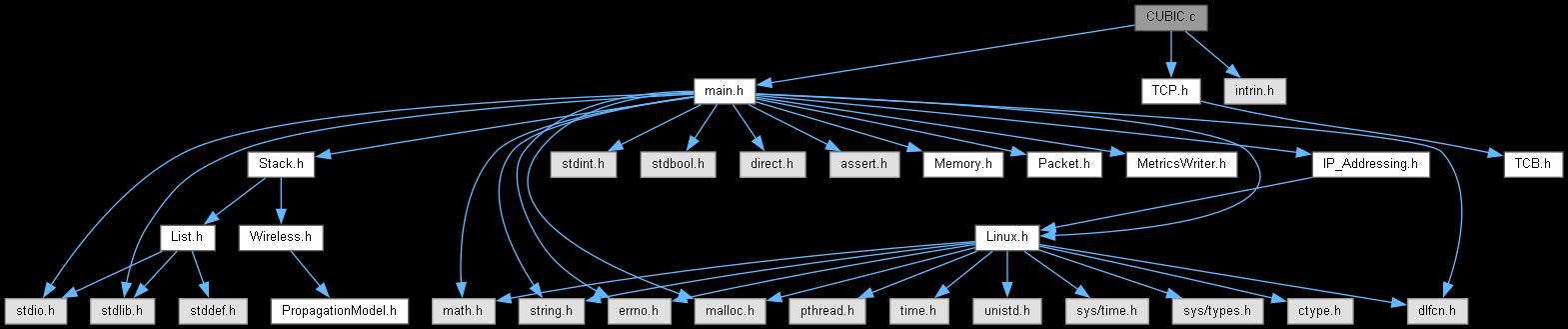

Include dependency graph for CUBIC.c:

Go to the source code of this file.

Data Structures
struct	stru_cubic
struct	stru_congestion_var

Macros
#define	clamp(val, lo, hi)   min(max(val, lo), hi)
#define	tcp_time_stamp   ((UINT32)(pstruEventDetails->dEventTime/1000))
#define	CUBIC_HZ   1024
#define	BICTCP_BETA_SCALE
#define	BICTCP_HZ   10 /* BIC HZ 2^10 = 1024 */
#define	HYSTART_ACK_TRAIN   0x1
#define	HYSTART_DELAY   0x2
#define	HYSTART_MIN_SAMPLES   8
#define	HYSTART_DELAY_MIN   (4U<<3)
#define	HYSTART_DELAY_MAX   (16U<<3)
#define	HYSTART_DELAY_THRESH(x)   clamp(x, HYSTART_DELAY_MIN, HYSTART_DELAY_MAX)
#define	do_div(x, y)   (x=x/y)
#define	after(seq2, seq1)   before(seq1, seq2)

Typedefs
typedef struct stru_cubic	CUBIC
typedef struct stru_cubic *	PCUBIC
typedef struct stru_congestion_var	CONGESTIONVAR
typedef struct stru_congestion_var *	PCONGESTIONVAR

Functions
static PCONGESTIONVAR	get_congestionvar (PNETSIM_SOCKET s)
static void	set_congestionvar (PNETSIM_SOCKET s, PCONGESTIONVAR data)
static void	set_cwnd (PNETSIM_SOCKET s, UINT32 newcwnd)
static UINT32	get_cwnd (PNETSIM_SOCKET s)
static void	set_ssthres (PNETSIM_SOCKET s, UINT32 newssthres)
static UINT32	get_ssthres (PNETSIM_SOCKET s)
static void	increase_cwnd (PNETSIM_SOCKET s, UINT16 increase)
static bool	tcp_in_slow_start (PNETSIM_SOCKET s)
static bool	isDupAck (PNETSIM_SOCKET s, PCONGESTIONVAR var)
static UINT64	div64_u64 (UINT64 dividend, UINT64 divisor)
static bool	before (UINT32 seq1, UINT32 seq2)
static UINT	count_bit (UINT64 n)
static void	slowStart (PNETSIM_SOCKET s, PCONGESTIONVAR var)
static void	cubictcp_reset (PCUBIC ca)
static UINT32	cubictcp_clock (void)
static void	cubictcp_hystart_reset (PNETSIM_SOCKET sk)
static void	cubictcp_init (PNETSIM_SOCKET sk, PTCP_DEV_VAR tcp)
void	init_cubic (PNETSIM_SOCKET s)
static UINT32	cubic_root (UINT64 a)
static UINT32	cubictcp_recalc_ssthresh (PNETSIM_SOCKET sk)
static void	cubictcp_update (PNETSIM_SOCKET sk, UINT32 acked)
static void	cubictcp_cong_avoid (PNETSIM_SOCKET sk, UINT32 segmentAcked)
static void	hystart_update (PNETSIM_SOCKET sk, UINT32 delay)
static void	cubictcp_acked (PNETSIM_SOCKET sk)
static void	cubictcp_fastretransmit (PNETSIM_SOCKET s)
static void	FastRecovery (PNETSIM_SOCKET s, PCONGESTIONVAR var)
void	cubic_ack_received (PNETSIM_SOCKET s)

Variables
static int	fast_convergence = 1
static int	tcp_friendliness = 1
static int	hystart = 1
static int	hystart_detect = HYSTART_ACK_TRAIN | HYSTART_DELAY
static UINT32	cube_rtt_scale
static UINT32	beta_scale
static UINT32	cube_factor

Macro Definition Documentation

after

#define after	(		seq2,
			seq1
	)		before(seq1, seq2)

Definition at line 219 of file CUBIC.c.

BICTCP_BETA_SCALE

#define BICTCP_BETA_SCALE

Value:

1024    /* Scale factor beta calculation
* max_cwnd = snd_cwnd * beta
*/

Definition at line 29 of file CUBIC.c.

BICTCP_HZ

#define BICTCP_HZ   10 /* BIC HZ 2^10 = 1024 */

Definition at line 30 of file CUBIC.c.

clamp

#define clamp	(		val,
			lo,
			hi
	)		min(max(val, lo), hi)

Definition at line 24 of file CUBIC.c.

CUBIC_HZ

#define CUBIC_HZ   1024

Definition at line 27 of file CUBIC.c.

do_div

#define do_div	(		x,
			y
	)		(x=x/y)

Definition at line 213 of file CUBIC.c.

HYSTART_ACK_TRAIN

#define HYSTART_ACK_TRAIN   0x1

Definition at line 33 of file CUBIC.c.

HYSTART_DELAY

#define HYSTART_DELAY   0x2

Definition at line 34 of file CUBIC.c.

HYSTART_DELAY_MAX

#define HYSTART_DELAY_MAX   (16U<<3)

Definition at line 39 of file CUBIC.c.

HYSTART_DELAY_MIN

#define HYSTART_DELAY_MIN   (4U<<3)

Definition at line 38 of file CUBIC.c.

HYSTART_DELAY_THRESH

#define HYSTART_DELAY_THRESH

(

x

)

clamp(x, HYSTART_DELAY_MIN, HYSTART_DELAY_MAX)

Definition at line 40 of file CUBIC.c.

HYSTART_MIN_SAMPLES

#define HYSTART_MIN_SAMPLES   8

Definition at line 37 of file CUBIC.c.

tcp_time_stamp

#define tcp_time_stamp   ((UINT32)(pstruEventDetails->dEventTime/1000))

Definition at line 26 of file CUBIC.c.

Typedef Documentation

CONGESTIONVAR

typedef struct stru_congestion_var CONGESTIONVAR

CUBIC

typedef struct stru_cubic CUBIC

PCONGESTIONVAR

typedef struct stru_congestion_var * PCONGESTIONVAR

PCUBIC

typedef struct stru_cubic * PCUBIC

Function Documentation

before()

static bool before ( UINT32  seq1, UINT32  seq2  )

inlinestatic

Definition at line 215 of file CUBIC.c.

count_bit()

static UINT count_bit ( UINT64  n )

static

Definition at line 221 of file CUBIC.c.

Here is the caller graph for this function:

cubic_ack_received()

void cubic_ack_received

(

PNETSIM_SOCKET

s

)

Definition at line 693 of file CUBIC.c.

cubic_root()

static UINT32 cubic_root ( UINT64  a )

static

Definition at line 349 of file CUBIC.c.

Here is the call graph for this function:

Here is the caller graph for this function:

cubictcp_acked()

static void cubictcp_acked ( PNETSIM_SOCKET  sk )

static

Definition at line 627 of file CUBIC.c.

Here is the call graph for this function:

cubictcp_clock()

static UINT32 cubictcp_clock ( void  )

inlinestatic

Definition at line 258 of file CUBIC.c.

cubictcp_cong_avoid()

static void cubictcp_cong_avoid ( PNETSIM_SOCKET  sk, UINT32  segmentAcked  )

static

Definition at line 541 of file CUBIC.c.

cubictcp_fastretransmit()

static void cubictcp_fastretransmit ( PNETSIM_SOCKET  s )

static

Definition at line 642 of file CUBIC.c.

cubictcp_hystart_reset()

static void cubictcp_hystart_reset ( PNETSIM_SOCKET  sk )

inlinestatic

Definition at line 263 of file CUBIC.c.

cubictcp_init()

static void cubictcp_init ( PNETSIM_SOCKET  sk, PTCP_DEV_VAR  tcp  )

static

Definition at line 273 of file CUBIC.c.

cubictcp_recalc_ssthresh()

static UINT32 cubictcp_recalc_ssthresh ( PNETSIM_SOCKET  sk )

static

Definition at line 393 of file CUBIC.c.

cubictcp_reset()

static void cubictcp_reset ( PCUBIC  ca )

inlinestatic

Definition at line 243 of file CUBIC.c.

cubictcp_update()

static void cubictcp_update ( PNETSIM_SOCKET  sk, UINT32  acked  )

inlinestatic

Definition at line 416 of file CUBIC.c.

Here is the call graph for this function:

div64_u64()

static UINT64 div64_u64 ( UINT64  dividend, UINT64  divisor  )

inlinestatic

div64_u64 - unsigned 64bit divide with 64bit divisor

Definition at line 208 of file CUBIC.c.

Here is the caller graph for this function:

FastRecovery()

static void FastRecovery ( PNETSIM_SOCKET  s, PCONGESTIONVAR  var  )

static

Definition at line 686 of file CUBIC.c.

get_congestionvar()

static PCONGESTIONVAR get_congestionvar ( PNETSIM_SOCKET  s )

inlinestatic

Definition at line 108 of file CUBIC.c.

Here is the caller graph for this function:

get_cwnd()

static UINT32 get_cwnd ( PNETSIM_SOCKET  s )

static

Definition at line 133 of file CUBIC.c.

Here is the caller graph for this function:

get_ssthres()

static UINT32 get_ssthres ( PNETSIM_SOCKET  s )

static

Definition at line 161 of file CUBIC.c.

hystart_update()

static void hystart_update ( PNETSIM_SOCKET  sk, UINT32  delay  )

static

Definition at line 578 of file CUBIC.c.

Here is the caller graph for this function:

increase_cwnd()

static void increase_cwnd ( PNETSIM_SOCKET  s, UINT16  increase  )

static

Definition at line 175 of file CUBIC.c.

init_cubic()

void init_cubic

(

PNETSIM_SOCKET

s

)

Definition at line 290 of file CUBIC.c.

isDupAck()

static bool isDupAck ( PNETSIM_SOCKET  s, PCONGESTIONVAR  var  )

static

Definition at line 200 of file CUBIC.c.

set_congestionvar()

static void set_congestionvar ( PNETSIM_SOCKET  s, PCONGESTIONVAR  data  )

inlinestatic

Definition at line 113 of file CUBIC.c.

set_cwnd()

static void set_cwnd ( PNETSIM_SOCKET  s, UINT32  newcwnd  )

static

Definition at line 118 of file CUBIC.c.

set_ssthres()

static void set_ssthres ( PNETSIM_SOCKET  s, UINT32  newssthres  )

static

Definition at line 147 of file CUBIC.c.

slowStart()

static void slowStart ( PNETSIM_SOCKET  s, PCONGESTIONVAR  var  )

static

Definition at line 233 of file CUBIC.c.

tcp_in_slow_start()

static bool tcp_in_slow_start ( PNETSIM_SOCKET  s )

inlinestatic

Definition at line 195 of file CUBIC.c.

Here is the caller graph for this function:

Variable Documentation

beta_scale

UINT32 beta_scale

static

Definition at line 50 of file CUBIC.c.

cube_factor

UINT32 cube_factor

static

Definition at line 51 of file CUBIC.c.

cube_rtt_scale

UINT32 cube_rtt_scale

static

Definition at line 49 of file CUBIC.c.

fast_convergence

int fast_convergence = 1

static

Definition at line 42 of file CUBIC.c.

hystart

int hystart = 1

static

Definition at line 45 of file CUBIC.c.

hystart_detect

int hystart_detect = HYSTART_ACK_TRAIN | HYSTART_DELAY

static

Definition at line 46 of file CUBIC.c.

tcp_friendliness

int tcp_friendliness = 1

static

Definition at line 43 of file CUBIC.c.
