PropagationModel.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	stru_pathloss_var
struct	stru_oscillator
struct	stru_complex
struct	stru_complexOscillator
struct	stru_state_looParam
struct	stru_elevation
struct	stru_marko_loo_fading_var
struct	stru_fading_var
struct	stru_shadowloss_var
struct	stru_temperature_zone
struct	stru_acoutics_propagation_var
struct	stru_propagation_model
struct	stru_recvpower
struct	stru_tx_info
struct	stru_propagation_info

Macros
#define	_NETSIM_PROPAGATION_MODEL_H_
#define	NEGATIVE_DBM   -1000.0
#define	ZERO_MW   1.0e-100
#define	MW_TO_DBM(mw)   (mw <= ZERO_MW?NEGATIVE_DBM:10.0*log10(mw))
#define	DBM_TO_MW(dbm)   (dbm == NEGATIVE_DBM? 0.0: pow(10.0,dbm/10.0))
#define	HZ   (1.0)
#define	KHZ   (1000.0*HZ)
#define	MHZ   (1000.0*KHZ)
#define	GHZ   (1000.0*MHZ)
#define	MAC_LAYER_PROTOCOL   int
#define	__CALLBACK__
#define	PROPAGATION_PROPAGATION_MEDIUM_DEFAULT   _strdup("AIR")
#define	PROPAGATION_CHANNEL_CHARACTERISTICS_DEFAULT   _strdup("FADING_AND_SHADOWING")
#define	PROPAGATION_PATHLOSS_MODEL_DEFAULT   _strdup("Friis_Free_Space_propagation")
#define	PROPAGATION_FADING_MODEL_DEFAULT   _strdup("NONE")
#define	PROPAGATION_SHADOWING_MODEL_DEFAULT   _strdup("NONE")
#define	PROPAGATION_STANDARD_DEVIATION_DEFAULT   5.0
#define	PROPAGATION_PATHLOSS_EXPONENT_DEFAULT   2.0
#define	PROPAGATION_FADING_FIGURE_DEFAULT   1.0
#define	PROPAGATION_SHAPE_PARAMETER_DEFAULT   2.0
#define	PROPAGATION_OMEGA_DEFAULT   2.0
#define	PROPAGATION_THORP_SPREAD_COEFF_DEFAULT   2.0
#define	PROPAGATION_TEMPERATUREZONE_COUNT_DEFAULT   0
#define	PROPAGATION_Z_DEFAULT   0.0
#define	PROPAGATION_TEMPERATURE_DEFAULT   25.0
#define	PROPAGATION_SALINITY_DEFAULT   35
#define	PROPAGATION_WINDSPEED_DEFAULT   0
#define	PROPAGATION_SHIPPING_DEFAULT   0.5
#define	propagation_calculate_received_power(h, t, ti, r, ri, time)   __pragma(message(__LOC__"propagation_calculate_received_power function is deprcated. Use _propagation_calculate_received_power")) _propagation_calculate_received_power(get_propagation_info(h,t,ti,r,ri),time)
#define	get_tx_info(h, t, ti, r, ri)   __pragma(message(__LOC__"get_tx_info function is deprcated. Use _get_tx_info")) _get_tx_info(get_propagation_info(h,t,ti,r,ri))
#define	propagation_get_received_power_dbm(h, t, ti, r, ri, time)   __pragma(message(__LOC__"propagation_get_received_power_dbm function is deprcated. Use _propagation_get_received_power_dbm")) _propagation_get_received_power_dbm(get_propagation_info(h,t,ti,r,ri),time)
#define	propagation_calculate_fadingloss(h, t, ti, r, ri)   __pragma(message(__LOC__"propagation_calculate_fadingloss function is deprcated. Use _propagation_calculate_fadingloss")) _propagation_calculate_fadingloss(get_propagation_info(h,t,ti,r,ri))

Typedefs
typedef struct stru_propagation_info	PROPAGATION_INFO
typedef struct stru_propagation_info *	PPROPAGATION_INFO
typedef struct stru_recvpower	RECV_POWER
typedef struct stru_recvpower *	PRECV_POWER
typedef bool(*	fnCheckInterface) (NETSIM_ID nTxId, NETSIM_ID nTxInterface, NETSIM_ID nRxId, NETSIM_ID nRxInterface)
typedef void(*	fnUserPathlossModel) (PPROPAGATION_INFO pinfo, PRECV_POWER p)
typedef struct stru_pathloss_var	PATHLOSS_VAR
typedef struct stru_pathloss_var *	PPATHLOSS_VAR
typedef struct stru_oscillator	OSCILLATOR
typedef struct stru_oscillator *	ptrOSCILLATOR
typedef struct stru_complex	_COMPLEX
typedef struct stru_complex *	_ptrCOMPLEX
typedef struct stru_complexOscillator	COMPLEXOSCILLATOR
typedef struct stru_complexOscillator *	ptrCOMPLEXOSCILLATOR
typedef struct stru_state_looParam	LOOPARAMS
typedef struct stru_state_looParam *	ptrLOOPARAMS
typedef struct stru_elevation	ELEVATION
typedef struct stru_elevation *	ptrELEVATION
typedef struct stru_marko_loo_fading_var	MARKOVLOO_VAR
typedef struct stru_marko_loo_fading_var *	ptrMARLOVLOO_VAR
typedef struct stru_fading_var	FADING_VAR
typedef struct stru_fading_var *	PFADING_VAR
typedef struct stru_shadowloss_var	SHADOW_VAR
typedef struct stru_shadowloss_var *	PSHADOW_VAR
typedef struct stru_temperature_zone	TEMPERATUREZONE
typedef struct stru_temperature_zone *	ptrTEMPERATUREZONE
typedef struct stru_acoutics_propagation_var	ACOUTICSPROPVAR
typedef struct stru_acoutics_propagation_var *	ptrACOUTICSPROPVAR
typedef struct stru_propagation_model	PROPAGATION
typedef struct stru_propagation_model *	PPROPAGATION
typedef struct stru_tx_info	TX_INFO
typedef struct stru_tx_info *	PTX_INFO
typedef void *	PROPAGATION_HANDLE
typedef void(*	fnGetTxInfo) (NETSIM_ID nTxId, NETSIM_ID nTxInterface, NETSIM_ID nRxId, NETSIM_ID nRxInterface, PTX_INFO Txinfo)
typedef bool(*	check_protocol_configure) (NETSIM_ID d, NETSIM_ID i)

Enumerations
enum	PROPAGATION_MODEL { PROPAGATIONMODEL_NO_PATHLOSS , PROPAGATIONMODEL_PATHLOSS_ONLY , PROPAGATIONMODEL_PATHLOSS_AND_SHADOWING , PROPAGATIONMODEL_PATHLOSS_AND_FADING_AND_SHADOWING }
enum	PATHLOSS_MODEL {   PATHLOSSMODEL_None , PATHLOSSMODEL_Log_Distance , PATHLOSSMODEL_Friis_Free_Space , PATHLOSSMODEL_Cost_231_Hata_Urban ,   PATHLOSSMODEL_Cost_231_Hata_SubUrban , PATHLOSSMODEL_Hata_Urban , PATHLOSSMODEL_Hata_SubUrban , PATHLOSSMODEL_Indoor_Office ,   PATHLOSSMODEL_Indoor_Home , PATHLOSSMODEL_Indoor_Factory , PATHLOSSMODEL_THORP , PATHLOSSMODEL_TWO_RAY ,   PATHLOSSMODEL_RANGE_BASED , PATHLOSSMODEL_MATRIX_MODEL }
enum	FADING_MODEL {   FADINGMODEL_NONE , FADINGMODEL_RICIAN , FADINGMODEL_RAYLEIGH , FADINGMODEL_NAKAGAMI ,   FADINGMODEL_MARKOV_LOO }
enum	SHADOW_MODEL { SHADOWMODEL_NONE , SHADOWMODEL_CONSTANT , SHADOWMODEL_LOGNORMAL }
enum	PROP_MEDIUM { PROPMEDIUM_AIR , PROPMEDIUM_ACOUSTICS }

Functions
PROPAGATION_HANDLE	propagation_init (MAC_LAYER_PROTOCOL protocol, __CALLBACK__ check_protocol_configure check, __CALLBACK__ fnGetTxInfo fnpGetTxInfo, __CALLBACK__ fnCheckInterface checkInterference)

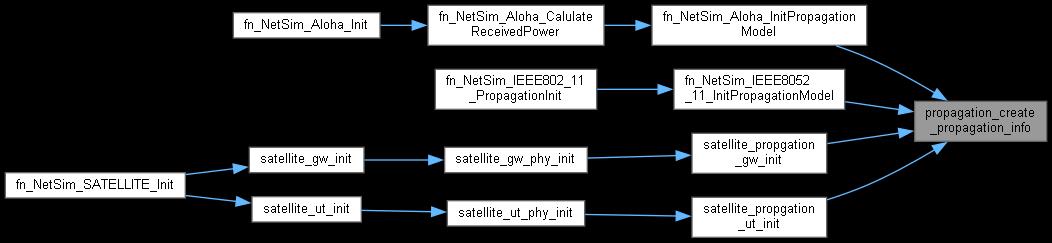

PPROPAGATION_INFO	propagation_create_propagation_info (NETSIM_ID txId, NETSIM_ID txIf, NETSIM_ID rxId, NETSIM_ID rxIf, char *uniqueId, PTX_INFO txInfo, PPROPAGATION propagation)
void	propagation_finish (PROPAGATION_HANDLE handle)

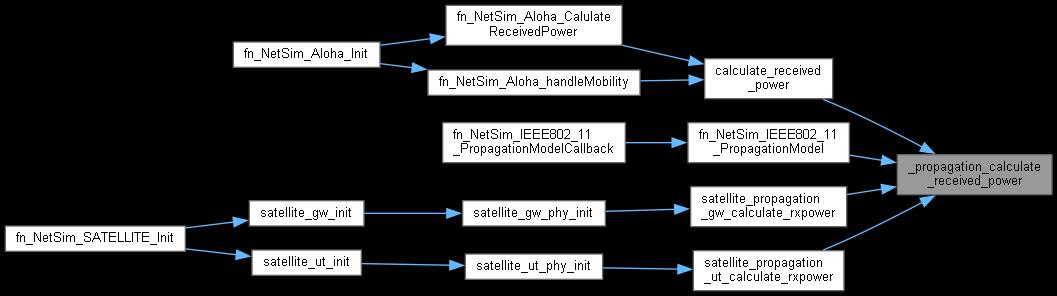

void	_propagation_calculate_received_power (PPROPAGATION_INFO info, double time)
void	propagation_calculate_lognormalshadow (PPROPAGATION_INFO pinfo, PRECV_POWER p)

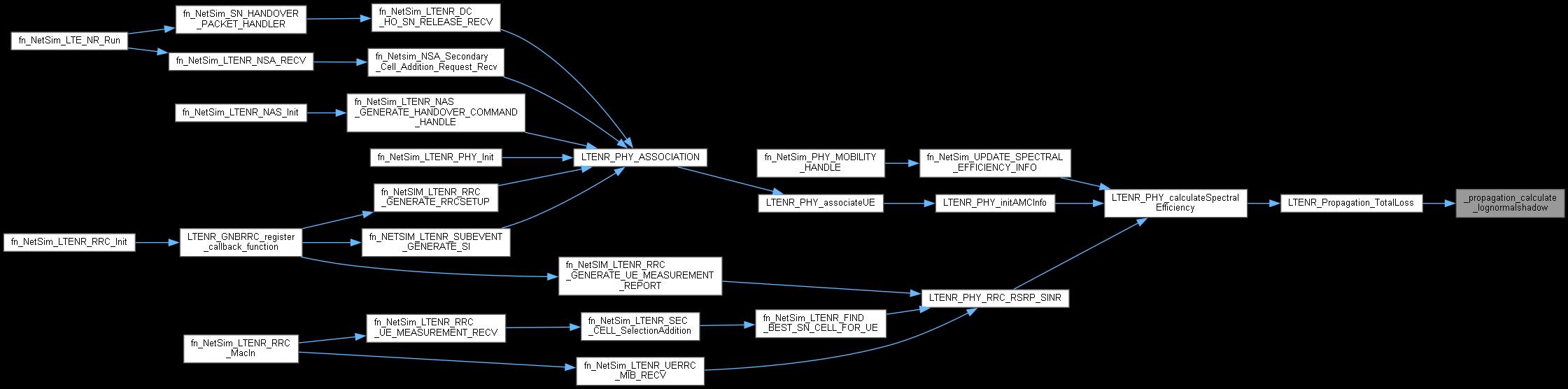

double	_propagation_calculate_lognormalshadow (double standardDeviation, double *Gset, bool *iSet)
void	propagation_calculate_logdistancepathloss (PPROPAGATION_INFO pinfo, PRECV_POWER p)

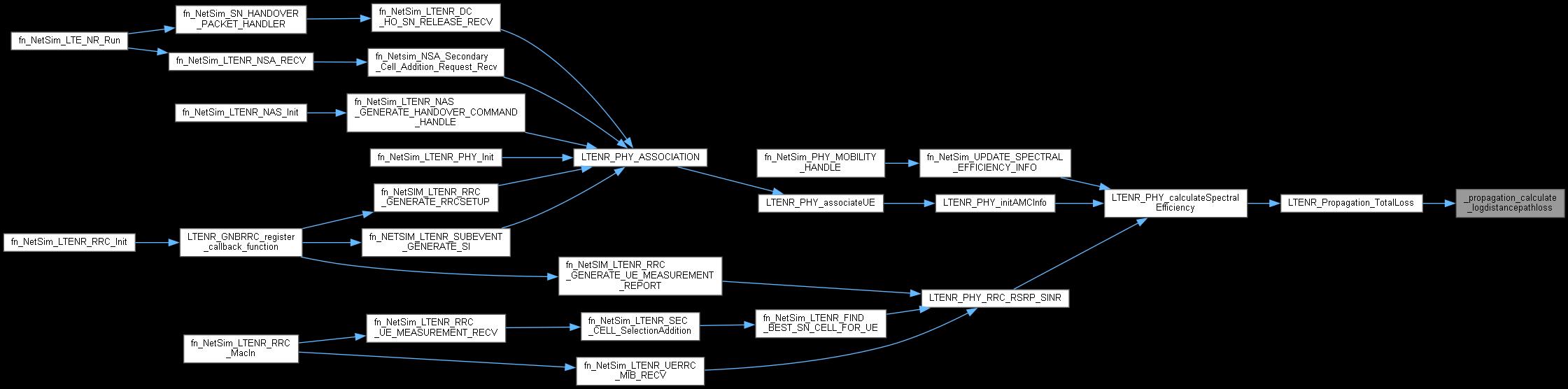

double	_propagation_calculate_logdistancepathloss (double pathLossExponent, double dTx_Rx_Distance, double dCentralFrequency, double d0)
void	propagation_calculate_cost231hata (PPROPAGATION_INFO pinfo, PRECV_POWER p, double cm)
void	propagation_calculate_hata_Suburban (PPROPAGATION_INFO pinfo, PRECV_POWER p)
void	propagation_calculate_Two_Ray (PPROPAGATION_INFO pinfo, PRECV_POWER p)
void	propagation_calculate_Range_Based (PPROPAGATION_INFO pinfo, PRECV_POWER p)
void	propagation_calculate_Matrix_Model (PPROPAGATION_INFO pinfo)
void	propagation_calculate_hata_urban (PPROPAGATION_INFO pinfo, PRECV_POWER p)
void	propagation_calculate_deterministicshadow (PPROPAGATION_INFO pinfo, PRECV_POWER p)
void	propagation_calculate_thorpPathLoss (PPROPAGATION_INFO pinfo, PRECV_POWER p)
PPROPAGATION_INFO	get_propagation_info (PROPAGATION_HANDLE handle, NETSIM_ID txid, NETSIM_ID txif, NETSIM_ID rxid, NETSIM_ID rxif)
PTX_INFO	_get_tx_info (PPROPAGATION_INFO info)
	Used to get the transmitter info. will be used by user code to change the transmitter information at run time. More...

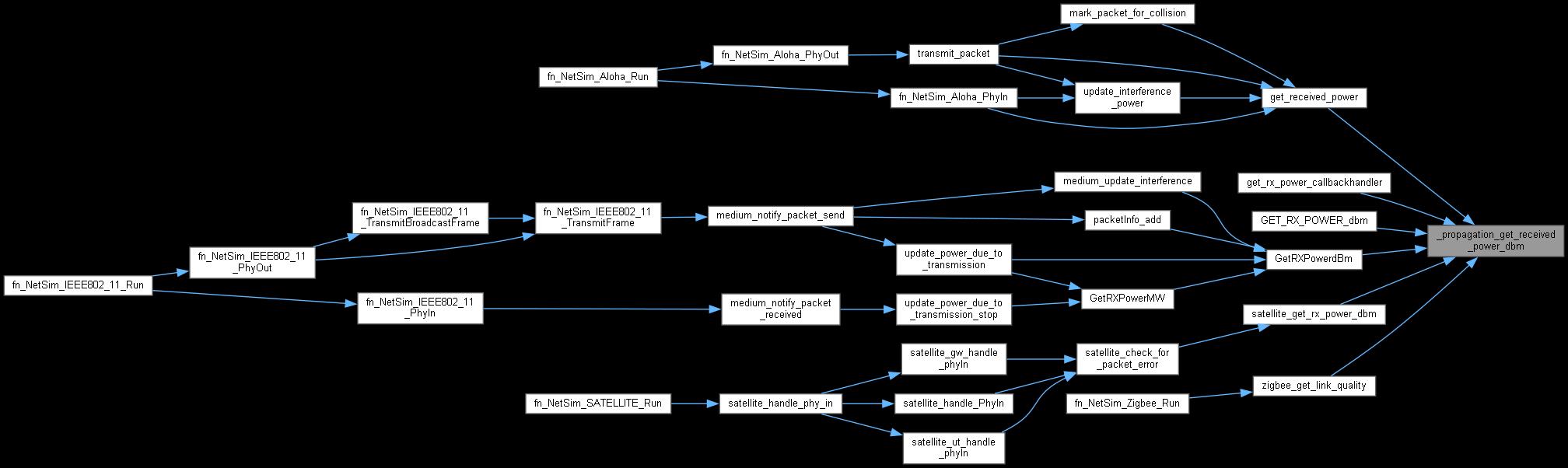

double	_propagation_get_received_power_dbm (PPROPAGATION_INFO info, double time)
	Used to the received power in dBm over time. More...

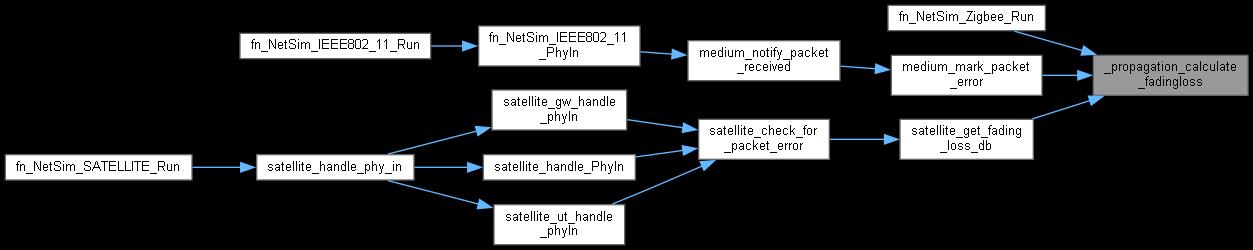

double	_propagation_calculate_fadingloss (PPROPAGATION_INFO info)
	Used to calculate the fading loss. Fading model and parameter must be set in PROPAGATION structure within info. More...
double	propagation_air_calculate_propagationDelay (NETSIM_ID tx, NETSIM_ID rx, PPROPAGATION propagation)
double	propagation_acoutics_calculate_propagationDelay (NETSIM_ID tx, NETSIM_ID rx, PPROPAGATION propagation)
double	propagation_acoutics_calculate_noise (double frequency_kHz, double shipping, double windSpeed)
void	initLoo (ptrMARLOVLOO_VAR markovLooVar)
double	calculateLooFadingDB (PPROPAGATION_INFO info)

Macro Definition Documentation

__CALLBACK__

#define __CALLBACK__

Definition at line 36 of file PropagationModel.h.

_NETSIM_PROPAGATION_MODEL_H_

#define _NETSIM_PROPAGATION_MODEL_H_

Definition at line 17 of file PropagationModel.h.

DBM_TO_MW

#define DBM_TO_MW

(

dbm

)

(dbm == NEGATIVE_DBM? 0.0: pow(10.0,dbm/10.0))

Definition at line 25 of file PropagationModel.h.

get_tx_info

#define get_tx_info	(		h,
			t,
			ti,
			r,
			ri
	)		__pragma(message(__LOC__"get_tx_info function is deprcated. Use _get_tx_info")) _get_tx_info(get_propagation_info(h,t,ti,r,ri))

Definition at line 380 of file PropagationModel.h.

GHZ

#define GHZ   (1000.0*MHZ)

Definition at line 30 of file PropagationModel.h.

HZ

#define HZ   (1.0)

Definition at line 27 of file PropagationModel.h.

KHZ

#define KHZ   (1000.0*HZ)

Definition at line 28 of file PropagationModel.h.

MAC_LAYER_PROTOCOL

#define MAC_LAYER_PROTOCOL   int

Definition at line 33 of file PropagationModel.h.

MHZ

#define MHZ   (1000.0*KHZ)

Definition at line 29 of file PropagationModel.h.

MW_TO_DBM

#define MW_TO_DBM

(

mw

)

(mw <= ZERO_MW?NEGATIVE_DBM:10.0*log10(mw))

Definition at line 24 of file PropagationModel.h.

NEGATIVE_DBM

#define NEGATIVE_DBM   -1000.0

Definition at line 22 of file PropagationModel.h.

propagation_calculate_fadingloss

#define propagation_calculate_fadingloss	(		h,
			t,
			ti,
			r,
			ri
	)		__pragma(message(__LOC__"propagation_calculate_fadingloss function is deprcated. Use _propagation_calculate_fadingloss")) _propagation_calculate_fadingloss(get_propagation_info(h,t,ti,r,ri))

Definition at line 388 of file PropagationModel.h.

propagation_calculate_received_power

#define propagation_calculate_received_power	(		h,
			t,
			ti,
			r,
			ri,
			time
	)		__pragma(message(__LOC__"propagation_calculate_received_power function is deprcated. Use _propagation_calculate_received_power")) _propagation_calculate_received_power(get_propagation_info(h,t,ti,r,ri),time)

Definition at line 328 of file PropagationModel.h.

PROPAGATION_CHANNEL_CHARACTERISTICS_DEFAULT

#define PROPAGATION_CHANNEL_CHARACTERISTICS_DEFAULT   _strdup("FADING_AND_SHADOWING")

Definition at line 40 of file PropagationModel.h.

PROPAGATION_FADING_FIGURE_DEFAULT

#define PROPAGATION_FADING_FIGURE_DEFAULT   1.0

Definition at line 46 of file PropagationModel.h.

PROPAGATION_FADING_MODEL_DEFAULT

#define PROPAGATION_FADING_MODEL_DEFAULT   _strdup("NONE")

Definition at line 42 of file PropagationModel.h.

propagation_get_received_power_dbm

#define propagation_get_received_power_dbm	(		h,
			t,
			ti,
			r,
			ri,
			time
	)		__pragma(message(__LOC__"propagation_get_received_power_dbm function is deprcated. Use _propagation_get_received_power_dbm")) _propagation_get_received_power_dbm(get_propagation_info(h,t,ti,r,ri),time)

Definition at line 384 of file PropagationModel.h.

PROPAGATION_OMEGA_DEFAULT

#define PROPAGATION_OMEGA_DEFAULT   2.0

Definition at line 48 of file PropagationModel.h.

PROPAGATION_PATHLOSS_EXPONENT_DEFAULT

#define PROPAGATION_PATHLOSS_EXPONENT_DEFAULT   2.0

Definition at line 45 of file PropagationModel.h.

PROPAGATION_PATHLOSS_MODEL_DEFAULT

#define PROPAGATION_PATHLOSS_MODEL_DEFAULT   _strdup("Friis_Free_Space_propagation")

Definition at line 41 of file PropagationModel.h.

PROPAGATION_PROPAGATION_MEDIUM_DEFAULT

#define PROPAGATION_PROPAGATION_MEDIUM_DEFAULT   _strdup("AIR")

Definition at line 39 of file PropagationModel.h.

PROPAGATION_SALINITY_DEFAULT

#define PROPAGATION_SALINITY_DEFAULT   35

Definition at line 53 of file PropagationModel.h.

PROPAGATION_SHADOWING_MODEL_DEFAULT

#define PROPAGATION_SHADOWING_MODEL_DEFAULT   _strdup("NONE")

Definition at line 43 of file PropagationModel.h.

PROPAGATION_SHAPE_PARAMETER_DEFAULT

#define PROPAGATION_SHAPE_PARAMETER_DEFAULT   2.0

Definition at line 47 of file PropagationModel.h.

PROPAGATION_SHIPPING_DEFAULT

#define PROPAGATION_SHIPPING_DEFAULT   0.5

Definition at line 55 of file PropagationModel.h.

PROPAGATION_STANDARD_DEVIATION_DEFAULT

#define PROPAGATION_STANDARD_DEVIATION_DEFAULT   5.0

Definition at line 44 of file PropagationModel.h.

PROPAGATION_TEMPERATURE_DEFAULT

#define PROPAGATION_TEMPERATURE_DEFAULT   25.0

Definition at line 52 of file PropagationModel.h.

PROPAGATION_TEMPERATUREZONE_COUNT_DEFAULT

#define PROPAGATION_TEMPERATUREZONE_COUNT_DEFAULT   0

Definition at line 50 of file PropagationModel.h.

PROPAGATION_THORP_SPREAD_COEFF_DEFAULT

#define PROPAGATION_THORP_SPREAD_COEFF_DEFAULT   2.0

Definition at line 49 of file PropagationModel.h.

PROPAGATION_WINDSPEED_DEFAULT

#define PROPAGATION_WINDSPEED_DEFAULT   0

Definition at line 54 of file PropagationModel.h.

PROPAGATION_Z_DEFAULT

#define PROPAGATION_Z_DEFAULT   0.0

Definition at line 51 of file PropagationModel.h.

ZERO_MW

#define ZERO_MW   1.0e-100

Definition at line 23 of file PropagationModel.h.

Typedef Documentation

_COMPLEX

typedef struct stru_complex _COMPLEX

_ptrCOMPLEX

typedef struct stru_complex * _ptrCOMPLEX

ACOUTICSPROPVAR

typedef struct stru_acoutics_propagation_var ACOUTICSPROPVAR

check_protocol_configure

typedef bool(* check_protocol_configure) (NETSIM_ID d, NETSIM_ID i)

Definition at line 306 of file PropagationModel.h.

COMPLEXOSCILLATOR

typedef struct stru_complexOscillator COMPLEXOSCILLATOR

ELEVATION

typedef struct stru_elevation ELEVATION

FADING_VAR

typedef struct stru_fading_var FADING_VAR

fnCheckInterface

typedef bool(* fnCheckInterface) (NETSIM_ID nTxId, NETSIM_ID nTxInterface, NETSIM_ID nRxId, NETSIM_ID nRxInterface)

Definition at line 61 of file PropagationModel.h.

fnGetTxInfo

typedef void(* fnGetTxInfo) (NETSIM_ID nTxId, NETSIM_ID nTxInterface, NETSIM_ID nRxId, NETSIM_ID nRxInterface, PTX_INFO Txinfo)

Definition at line 301 of file PropagationModel.h.

fnUserPathlossModel

typedef void(* fnUserPathlossModel) (PPROPAGATION_INFO pinfo, PRECV_POWER p)

Definition at line 65 of file PropagationModel.h.

LOOPARAMS

typedef struct stru_state_looParam LOOPARAMS

MARKOVLOO_VAR

typedef struct stru_marko_loo_fading_var MARKOVLOO_VAR

OSCILLATOR

typedef struct stru_oscillator OSCILLATOR

PATHLOSS_VAR

typedef struct stru_pathloss_var PATHLOSS_VAR

PFADING_VAR

typedef struct stru_fading_var* PFADING_VAR

PPATHLOSS_VAR

typedef struct stru_pathloss_var* PPATHLOSS_VAR

PPROPAGATION

typedef struct stru_propagation_model* PPROPAGATION

PPROPAGATION_INFO

typedef struct stru_propagation_info * PPROPAGATION_INFO

Definition at line 58 of file PropagationModel.h.

PRECV_POWER

typedef struct stru_recvpower * PRECV_POWER

Definition at line 59 of file PropagationModel.h.

PROPAGATION

typedef struct stru_propagation_model PROPAGATION

PROPAGATION_HANDLE

typedef void* PROPAGATION_HANDLE

Definition at line 299 of file PropagationModel.h.

PROPAGATION_INFO

typedef struct stru_propagation_info PROPAGATION_INFO

Definition at line 58 of file PropagationModel.h.

PSHADOW_VAR

typedef struct stru_shadowloss_var* PSHADOW_VAR

ptrACOUTICSPROPVAR

typedef struct stru_acoutics_propagation_var * ptrACOUTICSPROPVAR

ptrCOMPLEXOSCILLATOR

typedef struct stru_complexOscillator * ptrCOMPLEXOSCILLATOR

ptrELEVATION

typedef struct stru_elevation * ptrELEVATION

ptrLOOPARAMS

typedef struct stru_state_looParam * ptrLOOPARAMS

ptrMARLOVLOO_VAR

typedef struct stru_marko_loo_fading_var * ptrMARLOVLOO_VAR

ptrOSCILLATOR

typedef struct stru_oscillator * ptrOSCILLATOR

ptrTEMPERATUREZONE

typedef struct stru_temperature_zone * ptrTEMPERATUREZONE

PTX_INFO

typedef struct stru_tx_info* PTX_INFO

RECV_POWER

typedef struct stru_recvpower RECV_POWER

Definition at line 59 of file PropagationModel.h.

SHADOW_VAR

typedef struct stru_shadowloss_var SHADOW_VAR

TEMPERATUREZONE

typedef struct stru_temperature_zone TEMPERATUREZONE

TX_INFO

typedef struct stru_tx_info TX_INFO

Enumeration Type Documentation

FADING_MODEL

enum FADING_MODEL

Enumerator
FADINGMODEL_NONE
FADINGMODEL_RICIAN
FADINGMODEL_RAYLEIGH
FADINGMODEL_NAKAGAMI
FADINGMODEL_MARKOV_LOO

Definition at line 94 of file PropagationModel.h.

PATHLOSS_MODEL

enum PATHLOSS_MODEL

Enumerator
PATHLOSSMODEL_None
PATHLOSSMODEL_Log_Distance
PATHLOSSMODEL_Friis_Free_Space
PATHLOSSMODEL_Cost_231_Hata_Urban
PATHLOSSMODEL_Cost_231_Hata_SubUrban
PATHLOSSMODEL_Hata_Urban
PATHLOSSMODEL_Hata_SubUrban
PATHLOSSMODEL_Indoor_Office
PATHLOSSMODEL_Indoor_Home
PATHLOSSMODEL_Indoor_Factory
PATHLOSSMODEL_THORP
PATHLOSSMODEL_TWO_RAY
PATHLOSSMODEL_RANGE_BASED
PATHLOSSMODEL_MATRIX_MODEL

Definition at line 76 of file PropagationModel.h.

PROP_MEDIUM

enum PROP_MEDIUM

Enumerator
PROPMEDIUM_AIR
PROPMEDIUM_ACOUSTICS

Definition at line 110 of file PropagationModel.h.

PROPAGATION_MODEL

enum PROPAGATION_MODEL

Enumerator
PROPAGATIONMODEL_NO_PATHLOSS
PROPAGATIONMODEL_PATHLOSS_ONLY
PROPAGATIONMODEL_PATHLOSS_AND_SHADOWING
PROPAGATIONMODEL_PATHLOSS_AND_FADING_AND_SHADOWING

Definition at line 68 of file PropagationModel.h.

SHADOW_MODEL

enum SHADOW_MODEL

Enumerator
SHADOWMODEL_NONE
SHADOWMODEL_CONSTANT
SHADOWMODEL_LOGNORMAL

Definition at line 103 of file PropagationModel.h.

Function Documentation

_get_tx_info()

PTX_INFO _get_tx_info

(

PPROPAGATION_INFO

info

)

Used to get the transmitter info. will be used by user code to change the transmitter information at run time.

_propagation_calculate_fadingloss()

double _propagation_calculate_fadingloss

(

PPROPAGATION_INFO

info

)

Used to calculate the fading loss. Fading model and parameter must be set in PROPAGATION structure within info.

Here is the caller graph for this function:

_propagation_calculate_logdistancepathloss()

double _propagation_calculate_logdistancepathloss	(	double	pathLossExponent,
		double	dTx_Rx_Distance,
		double	dCentralFrequency,
		double	d0
	)

Here is the caller graph for this function:

_propagation_calculate_lognormalshadow()

double _propagation_calculate_lognormalshadow	(	double	standardDeviation,
		double *	Gset,
		bool *	iSet
	)

Here is the caller graph for this function:

_propagation_calculate_received_power()

void _propagation_calculate_received_power	(	PPROPAGATION_INFO	info,
		double	time
	)

Here is the caller graph for this function:

_propagation_get_received_power_dbm()

double _propagation_get_received_power_dbm	(	PPROPAGATION_INFO	info,
		double	time
	)

Used to the received power in dBm over time.

Here is the caller graph for this function:

calculateLooFadingDB()

double calculateLooFadingDB

(

PPROPAGATION_INFO

info

)

get_propagation_info()

PPROPAGATION_INFO get_propagation_info	(	PROPAGATION_HANDLE	handle,
		NETSIM_ID	txid,
		NETSIM_ID	txif,
		NETSIM_ID	rxid,
		NETSIM_ID	rxif
	)

initLoo()

void initLoo

(

ptrMARLOVLOO_VAR

markovLooVar

)

propagation_acoutics_calculate_noise()

double propagation_acoutics_calculate_noise	(	double	frequency_kHz,
		double	shipping,
		double	windSpeed
	)

Here is the caller graph for this function:

propagation_acoutics_calculate_propagationDelay()

double propagation_acoutics_calculate_propagationDelay	(	NETSIM_ID	tx,
		NETSIM_ID	rx,
		PPROPAGATION	propagation
	)

Here is the caller graph for this function:

propagation_air_calculate_propagationDelay()

double propagation_air_calculate_propagationDelay	(	NETSIM_ID	tx,
		NETSIM_ID	rx,
		PPROPAGATION	propagation
	)

Here is the caller graph for this function:

propagation_calculate_cost231hata()

void propagation_calculate_cost231hata	(	PPROPAGATION_INFO	pinfo,
		PRECV_POWER	p,
		double	cm
	)

propagation_calculate_deterministicshadow()

void propagation_calculate_deterministicshadow	(	PPROPAGATION_INFO	pinfo,
		PRECV_POWER	p
	)

propagation_calculate_hata_Suburban()

void propagation_calculate_hata_Suburban	(	PPROPAGATION_INFO	pinfo,
		PRECV_POWER	p
	)

propagation_calculate_hata_urban()

void propagation_calculate_hata_urban	(	PPROPAGATION_INFO	pinfo,
		PRECV_POWER	p
	)

propagation_calculate_logdistancepathloss()

void propagation_calculate_logdistancepathloss	(	PPROPAGATION_INFO	pinfo,
		PRECV_POWER	p
	)

propagation_calculate_lognormalshadow()

void propagation_calculate_lognormalshadow	(	PPROPAGATION_INFO	pinfo,
		PRECV_POWER	p
	)

propagation_calculate_Matrix_Model()

void propagation_calculate_Matrix_Model

(

PPROPAGATION_INFO

pinfo

)

propagation_calculate_Range_Based()

void propagation_calculate_Range_Based	(	PPROPAGATION_INFO	pinfo,
		PRECV_POWER	p
	)

propagation_calculate_thorpPathLoss()

void propagation_calculate_thorpPathLoss	(	PPROPAGATION_INFO	pinfo,
		PRECV_POWER	p
	)

propagation_calculate_Two_Ray()

void propagation_calculate_Two_Ray	(	PPROPAGATION_INFO	pinfo,
		PRECV_POWER	p
	)

propagation_create_propagation_info()

PPROPAGATION_INFO propagation_create_propagation_info	(	NETSIM_ID	txId,
		NETSIM_ID	txIf,
		NETSIM_ID	rxId,
		NETSIM_ID	rxIf,
		char *	uniqueId,
		PTX_INFO	txInfo,
		PPROPAGATION	propagation
	)

Here is the caller graph for this function:

propagation_finish()

void propagation_finish

(

PROPAGATION_HANDLE

handle

)

propagation_init()

PROPAGATION_HANDLE propagation_init	(	MAC_LAYER_PROTOCOL	protocol,
		__CALLBACK__ check_protocol_configure	check,
		__CALLBACK__ fnGetTxInfo	fnpGetTxInfo,
		__CALLBACK__ fnCheckInterface	checkInterference
	)

Here is the caller graph for this function:
