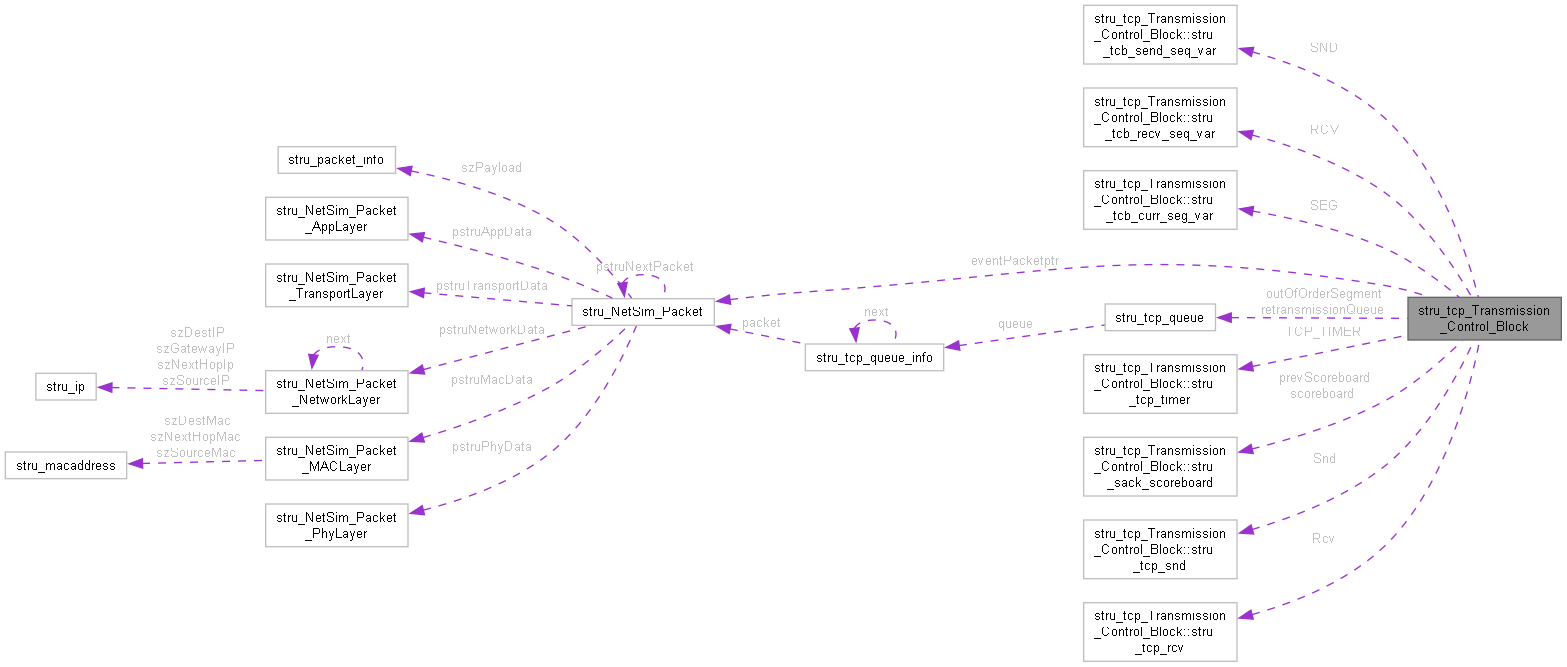

Collaboration diagram for stru_tcp_Transmission_Control_Block:

[legend]

Data Structures
struct	stru_sack_scoreboard

struct	stru_tcb_curr_seg_var

struct	stru_tcb_recv_seq_var

struct	stru_tcb_send_seq_var

struct	stru_tcp_rcv

struct	stru_tcp_snd

struct	stru_tcp_timer

Data Fields
TCP_CONNECTION_STATE	tcp_state
	Present State of the TCP Connection.

TCP_CONNECTION_STATE	tcp_prev_state
	Present State of the Connection.

TCPVARIANT	variant

struct stru_tcp_Transmission_Control_Block::stru_tcb_send_seq_var	SND

UINT32	ISS

struct stru_tcp_Transmission_Control_Block::stru_tcb_recv_seq_var	RCV

UINT32	IRS

struct stru_tcp_Transmission_Control_Block::stru_tcb_curr_seg_var	SEG

TCP_QUEUE	retransmissionQueue

TCP_QUEUE	outOfOrderSegment

struct stru_tcp_Transmission_Control_Block::stru_tcp_timer	TCP_TIMER

bool	isRTOTimerRunning

UINT64	RTOEventId

NetSim_PACKET *	eventPacketptr

UINT	synRetries

void *	congestionData

void(*	init_congestionalgo )(PNETSIM_SOCKET)

void(*	ack_received )(PNETSIM_SOCKET)

void(*	rto_expired )(PNETSIM_SOCKET)

UINT16(*	get_MSS )(PNETSIM_SOCKET)

UINT16(*	get_WND )(PNETSIM_SOCKET)

void(*	set_MSS )(PNETSIM_SOCKET s, UINT16)

UINT32(*	get_RCVWND )(PNETSIM_SOCKET)

UINT(*	get_dup_ack_count )(PNETSIM_SOCKET)

TCPACKTYPE	ackType

double	delayedAckTime

double	lastAckSendTime

bool	isAckSentLastTime

double	timeWaitTimer

bool	istimewaittimerrestarted

bool	isOtherTimerCancel

bool	isSackPermitted

struct stru_tcp_Transmission_Control_Block::stru_sack_scoreboard	scoreboard

struct stru_tcp_Transmission_Control_Block::stru_sack_scoreboard	prevScoreboard

UINT	pipe

UINT32	HighRxt

UINT32	RescueRxt

bool	isSackOption

UINT32	recoveryPoint

struct stru_tcp_Transmission_Control_Block::stru_tcp_snd	Snd

struct stru_tcp_Transmission_Control_Block::stru_tcp_rcv	Rcv

bool	isWindowScaling

bool	isTSopt

UINT32	TSVal

Detailed Description

Definition at line 45 of file TCB.h.

Field Documentation

◆ ack_received

void(* stru_tcp_Transmission_Control_Block::ack_received) (PNETSIM_SOCKET)

Definition at line 132 of file TCB.h.

◆ ackType

TCPACKTYPE stru_tcp_Transmission_Control_Block::ackType

Definition at line 141 of file TCB.h.

◆ congestionData

void* stru_tcp_Transmission_Control_Block::congestionData

Definition at line 128 of file TCB.h.

◆ delayedAckTime

double stru_tcp_Transmission_Control_Block::delayedAckTime

Definition at line 142 of file TCB.h.

◆ eventPacketptr

NetSim_PACKET* stru_tcp_Transmission_Control_Block::eventPacketptr

Definition at line 123 of file TCB.h.

◆ get_dup_ack_count

UINT(* stru_tcp_Transmission_Control_Block::get_dup_ack_count) (PNETSIM_SOCKET)

Definition at line 138 of file TCB.h.

◆ get_MSS

UINT16(* stru_tcp_Transmission_Control_Block::get_MSS) (PNETSIM_SOCKET)

Definition at line 134 of file TCB.h.

◆ get_RCVWND

UINT32(* stru_tcp_Transmission_Control_Block::get_RCVWND) (PNETSIM_SOCKET)

Definition at line 137 of file TCB.h.

◆ get_WND

UINT16(* stru_tcp_Transmission_Control_Block::get_WND) (PNETSIM_SOCKET)

Definition at line 135 of file TCB.h.

◆ HighRxt

UINT32 stru_tcp_Transmission_Control_Block::HighRxt

Definition at line 159 of file TCB.h.

◆ init_congestionalgo

void(* stru_tcp_Transmission_Control_Block::init_congestionalgo) (PNETSIM_SOCKET)

Definition at line 131 of file TCB.h.

◆ IRS

UINT32 stru_tcp_Transmission_Control_Block::IRS

Definition at line 88 of file TCB.h.

◆ isAckSentLastTime

bool stru_tcp_Transmission_Control_Block::isAckSentLastTime

Definition at line 144 of file TCB.h.

◆ isOtherTimerCancel

bool stru_tcp_Transmission_Control_Block::isOtherTimerCancel

Definition at line 149 of file TCB.h.

◆ isRTOTimerRunning

bool stru_tcp_Transmission_Control_Block::isRTOTimerRunning

Definition at line 121 of file TCB.h.

◆ ISS

UINT32 stru_tcp_Transmission_Control_Block::ISS

Definition at line 73 of file TCB.h.

◆ isSackOption

bool stru_tcp_Transmission_Control_Block::isSackOption

Definition at line 161 of file TCB.h.

◆ isSackPermitted

bool stru_tcp_Transmission_Control_Block::isSackPermitted

Definition at line 152 of file TCB.h.

◆ istimewaittimerrestarted

bool stru_tcp_Transmission_Control_Block::istimewaittimerrestarted

Definition at line 148 of file TCB.h.

◆ isTSopt

bool stru_tcp_Transmission_Control_Block::isTSopt

Definition at line 181 of file TCB.h.

◆ isWindowScaling

bool stru_tcp_Transmission_Control_Block::isWindowScaling

Definition at line 178 of file TCB.h.

◆ lastAckSendTime

double stru_tcp_Transmission_Control_Block::lastAckSendTime

Definition at line 143 of file TCB.h.

◆ outOfOrderSegment

TCP_QUEUE stru_tcp_Transmission_Control_Block::outOfOrderSegment

Definition at line 110 of file TCB.h.

◆ pipe

UINT stru_tcp_Transmission_Control_Block::pipe

Definition at line 158 of file TCB.h.

◆ recoveryPoint

UINT32 stru_tcp_Transmission_Control_Block::recoveryPoint

Definition at line 162 of file TCB.h.

◆ RescueRxt

UINT32 stru_tcp_Transmission_Control_Block::RescueRxt

Definition at line 160 of file TCB.h.

◆ retransmissionQueue

TCP_QUEUE stru_tcp_Transmission_Control_Block::retransmissionQueue

Definition at line 109 of file TCB.h.

◆ rto_expired

void(* stru_tcp_Transmission_Control_Block::rto_expired) (PNETSIM_SOCKET)

Definition at line 133 of file TCB.h.

◆ RTOEventId

UINT64 stru_tcp_Transmission_Control_Block::RTOEventId

Definition at line 122 of file TCB.h.

◆ set_MSS

void(* stru_tcp_Transmission_Control_Block::set_MSS) (PNETSIM_SOCKET s, UINT16)

Definition at line 136 of file TCB.h.

◆ synRetries

UINT stru_tcp_Transmission_Control_Block::synRetries

Definition at line 125 of file TCB.h.

◆ tcp_prev_state

TCP_CONNECTION_STATE stru_tcp_Transmission_Control_Block::tcp_prev_state

Present State of the Connection.

Definition at line 48 of file TCB.h.

◆ tcp_state

TCP_CONNECTION_STATE stru_tcp_Transmission_Control_Block::tcp_state

Present State of the TCP Connection.

Definition at line 47 of file TCB.h.

◆ timeWaitTimer

double stru_tcp_Transmission_Control_Block::timeWaitTimer

Definition at line 147 of file TCB.h.

◆ TSVal

UINT32 stru_tcp_Transmission_Control_Block::TSVal

Definition at line 182 of file TCB.h.

◆ variant

TCPVARIANT stru_tcp_Transmission_Control_Block::variant

Definition at line 50 of file TCB.h.

The documentation for this struct was generated from the following file:

TCB.h
