Routing database structure Reference : RFC 2453, November 1998, Page 8. More...

#include <RIP.h>

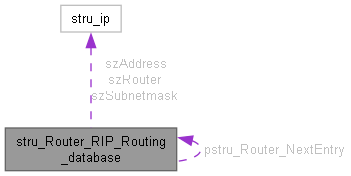

Collaboration diagram for stru_Router_RIP_Routing_database:

[legend]

Data Fields
NETSIM_IPAddress	szAddress
	IP address of the destination host or destination network.

NETSIM_IPAddress	szSubnetmask
	Subnet mask for the destination network.

NETSIM_IPAddress	szRouter
	The first router along the route to the destination.

NETSIM_ID	nInterface
	The physical network which must be used to reach the first router.

unsigned int	nMetric
	Distance to the destination.

double	dTimer
	The amount of time since the entry was last updated.

struct stru_Router_RIP_Routing_database *	pstru_Router_NextEntry

Detailed Description

Routing database structure Reference : RFC 2453, November 1998, Page 8.

Definition at line 71 of file RIP.h.

Field Documentation

double stru_Router_RIP_Routing_database::dTimer

The amount of time since the entry was last updated.

Definition at line 79 of file RIP.h.

NETSIM_ID stru_Router_RIP_Routing_database::nInterface

The physical network which must be used to reach the first router.

Definition at line 77 of file RIP.h.

unsigned int stru_Router_RIP_Routing_database::nMetric

Distance to the destination.

Definition at line 78 of file RIP.h.

struct stru_Router_RIP_Routing_database* stru_Router_RIP_Routing_database::pstru_Router_NextEntry

Definition at line 80 of file RIP.h.

NETSIM_IPAddress stru_Router_RIP_Routing_database::szAddress

IP address of the destination host or destination network.

Definition at line 74 of file RIP.h.

NETSIM_IPAddress stru_Router_RIP_Routing_database::szRouter

The first router along the route to the destination.

Definition at line 76 of file RIP.h.

NETSIM_IPAddress stru_Router_RIP_Routing_database::szSubnetmask

Subnet mask for the destination network.

Definition at line 75 of file RIP.h.

The documentation for this struct was generated from the following file:
