stru_NetSim_RIP_Packet Struct Reference

#include <RIP.h>

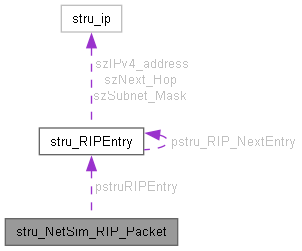

Collaboration diagram for stru_NetSim_RIP_Packet:

Data Fields
RIP_COMMAND	command
unsigned int	nVersion:8
	The version field is used to specify the RIP version (version 1 or 2)
struct stru_RIPEntry *	pstruRIPEntry

Detailed Description

RIP packet structure. RFC 2453 November 1998 Pages : 20,21

The RIP packet format is:

   0                   1                   2                   3
   0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
  +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
  |  command (1)  |  version (1)  |       must be zero (2)        |
  +---------------+---------------+-------------------------------+
  |                                                               |
  ~                         RIP Entry (20)                        ~
  |                                                               |
  +---------------+---------------+---------------+---------------+

Definition at line 100 of file RIP.h.

Field Documentation

command

RIP_COMMAND stru_NetSim_RIP_Packet::command

The command field is used to specify the purpose of this message.
If it is 1-->request message, 2-->response message

Definition at line 102 of file RIP.h.

nVersion

unsigned int stru_NetSim_RIP_Packet::nVersion

The version field is used to specify the RIP version (version 1 or 2)

Definition at line 104 of file RIP.h.

pstruRIPEntry

struct stru_RIPEntry* stru_NetSim_RIP_Packet::pstruRIPEntry

Definition at line 105 of file RIP.h.

---

The documentation for this struct was generated from the following file:

• RIP.h
