stru_DSR_DeviceVar Struct Reference

#include <DSR.h>

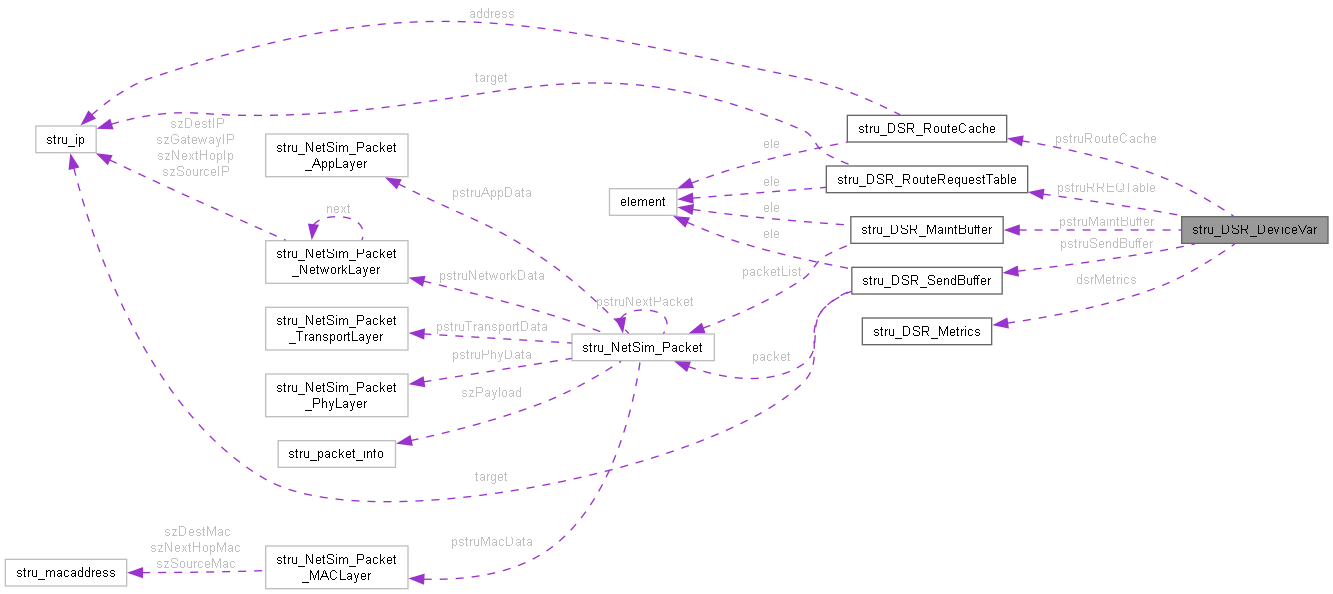

Collaboration diagram for stru_DSR_DeviceVar:

Public Types
enum	{ LINK_LAYER_ACK , NETWORK_LAYER_ACK }

Data Fields
unsigned int	nRREQIdentification
struct stru_DSR_RouteCache *	pstruRouteCache
	List of routes to particular destination.
struct stru_DSR_SendBuffer *	pstruSendBuffer
	Buffer in which packets are added if route to target is not known.
struct stru_DSR_RouteRequestTable *	pstruRREQTable
	A table in which entry of RREQ initiated is made.
enum stru_DSR_DeviceVar:: { ... }	AckType
DSR_MAINT_BUFFER *	pstruMaintBuffer
	Buffer in which packets sent to next HOP are added.
struct stru_DSR_Metrics	dsrMetrics

Detailed Description

DSR Device Variable

Definition at line 653 of file DSR.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

Definition at line 660 of file DSR.h.

        {
            LINK_LAYER_ACK,
            NETWORK_LAYER_ACK,
        }AckType;

Field Documentation

dsrMetrics

struct stru_DSR_Metrics stru_DSR_DeviceVar::dsrMetrics

Definition at line 666 of file DSR.h.

nRREQIdentification

unsigned int stru_DSR_DeviceVar::nRREQIdentification

Definition at line 656 of file DSR.h.

pstruMaintBuffer

DSR_MAINT_BUFFER* stru_DSR_DeviceVar::pstruMaintBuffer

Buffer in which packets sent to next HOP are added.

Definition at line 665 of file DSR.h.

pstruRouteCache

struct stru_DSR_RouteCache* stru_DSR_DeviceVar::pstruRouteCache

List of routes to particular destination.

Definition at line 657 of file DSR.h.

pstruRREQTable

struct stru_DSR_RouteRequestTable* stru_DSR_DeviceVar::pstruRREQTable

A table in which entry of RREQ initiated is made.

Definition at line 659 of file DSR.h.

pstruSendBuffer

struct stru_DSR_SendBuffer* stru_DSR_DeviceVar::pstruSendBuffer

Buffer in which packets are added if route to target is not known.

Definition at line 658 of file DSR.h.

---

The documentation for this struct was generated from the following file:

• DSR.h
