stru_802_11_Phy_Var Struct Reference

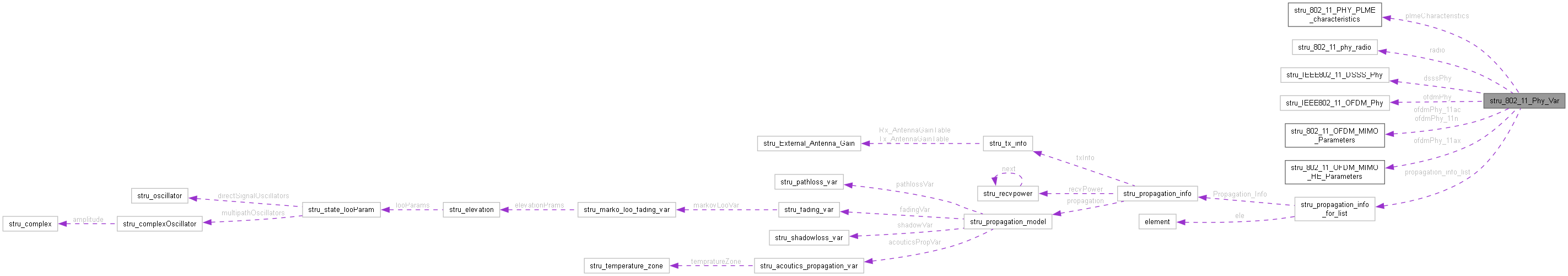

Collaboration diagram for stru_802_11_Phy_Var:
Collaboration graph
[legend]

Data Fields

UINT nTxPower_mw

IEEE802_11_PROTOCOL PhyProtocol

IEEE802_11_PHY_TYPE PhyType

UINT16 usnChannelNumber

double dFrequency

double dFrequencyBand

double dChannelBandwidth

double dAntennaHeight

double dAntennaGain

UINT nNTX

UINT nNRX

UINT nGuardInterval

ANTENNA_TYPE antennaType

double boresightAngle

double elementGain

double beamwidth

double frontToBackRatio

PLME_CHARACTERISTICS plmeCharacteristics

void * rateAdaptationData

double dControlFrameDataRate

double dBroadcastFrameDataRate

IEEE802_11_CCAMODE ccaMode

double dEDThreshold

IEEE802_11_RADIO radio

UINT RIFS

UINT SIFS

UINT PIFS

UINT DIFS

UINT AIFS

UINT EIFS

double dCurrentRxSensitivity_dbm

union {

   IEEE802_11_DSSS_PHY   dsssPhy

   IEEE802_11_OFDM_PHY   ofdmPhy

   IEEE802_11_OFDM_MIMO   ofdmPhy_11n

   IEEE802_11_OFDM_MIMO   ofdmPhy_11ac

   IEEE802_11_OFDM_MIMO_HE   ofdmPhy_11ax

} PHY_TYPE

double codingRate

unsigned int NSS

unsigned int NSTS

unsigned int N_HT_DLTF

unsigned int NESS

unsigned short int nN_HT_DLTF

unsigned int N_HT_ELTF

unsigned int N_HT_LTF

unsigned int MCS

unsigned int NES

unsigned int N_HE_LTF

PACKET_STATUS firstpacketstatus

double d0

double pld0

bool isDeviceOn

void * battery

BER_MODEL_TYPE Ber_Model

bool Fixed_MCS

int Fixed_Data_Rate_MCS

ptrpropagation_info_for_list propagation_info_list

UINT64 transmissionId


Detailed Description

Definition at line 134 of file IEEE802_11_Phy.h.

Field Documentation

◆ AIFS

UINT stru_802_11_Phy_Var::AIFS

Definition at line 180 of file IEEE802_11_Phy.h.

◆ antennaType

ANTENNA_TYPE stru_802_11_Phy_Var::antennaType

Definition at line 153 of file IEEE802_11_Phy.h.

◆ battery

void* stru_802_11_Phy_Var::battery

Definition at line 214 of file IEEE802_11_Phy.h.

◆ beamwidth

double stru_802_11_Phy_Var::beamwidth

Definition at line 156 of file IEEE802_11_Phy.h.

◆ Ber_Model

BER_MODEL_TYPE stru_802_11_Phy_Var::Ber_Model

Definition at line 217 of file IEEE802_11_Phy.h.

◆ boresightAngle

double stru_802_11_Phy_Var::boresightAngle

Definition at line 154 of file IEEE802_11_Phy.h.

◆ ccaMode

IEEE802_11_CCAMODE stru_802_11_Phy_Var::ccaMode

Definition at line 169 of file IEEE802_11_Phy.h.

◆ codingRate

double stru_802_11_Phy_Var::codingRate

Definition at line 196 of file IEEE802_11_Phy.h.

◆ d0

double stru_802_11_Phy_Var::d0

Definition at line 209 of file IEEE802_11_Phy.h.

◆ dAntennaGain

double stru_802_11_Phy_Var::dAntennaGain

Definition at line 145 of file IEEE802_11_Phy.h.

◆ dAntennaHeight

double stru_802_11_Phy_Var::dAntennaHeight

Definition at line 144 of file IEEE802_11_Phy.h.

◆ dBroadcastFrameDataRate

double stru_802_11_Phy_Var::dBroadcastFrameDataRate

Definition at line 166 of file IEEE802_11_Phy.h.

◆ dChannelBandwidth

double stru_802_11_Phy_Var::dChannelBandwidth

Definition at line 143 of file IEEE802_11_Phy.h.

◆ dControlFrameDataRate

double stru_802_11_Phy_Var::dControlFrameDataRate

Definition at line 165 of file IEEE802_11_Phy.h.

◆ dCurrentRxSensitivity_dbm

double stru_802_11_Phy_Var::dCurrentRxSensitivity_dbm

Definition at line 184 of file IEEE802_11_Phy.h.

◆ dEDThreshold

double stru_802_11_Phy_Var::dEDThreshold

Definition at line 170 of file IEEE802_11_Phy.h.

◆ dFrequency

double stru_802_11_Phy_Var::dFrequency

Definition at line 141 of file IEEE802_11_Phy.h.

◆ dFrequencyBand

double stru_802_11_Phy_Var::dFrequencyBand

Definition at line 142 of file IEEE802_11_Phy.h.

◆ DIFS

UINT stru_802_11_Phy_Var::DIFS

Definition at line 179 of file IEEE802_11_Phy.h.

◆ dsssPhy

IEEE802_11_DSSS_PHY stru_802_11_Phy_Var::dsssPhy

Definition at line 188 of file IEEE802_11_Phy.h.

◆ EIFS

UINT stru_802_11_Phy_Var::EIFS

Definition at line 181 of file IEEE802_11_Phy.h.

◆ elementGain

double stru_802_11_Phy_Var::elementGain

Definition at line 155 of file IEEE802_11_Phy.h.

◆ firstpacketstatus

PACKET_STATUS stru_802_11_Phy_Var::firstpacketstatus

Definition at line 207 of file IEEE802_11_Phy.h.

◆ Fixed_Data_Rate_MCS

int stru_802_11_Phy_Var::Fixed_Data_Rate_MCS

Definition at line 221 of file IEEE802_11_Phy.h.

◆ Fixed_MCS

bool stru_802_11_Phy_Var::Fixed_MCS

Definition at line 220 of file IEEE802_11_Phy.h.

◆ frontToBackRatio

double stru_802_11_Phy_Var::frontToBackRatio

Definition at line 157 of file IEEE802_11_Phy.h.

◆ isDeviceOn

bool stru_802_11_Phy_Var::isDeviceOn

Definition at line 213 of file IEEE802_11_Phy.h.

◆ MCS

unsigned int stru_802_11_Phy_Var::MCS

Definition at line 204 of file IEEE802_11_Phy.h.

◆ N_HE_LTF

unsigned int stru_802_11_Phy_Var::N_HE_LTF

Definition at line 206 of file IEEE802_11_Phy.h.

◆ N_HT_DLTF

unsigned int stru_802_11_Phy_Var::N_HT_DLTF

Definition at line 199 of file IEEE802_11_Phy.h.

◆ N_HT_ELTF

unsigned int stru_802_11_Phy_Var::N_HT_ELTF

Definition at line 202 of file IEEE802_11_Phy.h.

◆ N_HT_LTF

unsigned int stru_802_11_Phy_Var::N_HT_LTF

Definition at line 203 of file IEEE802_11_Phy.h.

◆ NES

unsigned int stru_802_11_Phy_Var::NES

Definition at line 205 of file IEEE802_11_Phy.h.

◆ NESS

unsigned int stru_802_11_Phy_Var::NESS

Definition at line 200 of file IEEE802_11_Phy.h.

◆ nGuardInterval

UINT stru_802_11_Phy_Var::nGuardInterval

Definition at line 150 of file IEEE802_11_Phy.h.

◆ nN_HT_DLTF

unsigned short int stru_802_11_Phy_Var::nN_HT_DLTF

Definition at line 201 of file IEEE802_11_Phy.h.

◆ nNRX

UINT stru_802_11_Phy_Var::nNRX

Definition at line 149 of file IEEE802_11_Phy.h.

◆ nNTX

UINT stru_802_11_Phy_Var::nNTX

Definition at line 148 of file IEEE802_11_Phy.h.

◆ NSS

unsigned int stru_802_11_Phy_Var::NSS

Definition at line 197 of file IEEE802_11_Phy.h.

◆ NSTS

unsigned int stru_802_11_Phy_Var::NSTS

Definition at line 198 of file IEEE802_11_Phy.h.

◆ nTxPower_mw

UINT stru_802_11_Phy_Var::nTxPower_mw

Definition at line 137 of file IEEE802_11_Phy.h.

◆ ofdmPhy

IEEE802_11_OFDM_PHY stru_802_11_Phy_Var::ofdmPhy

Definition at line 189 of file IEEE802_11_Phy.h.

◆ ofdmPhy_11ac

IEEE802_11_OFDM_MIMO stru_802_11_Phy_Var::ofdmPhy_11ac

Definition at line 191 of file IEEE802_11_Phy.h.

◆ ofdmPhy_11ax

IEEE802_11_OFDM_MIMO_HE stru_802_11_Phy_Var::ofdmPhy_11ax

Definition at line 192 of file IEEE802_11_Phy.h.

◆ ofdmPhy_11n

IEEE802_11_OFDM_MIMO stru_802_11_Phy_Var::ofdmPhy_11n

Definition at line 190 of file IEEE802_11_Phy.h.

◆ PhyProtocol

IEEE802_11_PROTOCOL stru_802_11_Phy_Var::PhyProtocol

Definition at line 138 of file IEEE802_11_Phy.h.

◆ PhyType

IEEE802_11_PHY_TYPE stru_802_11_Phy_Var::PhyType

Definition at line 139 of file IEEE802_11_Phy.h.

◆ PIFS

UINT stru_802_11_Phy_Var::PIFS

Definition at line 178 of file IEEE802_11_Phy.h.

◆ pld0

double stru_802_11_Phy_Var::pld0

Definition at line 210 of file IEEE802_11_Phy.h.

◆ plmeCharacteristics

PLME_CHARACTERISTICS stru_802_11_Phy_Var::plmeCharacteristics

Definition at line 159 of file IEEE802_11_Phy.h.

◆ propagation_info_list

ptrpropagation_info_for_list stru_802_11_Phy_Var::propagation_info_list

Definition at line 223 of file IEEE802_11_Phy.h.

◆ radio

IEEE802_11_RADIO stru_802_11_Phy_Var::radio

Definition at line 173 of file IEEE802_11_Phy.h.

◆ rateAdaptationData

void* stru_802_11_Phy_Var::rateAdaptationData

Definition at line 162 of file IEEE802_11_Phy.h.

◆ RIFS

UINT stru_802_11_Phy_Var::RIFS

Definition at line 176 of file IEEE802_11_Phy.h.

◆ SIFS

UINT stru_802_11_Phy_Var::SIFS

Definition at line 177 of file IEEE802_11_Phy.h.

◆ transmissionId

UINT64 stru_802_11_Phy_Var::transmissionId

Definition at line 225 of file IEEE802_11_Phy.h.

◆ usnChannelNumber

UINT16 stru_802_11_Phy_Var::usnChannelNumber

Definition at line 140 of file IEEE802_11_Phy.h.

The documentation for this struct was generated from the following file:
