Medium.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	_NETSIM_MEDIUM_H_

Functions
void	medium_add_device (NETSIM_ID d, NETSIM_ID ifid, double dFrequency_MHz, double dBandwidth_MHz, double dRxSensitivity_dBm, double dEdThreshold_dBm, void(*medium_change_callback)(NETSIM_ID, NETSIM_ID, bool, NetSim_PACKET *), bool(*isRadioIdle)(NETSIM_ID, NETSIM_ID), bool(*isTransmitterBusy)(NETSIM_ID, NETSIM_ID), void *(*propagationinfo_find)(NETSIM_ID, NETSIM_ID, NETSIM_ID, NETSIM_ID), void(*packetsentnotify)(NETSIM_ID, NETSIM_ID, NetSim_PACKET *))
void	medium_update_frequency (NETSIM_ID d, NETSIM_ID in, double f_MHz)
void	medium_update_bandwidth (NETSIM_ID d, NETSIM_ID in, double bw_MHz)
void	medium_update_rxsensitivity (NETSIM_ID d, NETSIM_ID in, double p_dbm)
void	medium_update_edthershold (NETSIM_ID d, NETSIM_ID in, double p_dbm)
void	medium_update_modulation (NETSIM_ID d, NETSIM_ID in, PHY_MODULATION m, double coderate)
void	medium_update_datarate (NETSIM_ID d, NETSIM_ID in, double r_mbps)
void	medium_notify_packet_send (NetSim_PACKET *packet, NETSIM_ID txId, NETSIM_ID txIf, NETSIM_ID rxId, NETSIM_ID rxIf)
void	medium_notify_packet_received (NetSim_PACKET *packet)
bool	medium_isIdle (NETSIM_ID d, NETSIM_ID in)

Macro Definition Documentation

_NETSIM_MEDIUM_H_

#define _NETSIM_MEDIUM_H_

Definition at line 17 of file Medium.h.

Function Documentation

medium_add_device()

void medium_add_device	(	NETSIM_ID	d,
		NETSIM_ID	ifid,
		double	dFrequency_MHz,
		double	dBandwidth_MHz,
		double	dRxSensitivity_dBm,
		double	dEdThreshold_dBm,
		void(*)(NETSIM_ID, NETSIM_ID, bool, NetSim_PACKET *)	medium_change_callback,
		bool(*)(NETSIM_ID, NETSIM_ID)	isRadioIdle,
		bool(*)(NETSIM_ID, NETSIM_ID)	isTransmitterBusy,
		void *(*)(NETSIM_ID, NETSIM_ID, NETSIM_ID, NETSIM_ID)	propagationinfo_find,
		void(*)(NETSIM_ID, NETSIM_ID, NetSim_PACKET *)	packetsentnotify
	)

Definition at line 135 of file Medium.c.

medium_isIdle()

bool medium_isIdle	(	NETSIM_ID	d,
		NETSIM_ID	in
	)

Definition at line 560 of file Medium.c.

Here is the call graph for this function:

Here is the caller graph for this function:

medium_notify_packet_received()

void medium_notify_packet_received

(

NetSim_PACKET *

packet

)

Definition at line 551 of file Medium.c.

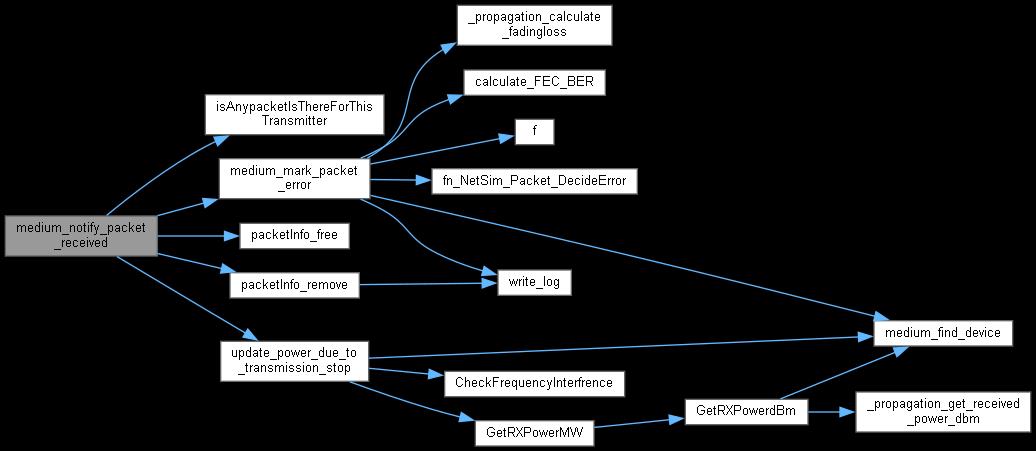

Here is the call graph for this function:

Here is the caller graph for this function:

medium_notify_packet_send()

void medium_notify_packet_send	(	NetSim_PACKET *	packet,
		NETSIM_ID	txId,
		NETSIM_ID	txIf,
		NETSIM_ID	rxId,
		NETSIM_ID	rxIf
	)

Definition at line 538 of file Medium.c.

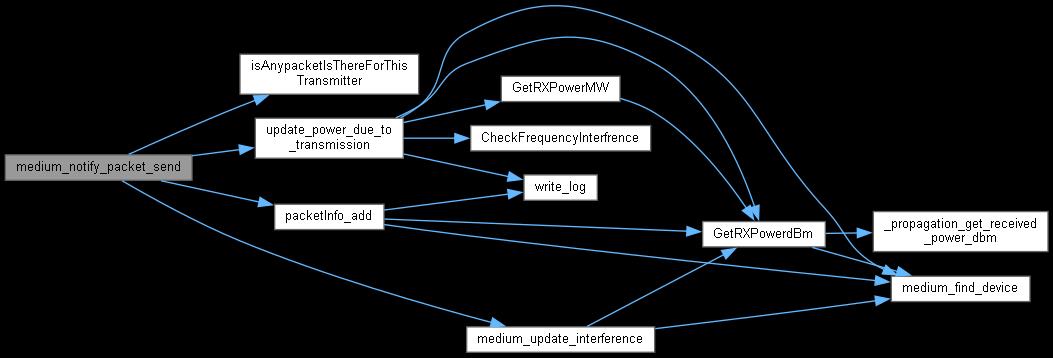

Here is the call graph for this function:

Here is the caller graph for this function:

medium_update_bandwidth()

void medium_update_bandwidth	(	NETSIM_ID	d,
		NETSIM_ID	in,
		double	bw_MHz
	)

Definition at line 180 of file Medium.c.

Here is the call graph for this function:

medium_update_datarate()

void medium_update_datarate	(	NETSIM_ID	d,
		NETSIM_ID	in,
		double	r_mbps
	)

Definition at line 229 of file Medium.c.

Here is the call graph for this function:

Here is the caller graph for this function:

medium_update_edthershold()

void medium_update_edthershold	(	NETSIM_ID	d,
		NETSIM_ID	in,
		double	p_dbm
	)

Definition at line 204 of file Medium.c.

Here is the call graph for this function:

medium_update_frequency()

void medium_update_frequency	(	NETSIM_ID	d,
		NETSIM_ID	in,
		double	f_MHz
	)

Definition at line 168 of file Medium.c.

Here is the call graph for this function:

medium_update_modulation()

void medium_update_modulation	(	NETSIM_ID	d,
		NETSIM_ID	in,
		PHY_MODULATION	m,
		double	coderate
	)

Definition at line 216 of file Medium.c.

Here is the call graph for this function:

Here is the caller graph for this function:

medium_update_rxsensitivity()

void medium_update_rxsensitivity	(	NETSIM_ID	d,
		NETSIM_ID	in,
		double	p_dbm
	)

Definition at line 192 of file Medium.c.

Here is the call graph for this function:
