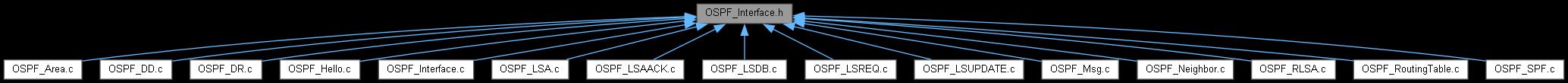

This graph shows which files directly or indirectly include this file:

Data Structures
struct	stru_ospf_if

Macros
#define	_NETSIM_OSPF_INTERFACE_H_

Typedefs
typedef enum enum_ospf_if_type	OSPFIFTYPE

Enumerations
enum	enum_ospf_if_type { OSPFIFTYPE_P2P , OSPFIFTYPE_BROADCAST , OSPFIFTYPE_NBMA , OSPFIFTYPE_P2MP , OSPFIFTYPE_VIRTUALLINK }

enum	enum_if_state { OSPFIFSTATE_DOWN , OSPFIFSTATE_LOOPBACK , OSPFIFSTATE_WAITING , OSPFIFSTATE_P2P , OSPFIFSTATE_DROther , OSPFIFSTATE_BACKUP , OSPFIFSTATE_DR }

Functions
void	ospf_interface_init (ptrOSPF_PDS ospf, ptrOSPF_IF thisInterface)

OSPFIFTYPE	OSPFIFTYPE_FROM_STR (char *val)

Variables
static char	strOSPFIFTYPE [][50]

static char	strOSPFIFSTATE [][50]

Macro Definition Documentation

◆ _NETSIM_OSPF_INTERFACE_H_

#define _NETSIM_OSPF_INTERFACE_H_

Definition at line 17 of file OSPF_Interface.h.

Typedef Documentation

◆ OSPFIFTYPE

typedef enum enum_ospf_if_type OSPFIFTYPE

Enumeration Type Documentation

◆ enum_if_state

enum enum_if_state

Enumerator
OSPFIFSTATE_DOWN
OSPFIFSTATE_LOOPBACK
OSPFIFSTATE_WAITING
OSPFIFSTATE_P2P
OSPFIFSTATE_DROther
OSPFIFSTATE_BACKUP
OSPFIFSTATE_DR

Definition at line 33 of file OSPF_Interface.h.

◆ enum_ospf_if_type

enum enum_ospf_if_type

Enumerator
OSPFIFTYPE_P2P
OSPFIFTYPE_BROADCAST
OSPFIFTYPE_NBMA
OSPFIFTYPE_P2MP
OSPFIFTYPE_VIRTUALLINK

Definition at line 22 of file OSPF_Interface.h.

Function Documentation

◆ ospf_interface_init()

void ospf_interface_init	(	ptrOSPF_PDS	ospf,
		ptrOSPF_IF	thisInterface
	)

Definition at line 100 of file OSPF_Interface.c.

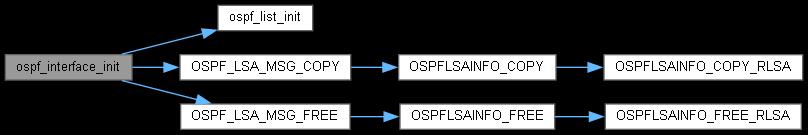

Here is the call graph for this function:

◆ OSPFIFTYPE_FROM_STR()

OSPFIFTYPE OSPFIFTYPE_FROM_STR ( char * val )

Definition at line 21 of file OSPF_Interface.c.

Variable Documentation

◆ strOSPFIFSTATE

char strOSPFIFSTATE[][50]

static

Initial value:

= { "DOWN",
        "LoopBack",
        "Waiting",
        "P2P",
        "DR-Other",
        "BackUp",
        "DR" }

Definition at line 43 of file OSPF_Interface.h.

◆ strOSPFIFTYPE

char strOSPFIFTYPE[][50]

static

Initial value:

= { "POINT_TO_POINT","BROADCAST",

"NBMA","POINT_TO_MULTIPOINT","VITUALLINK" }

Definition at line 30 of file OSPF_Interface.h.
