CSMACD.h File Reference

#include "CSMACD_enum.h"

Include dependency graph for CSMACD.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	stru_CSMACD_MacVar
struct	struc_CSMACD_PhyVar

Macros
#define	CSMACD_MAC_OVERHEAD   26
	For MSVC compiler. For GCC link via Linker command. More...
#define	CSMACD_PHY_OVERHEAD   0
#define	CSMACD_MAC(devid, ifid)   ((PCSMACD_MACVAR)DEVICE_MACVAR(devid,ifid))
#define	CSMACD_CURRMAC   (CSMACD_MAC(pstruEventDetails->nDeviceId,pstruEventDetails->nInterfaceId))
#define	CSMACD_PHY(devid, ifid)   (PCSMACD_PHYVAR)DEVICE_PHYVAR(devid,ifid)
#define	CSMACD_CURRPHY   CSMACD_PHY(pstruEventDetails->nDeviceId,pstruEventDetails->nInterfaceId)

Typedefs
typedef struct stru_CSMACD_MacVar	CSMACD_MACVAR
typedef struct stru_CSMACD_MacVar *	PCSMACD_MACVAR
typedef struct struc_CSMACD_PhyVar	CSMACD_PHYVAR
typedef struct struc_CSMACD_PhyVar *	PCSMACD_PHYVAR

Enumerations
enum	LINK_STATE { LinkState_DOWN , LinkState_UP }
enum	MAC_STATE { Idle , Busy }

Functions
bool	isMediumIdle ()
void	fn_NetSim_CSMACD_MacOut ()
void	fn_NetSim_CSMACD_MacIn ()
void	fn_NetSim_CSMACD_PhyOut ()
void	fn_NetSim_CSMACD_PhyIn ()
void	fn_NetSim_CSMACS_PersistanceWait ()

Variables
FILE *	file_collision
FILE *	file_contention

Macro Definition Documentation

CSMACD_CURRMAC

#define CSMACD_CURRMAC   (CSMACD_MAC(pstruEventDetails->nDeviceId,pstruEventDetails->nInterfaceId))

Definition at line 57 of file CSMACD.h.

CSMACD_CURRPHY

#define CSMACD_CURRPHY   CSMACD_PHY(pstruEventDetails->nDeviceId,pstruEventDetails->nInterfaceId)

Definition at line 65 of file CSMACD.h.

CSMACD_MAC

#define CSMACD_MAC	(		devid,
			ifid
	)		((PCSMACD_MACVAR)DEVICE_MACVAR(devid,ifid))

Definition at line 56 of file CSMACD.h.

CSMACD_MAC_OVERHEAD

#define CSMACD_MAC_OVERHEAD   26

For MSVC compiler. For GCC link via Linker command.

Definition at line 27 of file CSMACD.h.

CSMACD_PHY

#define CSMACD_PHY	(		devid,
			ifid
	)		(PCSMACD_PHYVAR)DEVICE_PHYVAR(devid,ifid)

Definition at line 64 of file CSMACD.h.

CSMACD_PHY_OVERHEAD

#define CSMACD_PHY_OVERHEAD   0

Definition at line 28 of file CSMACD.h.

Typedef Documentation

CSMACD_MACVAR

typedef struct stru_CSMACD_MacVar CSMACD_MACVAR

CSMACD_PHYVAR

typedef struct struc_CSMACD_PhyVar CSMACD_PHYVAR

PCSMACD_MACVAR

typedef struct stru_CSMACD_MacVar* PCSMACD_MACVAR

PCSMACD_PHYVAR

typedef struct struc_CSMACD_PhyVar* PCSMACD_PHYVAR

Enumeration Type Documentation

LINK_STATE

enum LINK_STATE

Enumerator
LinkState_DOWN
LinkState_UP

Definition at line 32 of file CSMACD.h.

MAC_STATE

enum MAC_STATE

Enumerator
Idle
Busy

Definition at line 38 of file CSMACD.h.

Function Documentation

fn_NetSim_CSMACD_MacIn()

void fn_NetSim_CSMACD_MacIn

(

)

Definition at line 123 of file CSMACDMac.c.

Here is the caller graph for this function:

fn_NetSim_CSMACD_MacOut()

void fn_NetSim_CSMACD_MacOut

(

)

Definition at line 65 of file CSMACDMac.c.

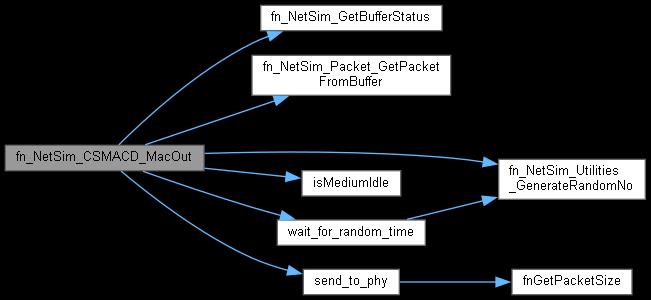

Here is the call graph for this function:

Here is the caller graph for this function:

fn_NetSim_CSMACD_PhyIn()

void fn_NetSim_CSMACD_PhyIn

(

)

Definition at line 162 of file CSMACD_Phy.c.

Here is the call graph for this function:

Here is the caller graph for this function:

fn_NetSim_CSMACD_PhyOut()

void fn_NetSim_CSMACD_PhyOut

(

)

Definition at line 113 of file CSMACD_Phy.c.

Here is the call graph for this function:

Here is the caller graph for this function:

fn_NetSim_CSMACS_PersistanceWait()

void fn_NetSim_CSMACS_PersistanceWait

(

)

Definition at line 129 of file CSMACDMac.c.

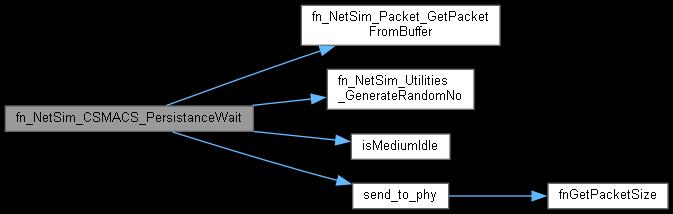

Here is the call graph for this function:

Here is the caller graph for this function:

isMediumIdle()

bool isMediumIdle

(

)

Definition at line 17 of file CSMACD_Phy.c.

Here is the caller graph for this function:

Variable Documentation

file_collision

FILE* file_collision

Definition at line 30 of file CSMACD.h.

file_contention

FILE * file_contention

Definition at line 30 of file CSMACD.h.
