ErrorModel.h File Reference

#include "Wireless.h"

Include dependency graph for ErrorModel.h:

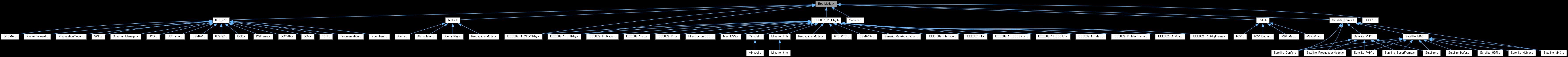

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	stru_ber

Typedefs
typedef struct stru_ber	BER
typedef struct stru_ber *	ptrBER

Functions
double	calculate_ber (double snr, BER ber_table[], size_t table_len)
double	calculate_sinr (double dReceivedPower_dbm, double interferencePower_dBm, double bandwidth_mHz)
double	calculate_BER (PHY_MODULATION modulation, double dReceivedPower_dBm, double dInterferencePower_dBm, double dBandwidth_MHz)
double	propagation_calculateRXSensitivity (double PEP, double refPacketSize, PHY_MODULATION modulation, double bandwidth)
double	add_power_in_dbm (double p1_dbm, double p2_dbm)
double	substract_power_in_dbm (double p1_dbm, double p2_dbm)
double	find_power_from_snr (double snr, double bandwidth)
double	find_snr_from_ber (double ber, PHY_MODULATION modulation)
double	Calculate_ber_by_calculation (double sinr, PHY_MODULATION modulation, double dataRate_mbps, double bandwidth_mHz)
double	calculate_rxpower_by_ber (double refBer, PHY_MODULATION modulation, double datarate_mbps, double bandwidth_mhz)
double	calculate_rxpower_by_per (double per, double refPacketSize, PHY_MODULATION modulation, double datarate_mbps, double bandwidth_mhz)
ptrBER	read_ber_file (char *file, size_t *len)
double	calculate_FEC_BER (PHY_MODULATION modulation, double codingRate, double dReceivedPower_dBm, double interferencePower_dBm, double dBandwidth_MHz, double dataRate_mbps)

Typedef Documentation

BER

typedef struct stru_ber BER

ptrBER

typedef struct stru_ber * ptrBER

Function Documentation

add_power_in_dbm()

double add_power_in_dbm	(	double	p1_dbm,
		double	p2_dbm
	)

Here is the caller graph for this function:

calculate_ber()

double calculate_ber	(	double	snr,
		BER	ber_table[],
		size_t	table_len
	)

Here is the caller graph for this function:

calculate_BER()

double calculate_BER	(	PHY_MODULATION	modulation,
		double	dReceivedPower_dBm,
		double	dInterferencePower_dBm,
		double	dBandwidth_MHz
	)

Here is the caller graph for this function:

Calculate_ber_by_calculation()

double Calculate_ber_by_calculation	(	double	sinr,
		PHY_MODULATION	modulation,
		double	dataRate_mbps,
		double	bandwidth_mHz
	)

Here is the caller graph for this function:

calculate_FEC_BER()

double calculate_FEC_BER	(	PHY_MODULATION	modulation,
		double	codingRate,
		double	dReceivedPower_dBm,
		double	interferencePower_dBm,
		double	dBandwidth_MHz,
		double	dataRate_mbps
	)

Here is the caller graph for this function:

calculate_rxpower_by_ber()

double calculate_rxpower_by_ber	(	double	refBer,
		PHY_MODULATION	modulation,
		double	datarate_mbps,
		double	bandwidth_mhz
	)

calculate_rxpower_by_per()

double calculate_rxpower_by_per	(	double	per,
		double	refPacketSize,
		PHY_MODULATION	modulation,
		double	datarate_mbps,
		double	bandwidth_mhz
	)

Here is the caller graph for this function:

calculate_sinr()

double calculate_sinr	(	double	dReceivedPower_dbm,
		double	interferencePower_dBm,
		double	bandwidth_mHz
	)

find_power_from_snr()

double find_power_from_snr	(	double	snr,
		double	bandwidth
	)

find_snr_from_ber()

double find_snr_from_ber	(	double	ber,
		PHY_MODULATION	modulation
	)

propagation_calculateRXSensitivity()

double propagation_calculateRXSensitivity	(	double	PEP,
		double	refPacketSize,
		PHY_MODULATION	modulation,
		double	bandwidth
	)

read_ber_file()

ptrBER read_ber_file	(	char *	file,
		size_t *	len
	)

Used to read BER file. File format <SNR1>,<BER1>, <SNR2>,<BER2>, .... .... .... <SNRn>,<BERn>, Input BER file name with relative path to IO path pointer to BER table length Return BER table of size len Note: SNR value in file must be in increasing order. This API doesn't check this, so if it is not will result wrong behaviour.

Here is the caller graph for this function:

substract_power_in_dbm()

double substract_power_in_dbm	(	double	p1_dbm,
		double	p2_dbm
	)

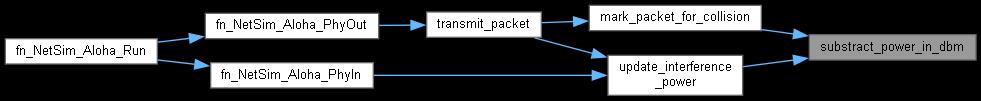

Here is the caller graph for this function:
