Database_FTP_Custom.c File Reference

#include "Application.h"

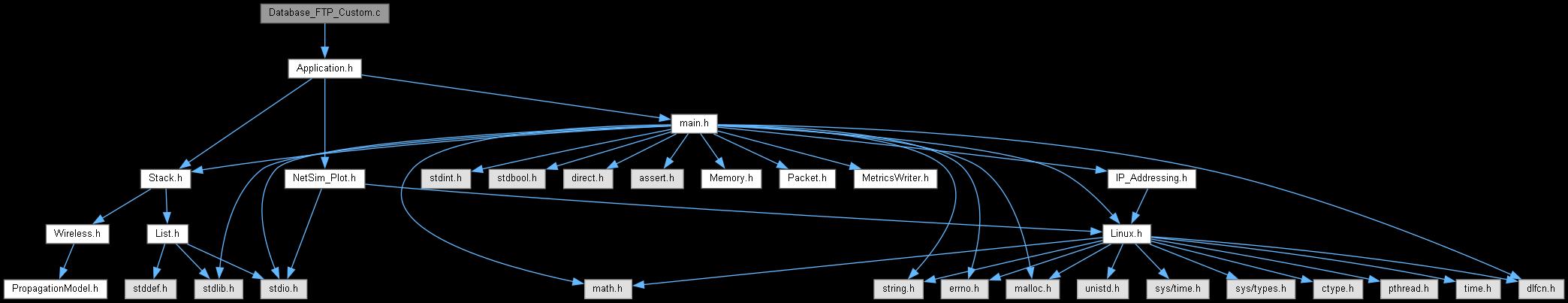

Include dependency graph for Database_FTP_Custom.c:

Go to the source code of this file.

Functions
	_declspec (dllexport)
int	fn_NetSim_Application_StartDataAPP (ptrAPPLICATION_INFO appInfo, double time)

Function Documentation

_declspec()

_declspec

(

dllexport

)

This function is used to create create applications

Users can model their own mathematical distributions for packet sizes and itnerarrival times

 For Custom
 2nd parameter: Distribution Type| Distribution input1|Distribution input2|>
 Details
 If user selects any of the distributions listed below, then pass the corresponding number for the distribution type
 Exponential -1
 Uniform -2
 Triangular -3
 Weibull -4
 Constant -5
 Distribution input1-Value of Mean if exponential distribution/Upper bound for others
 Distribution input2-Value of lower bound

 Dont pass any thing if any of the distribution has no distribution input 2.
 3rd parameter:  Distribution Type |Distribution input1|Distribution input2|>
 Details
 If user selects any of the distributions listed below, then pass the corresponding number for the distribution type: Refer field -19
 Exponential -1
 Uniform -2
 Triangular-3
 Weibull-4
 Constant-5

 Distribution input1-Value of Mean if exponential distribution/Upper bound for others
 Distribution input2-Value of lower bound
 Dont pass any thing if any of the distribution has no distribution input 2.

 2)ldArrival-Arrival time of the last frame.
 3)unsigned long uSeed,unsigned long uSeed1-Seed values for packet size
 4)unsigned long uSeed2,unsigned long uSeed3-Seed values for inter arrival time
 Return Value:pointer to an array of long double
 1st element:packet size
 2nd element:arrival time
 3rd,4th element:seed values for packet size
 5th,6th element:seed values for inter arrival time

Definition at line 59 of file Database_FTP_Custom.c.

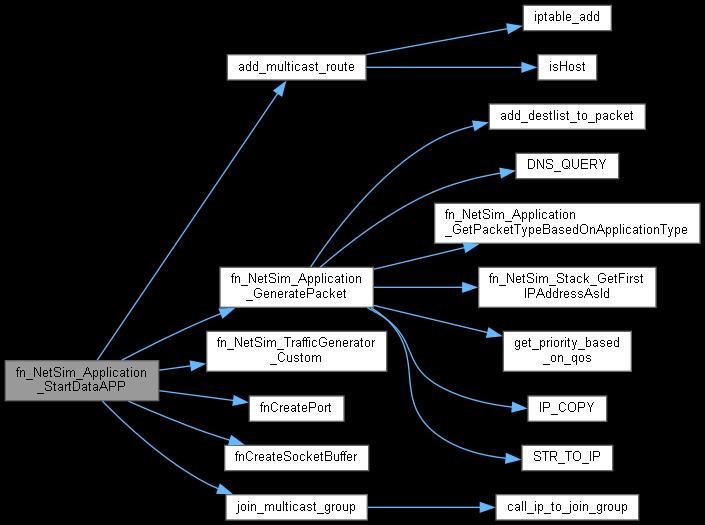

Here is the call graph for this function:

fn_NetSim_Application_StartDataAPP()

int fn_NetSim_Application_StartDataAPP	(	ptrAPPLICATION_INFO	appInfo,
		double	time
	)

This function is used to start the Database, FTP and Custom applications

Definition at line 82 of file Database_FTP_Custom.c.

Here is the call graph for this function:

Here is the caller graph for this function:
