#include <IEEE802_11.h>

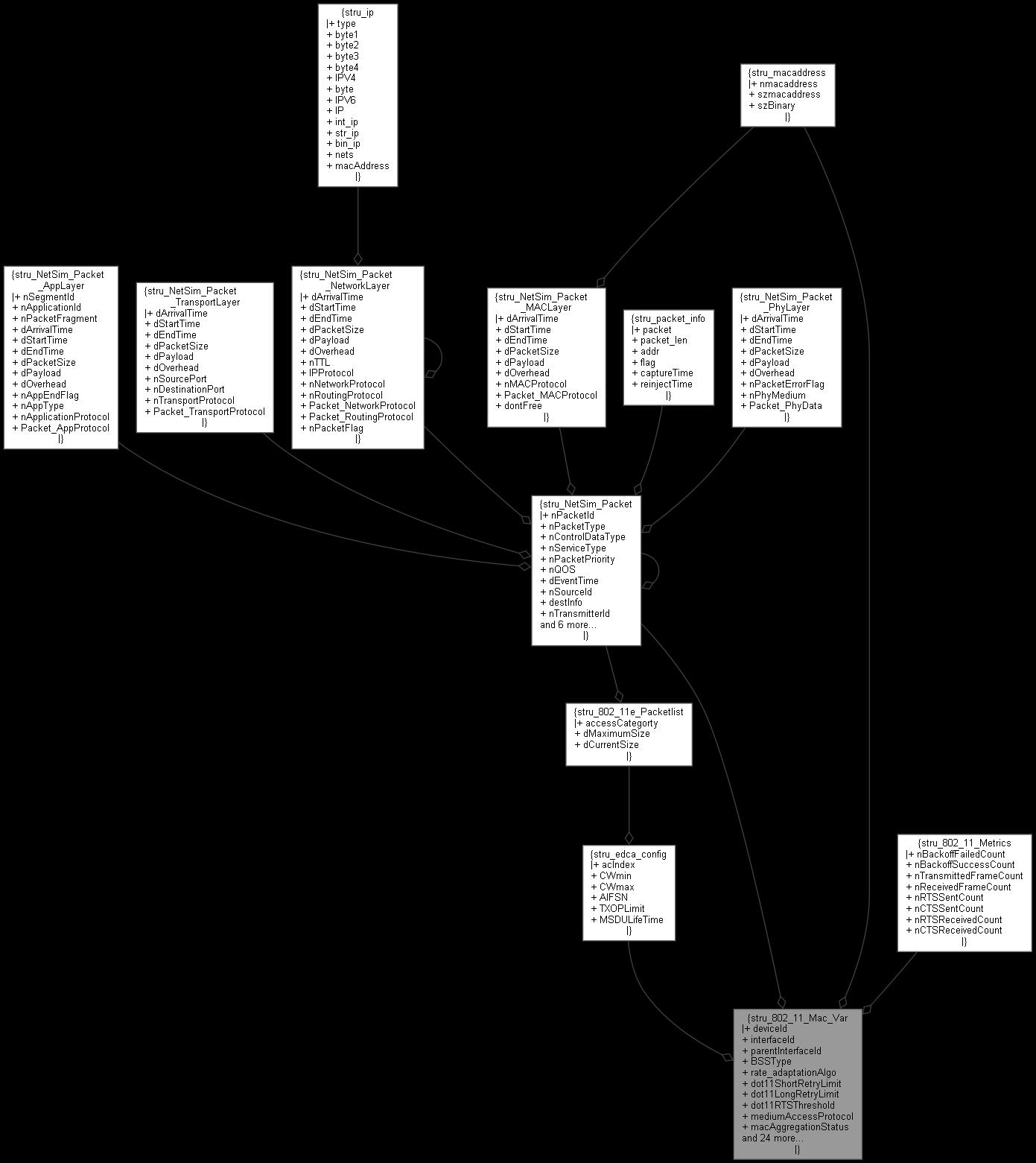

Collaboration diagram for stru_802_11_Mac_Var:

Data Fields
NETSIM_ID	deviceId

NETSIM_ID	interfaceId

NETSIM_ID	parentInterfaceId

IEEE802_11_BSS_TYPE	BSSType

IEEE802_11_RATE_ADAPTATION	rate_adaptationAlgo

UINT	dot11ShortRetryLimit

UINT	dot11LongRetryLimit

UINT	dot11RTSThreshold

IEEE802_11_MEDIUM_ACCESS_PROTOCOL	mediumAccessProtocol

bool	macAggregationStatus

UINT	nNumberOfAggregatedPackets

NetSim_PACKET *	blockAckPacket

UINT	aceessCategory

DOT11EDCATABLE	dot11EdcaTable [MAX_AC_CATEGORY]

ptrDOT11EDCATABLE	currEdcaTable

double	txopTime

IEEE802_11_MAC_STATE	currMacState

IEEE802_11_MAC_STATE	prevMacState

double	dNAV

double	dBackOffStartTime

int	nBackOffCounter

double	dBackoffLeftTime

UINT	nRetryCount

UINT	nCWcurrent

NetSim_PACKET *	currentProcessingPacket

NetSim_PACKET *	waitingforCTS

double	dDistFromAp

PNETSIM_MACADDRESS	BSSId

NETSIM_ID	nBSSId

NETSIM_ID	nAPInterfaceId

UINT	devCountinBSS

NETSIM_ID *	devIdsinBSS

NETSIM_ID *	devIfinBSS

double	dPacketProcessingEndTime

struct {
long long int backoff

long long int difsEnd

long long int aifsEnd

long long int ackTimeOut

long long int ctsTimeout

}	EVENTID

IEEE802_11_METRICS	metrics

Detailed Description

Definition at line 219 of file IEEE802_11.h.

Field Documentation

◆ aceessCategory

UINT stru_802_11_Mac_Var::aceessCategory

Definition at line 239 of file IEEE802_11.h.

◆ ackTimeOut

long long int stru_802_11_Mac_Var::ackTimeOut

Definition at line 276 of file IEEE802_11.h.

◆ aifsEnd

long long int stru_802_11_Mac_Var::aifsEnd

Definition at line 275 of file IEEE802_11.h.

◆ backoff

long long int stru_802_11_Mac_Var::backoff

Definition at line 273 of file IEEE802_11.h.

◆ blockAckPacket

NetSim_PACKET* stru_802_11_Mac_Var::blockAckPacket

Definition at line 236 of file IEEE802_11.h.

◆ BSSId

PNETSIM_MACADDRESS stru_802_11_Mac_Var::BSSId

Definition at line 261 of file IEEE802_11.h.

◆ BSSType

IEEE802_11_BSS_TYPE stru_802_11_Mac_Var::BSSType

Definition at line 226 of file IEEE802_11.h.

◆ ctsTimeout

long long int stru_802_11_Mac_Var::ctsTimeout

Definition at line 277 of file IEEE802_11.h.

◆ currEdcaTable

ptrDOT11EDCATABLE stru_802_11_Mac_Var::currEdcaTable

Definition at line 241 of file IEEE802_11.h.

◆ currentProcessingPacket

NetSim_PACKET* stru_802_11_Mac_Var::currentProcessingPacket

Definition at line 256 of file IEEE802_11.h.

◆ currMacState

IEEE802_11_MAC_STATE stru_802_11_Mac_Var::currMacState

Definition at line 245 of file IEEE802_11.h.

◆ dBackoffLeftTime

double stru_802_11_Mac_Var::dBackoffLeftTime

Definition at line 250 of file IEEE802_11.h.

◆ dBackOffStartTime

double stru_802_11_Mac_Var::dBackOffStartTime

Definition at line 248 of file IEEE802_11.h.

◆ dDistFromAp

double stru_802_11_Mac_Var::dDistFromAp

Definition at line 260 of file IEEE802_11.h.

◆ devCountinBSS

UINT stru_802_11_Mac_Var::devCountinBSS

Definition at line 264 of file IEEE802_11.h.

◆ deviceId

NETSIM_ID stru_802_11_Mac_Var::deviceId

Definition at line 221 of file IEEE802_11.h.

◆ devIdsinBSS

NETSIM_ID* stru_802_11_Mac_Var::devIdsinBSS

Definition at line 265 of file IEEE802_11.h.

◆ devIfinBSS

NETSIM_ID* stru_802_11_Mac_Var::devIfinBSS

Definition at line 266 of file IEEE802_11.h.

◆ difsEnd

long long int stru_802_11_Mac_Var::difsEnd

Definition at line 274 of file IEEE802_11.h.

◆ dNAV

double stru_802_11_Mac_Var::dNAV

Definition at line 247 of file IEEE802_11.h.

◆ dot11EdcaTable

DOT11EDCATABLE stru_802_11_Mac_Var::dot11EdcaTable[MAX_AC_CATEGORY]

Definition at line 240 of file IEEE802_11.h.

◆ dot11LongRetryLimit

UINT stru_802_11_Mac_Var::dot11LongRetryLimit

Definition at line 229 of file IEEE802_11.h.

◆ dot11RTSThreshold

UINT stru_802_11_Mac_Var::dot11RTSThreshold

Definition at line 230 of file IEEE802_11.h.

◆ dot11ShortRetryLimit

UINT stru_802_11_Mac_Var::dot11ShortRetryLimit

Definition at line 228 of file IEEE802_11.h.

◆ dPacketProcessingEndTime

double stru_802_11_Mac_Var::dPacketProcessingEndTime

Definition at line 268 of file IEEE802_11.h.

◆

struct { ... } stru_802_11_Mac_Var::EVENTID

◆ interfaceId

NETSIM_ID stru_802_11_Mac_Var::interfaceId

Definition at line 222 of file IEEE802_11.h.

◆ macAggregationStatus

bool stru_802_11_Mac_Var::macAggregationStatus

Definition at line 234 of file IEEE802_11.h.

◆ mediumAccessProtocol

IEEE802_11_MEDIUM_ACCESS_PROTOCOL stru_802_11_Mac_Var::mediumAccessProtocol

Definition at line 231 of file IEEE802_11.h.

◆ metrics

IEEE802_11_METRICS stru_802_11_Mac_Var::metrics

Definition at line 281 of file IEEE802_11.h.

◆ nAPInterfaceId

NETSIM_ID stru_802_11_Mac_Var::nAPInterfaceId

Definition at line 263 of file IEEE802_11.h.

◆ nBackOffCounter

int stru_802_11_Mac_Var::nBackOffCounter

Definition at line 249 of file IEEE802_11.h.

◆ nBSSId

NETSIM_ID stru_802_11_Mac_Var::nBSSId

Definition at line 262 of file IEEE802_11.h.

◆ nCWcurrent

UINT stru_802_11_Mac_Var::nCWcurrent

Definition at line 253 of file IEEE802_11.h.

◆ nNumberOfAggregatedPackets

UINT stru_802_11_Mac_Var::nNumberOfAggregatedPackets

Definition at line 235 of file IEEE802_11.h.

◆ nRetryCount

UINT stru_802_11_Mac_Var::nRetryCount

Definition at line 252 of file IEEE802_11.h.

◆ parentInterfaceId

NETSIM_ID stru_802_11_Mac_Var::parentInterfaceId

Definition at line 223 of file IEEE802_11.h.

◆ prevMacState

IEEE802_11_MAC_STATE stru_802_11_Mac_Var::prevMacState

Definition at line 246 of file IEEE802_11.h.

◆ rate_adaptationAlgo

IEEE802_11_RATE_ADAPTATION stru_802_11_Mac_Var::rate_adaptationAlgo

Definition at line 227 of file IEEE802_11.h.

◆ txopTime

double stru_802_11_Mac_Var::txopTime

Definition at line 242 of file IEEE802_11.h.

◆ waitingforCTS

NetSim_PACKET* stru_802_11_Mac_Var::waitingforCTS

Definition at line 257 of file IEEE802_11.h.

The documentation for this struct was generated from the following file:

IEEE802_11.h
