UpdateArpTable.c File Reference

#include "main.h"
#include "ARP.h"

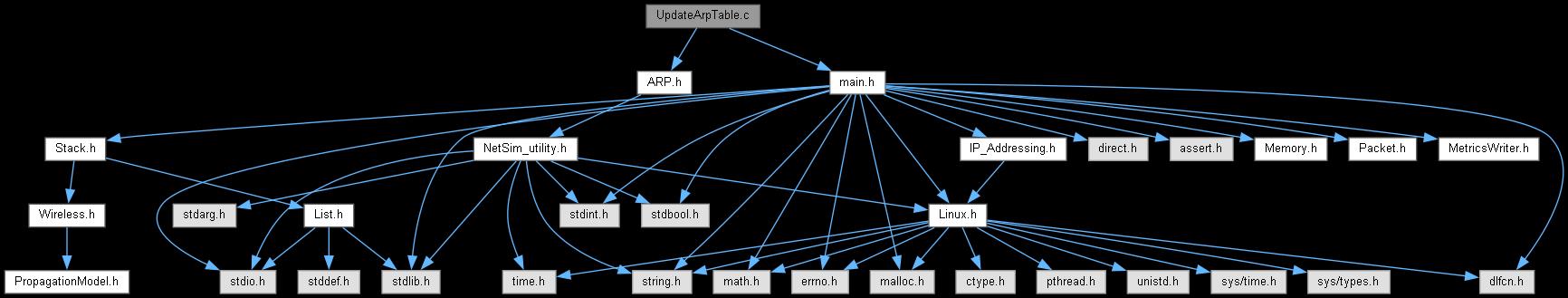

Include dependency graph for UpdateArpTable.c:

Go to the source code of this file.

Macros
#define	_CRT_SECURE_NO_DEPRECATE

Functions
int	fn_NetSim_Update_ARP_Table_ForwardPacket (NetSim_EVENTDETAILS *pstruEventDetails, struct stru_NetSim_Network *NETWORK)

Macro Definition Documentation

_CRT_SECURE_NO_DEPRECATE

#define _CRT_SECURE_NO_DEPRECATE

Definition at line 24 of file UpdateArpTable.c.

Function Documentation

fn_NetSim_Update_ARP_Table_ForwardPacket()

int fn_NetSim_Update_ARP_Table_ForwardPacket	(	NetSim_EVENTDETAILS *	pstruEventDetails,
		struct stru_NetSim_Network *	NETWORK
	)

Function: Update Arp Table and Farward Packet
This function is called whenever the NETWORK_IN_EVENT triggred with the control
packet as REPLY_PACKET. That is ARP reply is received. Then call this function to
update the MAC address and forward the buffred packet. Do the following,
1.Update the ARP table by updating the destination IP and MAC address
2.Take the buffered packet, update the destination MAC address and add the 20 byte IP header.
3.Add the packet to access buffer to forward the packet to next layer.

Definition at line 38 of file UpdateArpTable.c.

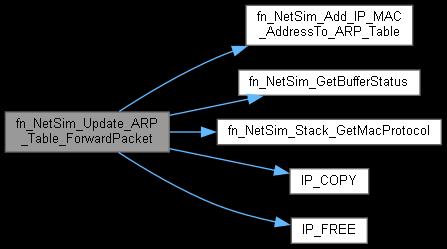

Here is the call graph for this function:

Here is the caller graph for this function:
