Featured Examples

NetSim contains some example configuration files to simulate and understand how LTE and LTE-A work.

To simulate these examples, click Examples > LTE and LTE-A in the NetSim Home Screen.

You can change the default values of the parameters in these examples and see how they impact the LTE and LTE-A network.

LTE MIMO

You simulate the example configuration for MIMO in an LTE network’s energy model to understand the impact of SISO and MIMO transmission modes on the throughput of the applications transferred in SISO and MIMO transmission modes.

The LTE network you model from the example configuration file meets the following specifications:

• A network with 1 Macro cell eNB, 1 EPC, 1 UE, 1 router, 1 wired node, and 1 unicast application running on the wired node.

• Set transport protocol to UDP in Application icon present in the top ribbon/toolbar.

NetSim uses the following defaults for this example:

• Each one the unicast applications transmit data at a constant bit-rate from wired Node 5 to the UE.

• The simulation runs for 2 seconds.

To simulate the example for SISO and MIMO in an LTE network in NetSim:

Open NetSim and Select Examples > LTE and LTE-A > LTE MIMO then click on the tile in the middle panel to load the example as shown in below screenshot Figure-1.

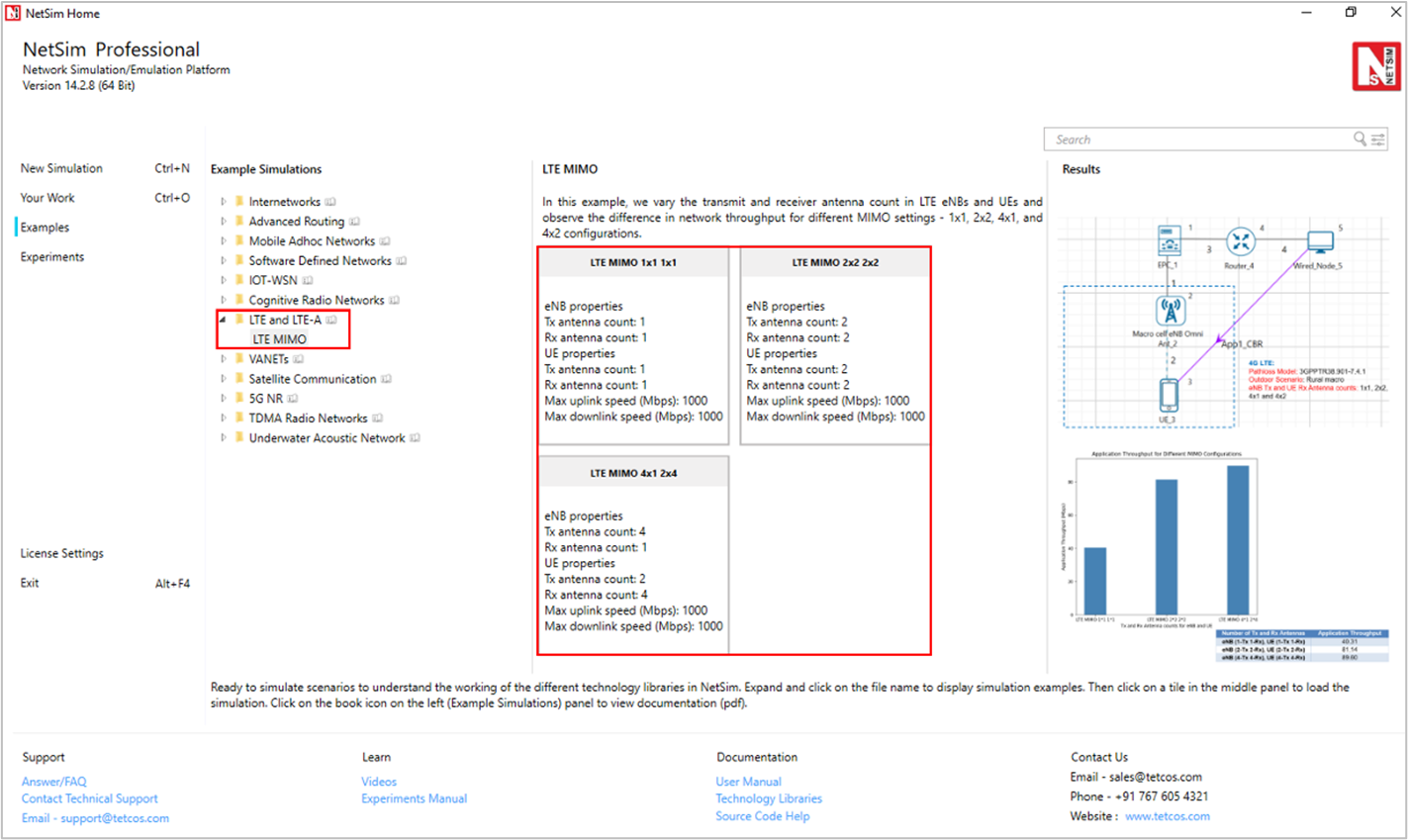

Figure-1: List of scenarios for the example of LTE MIMO

The following network diagram illustrates what the NetSim UI displays when you open the example configuration file as shown Figure-2.

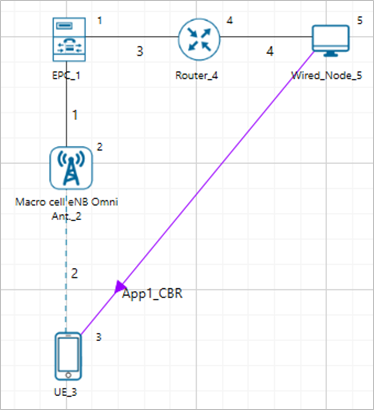

Figure-2: Network set up for studying the LTE MIMO

1. NetSim sets all wired link speeds to 1000 Mbps by default. To do so:

   1. Click on the wired link between the eNB and the EPC and expand the right-side property panel. The Link properties pop-up window appears.

   2. NetSim specifies a value of 1000 in the Max Uplink Speed (Mbps) and Max Downlink Speed (Mbps) fields, with the Uplink BER and Downlink BER set to 0.0000001.

   3. Repeat steps (a) to (c) for the wired links between the EPC , router and the wired node.

2. See that by default, NetSim has created unicast applications and specified some default settings. To do so:

   1. Click on the Set Traffic tab and set CBR application with Source ID as 5.and Destination ID as 3 with 90 Mbps Generation Rate (Packet Size: 1460, Inter Arrival Time: 129.78µs)

   2. Set the start time to 1s.

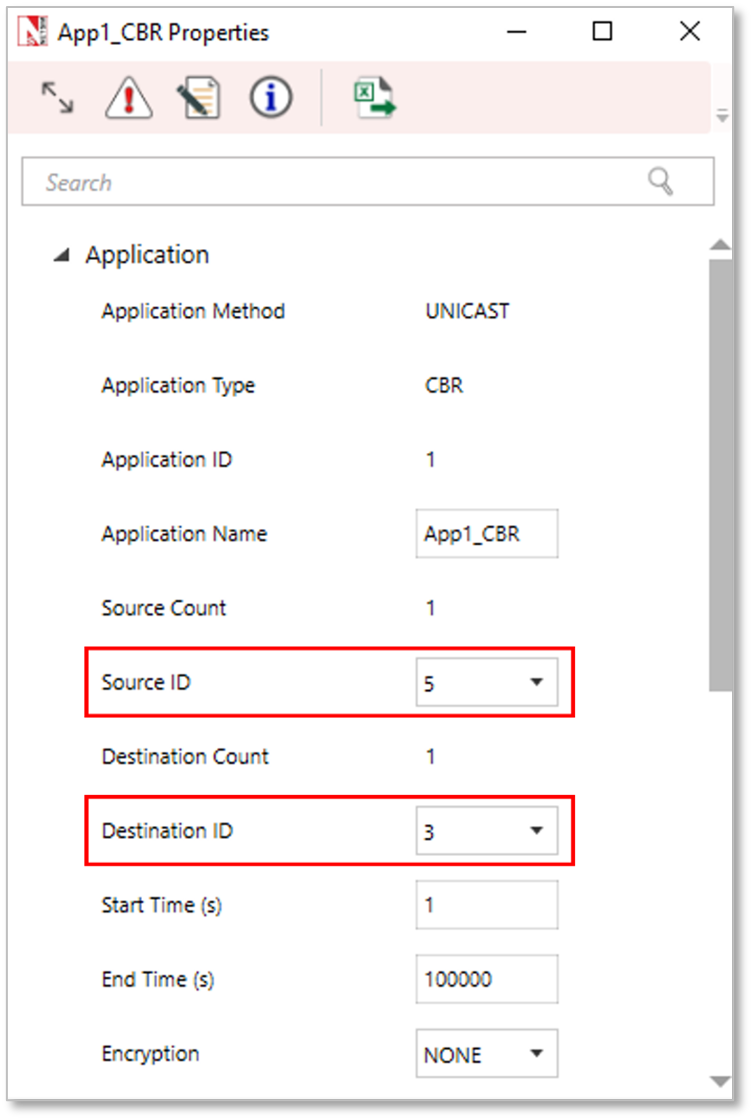

Figure-3: Application properties Window

3. Go to eNB properties 🡪 Interface 2 (LTE) 🡪 Physical layer.

Properties
Component Carrier 1
DL: UL Ratio	4:1
Bandwidth	5 MHz
Component Carrier 2
DL: UL Ratio	4:1
Bandwidth	10 MHz
Antenna
TX Antenna Count RX Antenna Count	1 For Both eNB and UE 1 For Both eNB and UE
Channel Model
Pathloss Model	3GPPTR38.901-7.4.1
Outdoor Scenario	Rural macro
LOS NLOS Selection	User defined
LOS Probability	1
Shadow Fading Model	None
Fast Fading Model	No fading
MIMO Beamforming Model	Array Gain

Table-1: eNB >Interface 2 (LTE) >Physical layer properties

4. Simulate the LTE MIMO. To do so:

   1. Click the Run icon located on the toolbar. The Run Simulation pop-up window appears.

   2. Retain the default settings in the Simulation Configuration tab (Simulation time = 2 Sec).

   3. Click Run.

Results and Discussion

After NetSim simulates the LTE MIMO, NetSim displays the Simulation results window.

To interpret the results, check the values of the throughputs in the Application Metrics Table window. You will see the following throughput values for Application 1 is 40.89 Mbps.

Figure-4: Application Metrics Table in Result window

The Application Throughput (Mbps) column in the table lists the throughput values for different Tx Antennas Count and Rx Antennas Count configurations.

Number of Tx and Rx Antennas Count for eNB and UE	Application Throughput (Mbps)
eNB (1-Tx 1-Rx), UE (1-Tx 1-Rx)	41.41
eNB (2-Tx 2-Rx), UE (2-Tx 2-Rx)	82.79
eNB (4-Tx 1-Rx), UE (2-Tx 4-Rx)	89.60

Table-2: Results Comparison

Plot

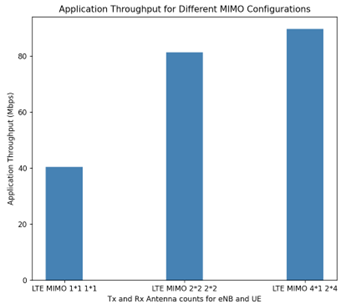

Figure-5:Tx and Rx Antenna counts for eNB and UE vs Throughput

Note: The throughput values may vary depending on the position of the nodes when using different Tx Antennas Count and Rx Antennas Count configurations.

Reference Documents

[2] 3GPP 36 series specifications for Long Term Evolution Networks.

[3] 3GPP TS 36.300 (Rel 10) Section 19.2.2.5

Latest FAQs

You can refer to the up-to-date FAQs about NetSim’s LTE library at https://tetcos.freshdesk.com/support/solutions/folders/14000107855
